105KW 125KW PCS Hybrid Solar Storage Solution with 215KWH 233KWH 261KWH Lithium Battery BESS Outdoors Cabinet
This BESS series solar product integrated solution seamlessly merges a high-efficiency Power Conversion System (PCS) with a high-density, liquid-cooled battery module into a single, robust outdoor-rated enclosure.
Item No :
BESS-P215/BESS-P233/BESS-P261Cooling :
Liquid CoolingCommunication Port :
CAN, RS485Capacity :
215KWH/233KWH/261KWHOutput Voltage :
380V / 400V, Other Voltages CustomizedProtection Class :
IP54Warranty :
10 YearsCertificate :
CEType :
All-in-one105KW PCS output coupled with 215KWH of storage, and a robust 125KW inverter paired with scalable storage options of 233KWH or 261KWH. Our cutting-edge Outdoor Energy Storage Cabinet represents a paradigm shift in commercial and industrial (C&I) power management.

Specification
|
MODEL
|
BESS-P215 |
BESS-P233 |
BESS-P261 |
| Battery Energy(kWh) |
215KWH |
233KWH |
261KWH |
| Rate Power |
105KW |
125KW |
125KW |
| AC Output |
400V, 3L+N+PE, 50Hz/60Hz |
||
| Transfer Time |
≤20ms |
||
| Communication |
RS232/RS485/CAN/BLUETOOTH/ WIFI |
||
|
Cooling Method
|
Liquid Cooling
|
||
|
Storage Temperature Range
|
-20~45°C
|
||
|
Operation Temperature
|
-20~60°C |
||
|
Humidity
|
5%RH~95%RH |
||
|
Altitude
|
≤3000m
|
||
|
Safety System
|
Aerosol
|
||
|
BATTTERY PARAMETERS
|
|||
|
Battery Chemistry
|
LiFePO4
|
||
| Nominal Capacity |
280Ah |
280Ah |
314Ah |
| Composition Method |
1P240S |
1P260S |
|
| Nominal Voltage |
768V |
832V |
|
| Operating Voltage Range |
650~864V |
728-936V |
|
| Efficiency |
>94% (DC side) |
||
| Max Charging Current |
140A |
||
| Max Discharging Current |
140A |
||
| Cycle |
6000 cycles 80%DOD, 0.5C |
||
|
Calendar Life
|
10 years |
||
|
PCS PARAMETERS
|
|||
|
Max DC power
|
126kw/1min |
137kw/1min |
137kw/1min |
| Rate Operating Voltage |
AC 400VAC |
||
| Max AC Current |
167A |
180A |
180A |
| Approved Grid Frequency Range |
50/60Hz |
||
| AC Harmonic Voltage |
<3% (linear load) |
||
|
Voltage Deviation
|
<5% (linear load) (phase<3%) |
||
| MECHANICAL SPECIFICATIONS | |||
|
Machine Dimension (W*H*D)(mm)
|
1460*2203*1400 |
||
| N.W(kg) |
≈2500 |
≈2600 |
≈2750 |
| IP Grade |
IP55 |
||
|
Certification & Standards
|
CB, CE, EMC, UN38.3, RoHs |
||
Product Description

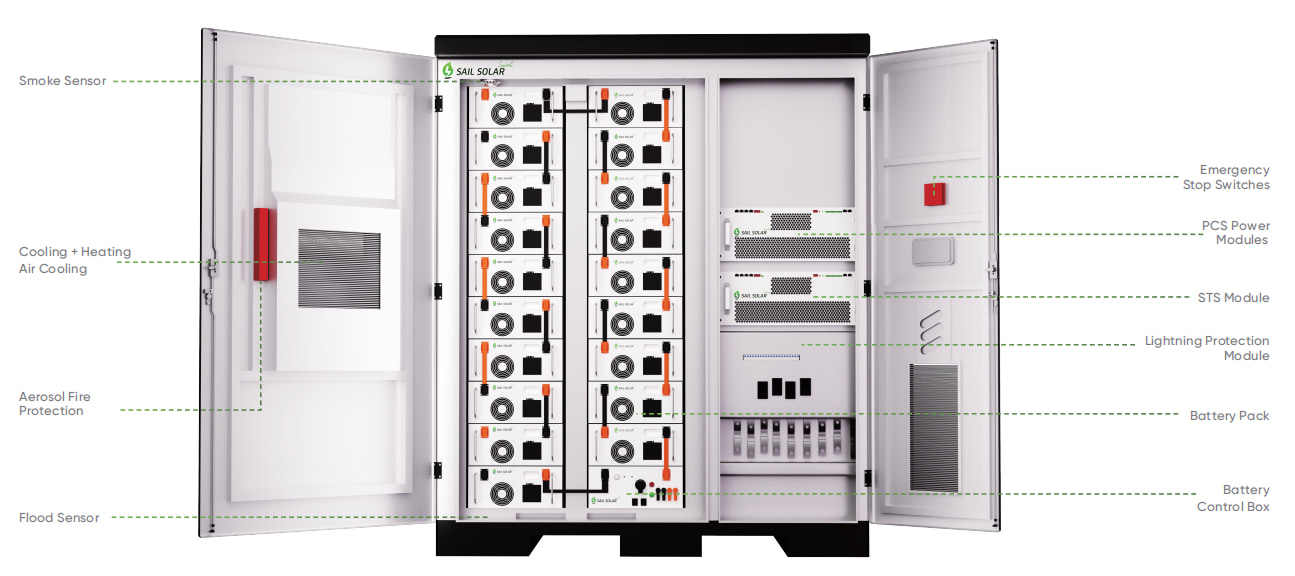

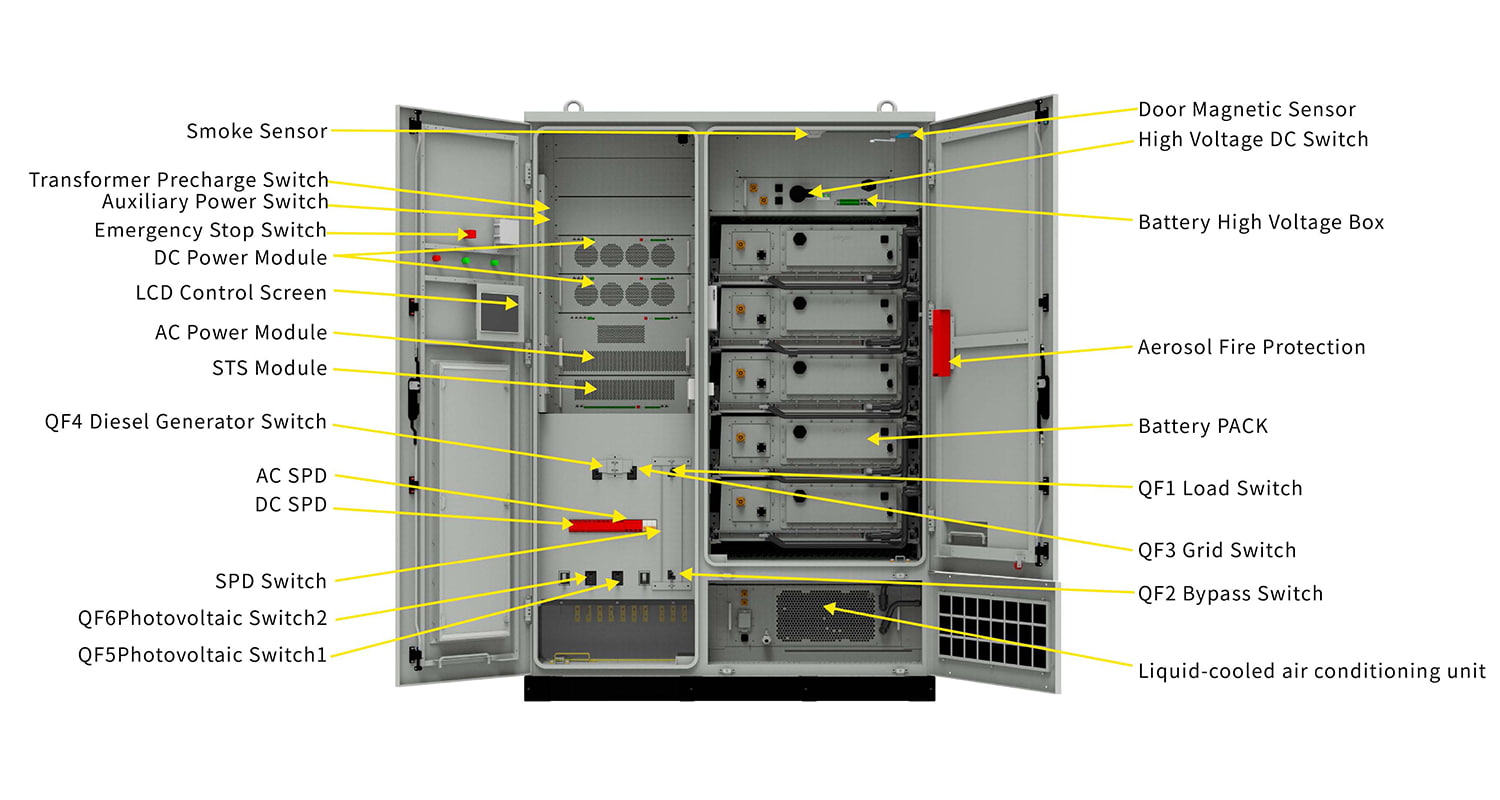

System Configuration & Integration
Our All-in-One Outdoor Energy Cabinet is a pre-integrated, utility-grade power solution engineered for simplicity and performance. The system's core components are seamlessly housed within a single, robust enclosure:
Unified Power & Storage Core: The system features a tightly integrated Power Conversion System (PCS) and a High-Voltage Battery Bank. This eliminates external compatibility issues and reduces installation time from weeks to days. Choose from a 105KW or 125KW bi-directional inverter, pre-synced with a scalable LiFePO4 battery for 215KWH, 233KWH, or 261KWH of usable energy.
Advanced Thermal Management: An integrated Liquid Cooling System ensures optimal temperature control for the battery cells. This technology maximizes cycle life, guarantees consistent performance even under peak loads, and enhances safety—all while operating quietly and efficiently.
Intelligent Energy Control System: At the heart of the system is a built-in Energy Management System (EMS). This smart controller autonomously manages energy flow, enabling peak shaving, time-of-use optimization, and backup power readiness without requiring complex external setups.

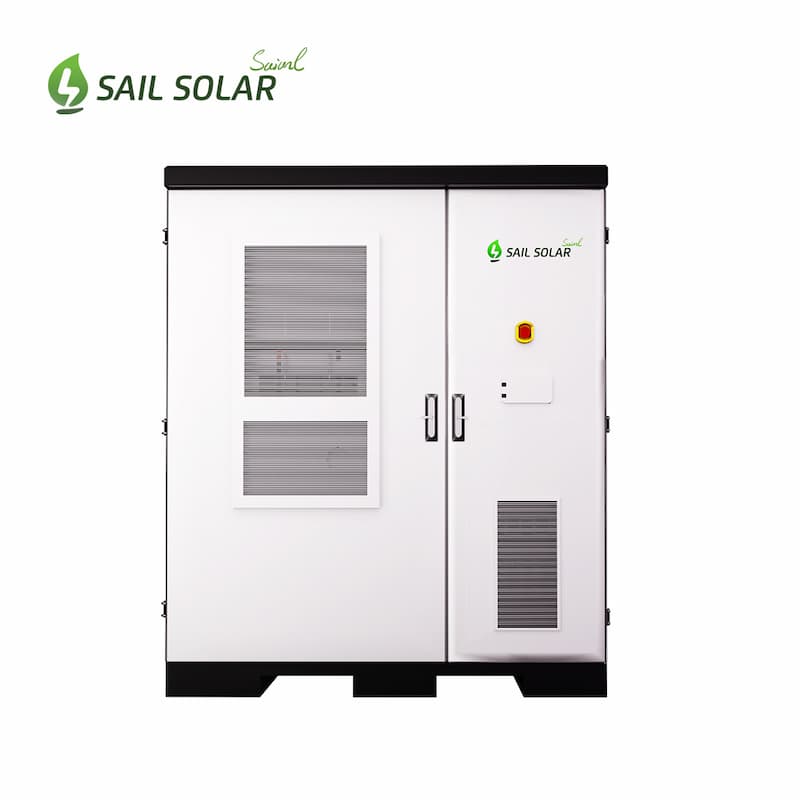

Rugged and Durable Cabinet: Every component is protected by an Outdoor cabinet with IP54 protection, designed to withstand harsh environmental conditions. The system arrives pre-assembled and pre-tested, offering a true "plug-and-play" experience for a fast and reliable deployment.

Smart & Automated Operation

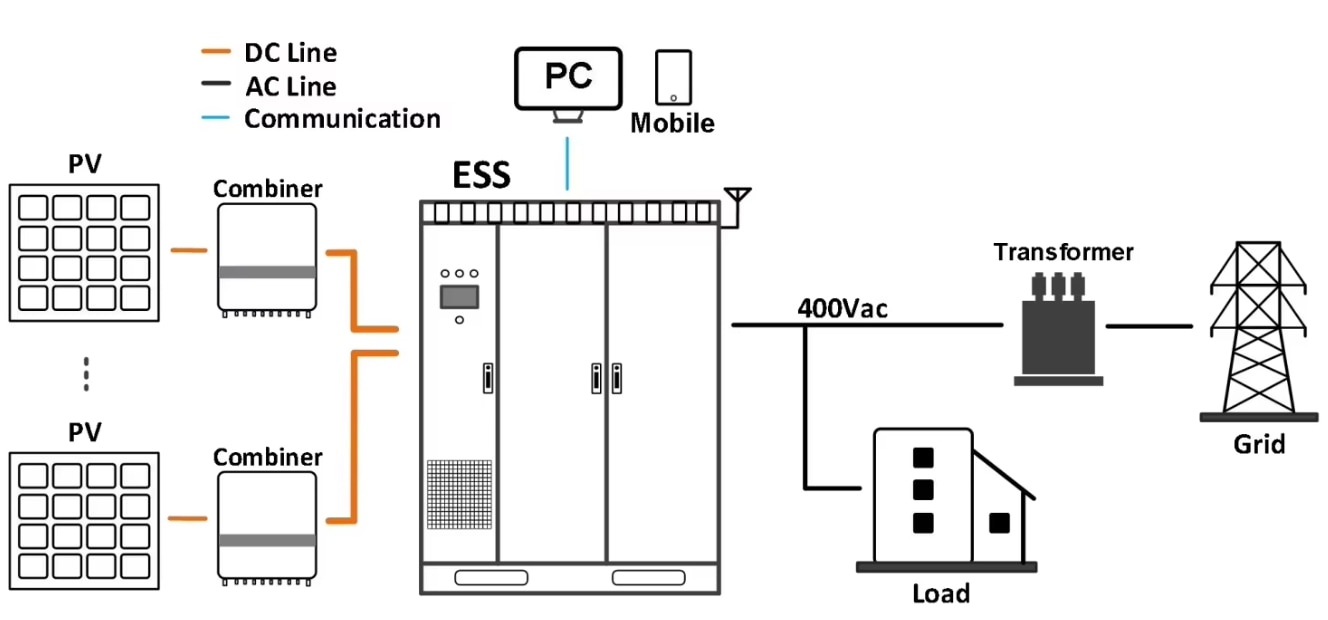

Our all-in-one energy cabinet operates as an autonomous power hub. It intelligently shifts between three key modes to maximize savings and ensure reliability:
Solar Optimization: Directs solar power to your loads, storing excess energy and using it to shave costly peak demand.
Cost Arbitrage: Automatically charges from the grid during low-rate periods and powers your facility during high-cost hours.
Instant Backup: Provides seamless, uninterrupted power for critical loads within milliseconds of a grid outage.
