220V Single-phase Solar Power Inverter 6Kw 48V Hybrid Energy Storage Inverters Parallel Supported

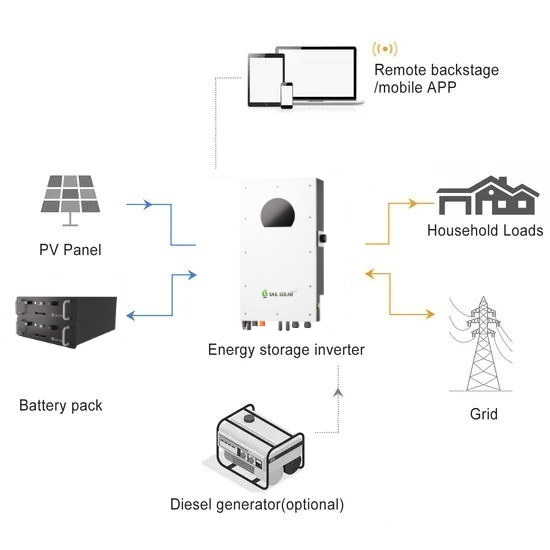

The Helios-6KLP1-EU is a versatile hybrid inverter that supports parallel operation of up to 9 units for scalable power solutions. It features dual outputs for intelligent load management and enables seamless switching between two independent AC sources.
Item No :
Helios-6KLP1-EUParallel :
9 UnitsMax Power :
6000WOutput Voltage :
220V,230VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Type :
Hybrid AC/DC InverterUsers can program energy supply priorities from PV, battery, or grid to optimize self-consumption and grid feed-in. Equipped with dual built-in MPPT trackers, it ensures highly efficient solar power harvesting. This system offers flexible and reliable energy management for diverse residential or commercial applications.
|
MODEL |
Helios-6KLP1-EU
|
|
Maximum Pv Input Power |
9000 W
|
|
Rated Output Power |
6000 W
|
|
Maximum Charging Power |
6000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
500 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
80 VDC / 150 VDC
|
|
MPP Voltage Range
|
120 VDC ~ 400 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / 18A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
Output Voltage Range
|
184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable)
|
|
Nominal Output Current
|
26A
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
60 - 80 VAC / 180 VAC
|
|
Acceptable Input Voltage Range
|
90 - 280 VAC or 170 - 280 VAC
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
Efficiency (DC to AC)
|
93%
|
|
BATTERY & CHARGER
|
|
|
Nominal DC Voltage
|
48 VDC
|
|
Maximum Solar Charging Current
|
120 A
|
|
Maximum AC Charging Current
|
120 A
|
|
Maximum Charging Current
|
120 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
192 x 385 x 665
|
|
Net Weight (kgs)
|
28
|
|
INTERFACE
|
|
|
Parallel Function
|
Yes, 9 units
|
|
Communication Port
|
USB or RS-232/Dry Contact/RS485/Wi-Fi
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-10°C to 50°C
|
|
PROTECTION & CERTIFICA TE
|
|
|
Safety
|
IEC 62109, IEC 62116, IEC 61727, IEC 61683
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105, G99, TOR Erzeuger Typ A
|
Helios-6KLP1-EU: Smart, Scalable Solar Power
This single-phase hybrid inverter is your key to a efficient and resilient energy system for home or business.
-High Power & Efficiency: 6000W output with up to 8000W; PV input and 95% MPPT efficiency for maximum solar utilization.
-Dual Operation Modes: Functions seamlessly in grid-tie and off-grid settings for uninterrupted power.
-Intelligent Control: Programmable energy priorities and comprehensive 48V battery management with safety protection.
-Smart Connectivity: Built-in Wi-Fi, USB, and RS485 for easy remote monitoring and control.
-Certified Reliability: Fully compliant with international safety and EMC standards for guaranteed peace of mind.

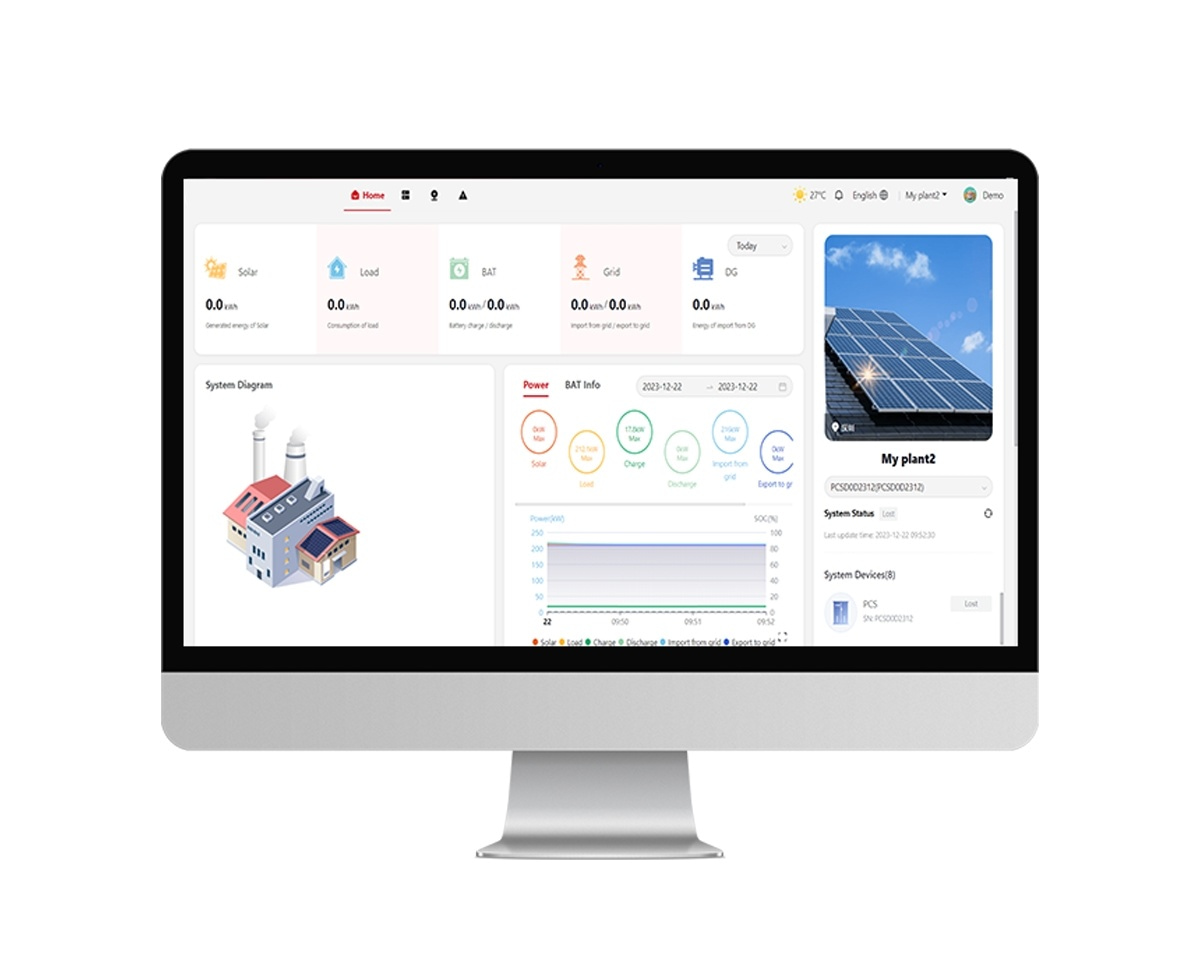

Wifi Monitoring
The Helios-6KLP1-EU puts the power of monitoring in your hands. Its advanced system doesn't just harvest energy
>it tracks and analyzes it.
>Monitor power output, voltage ranges, and environmental conditions in real time to ensure optimal performance.
>Built to endure harsh conditions, this inverter provides reliable, data-driven insights for your residential or commercial system. Maximize your return on investment through continuous performance tracking and intelligent optimization.
