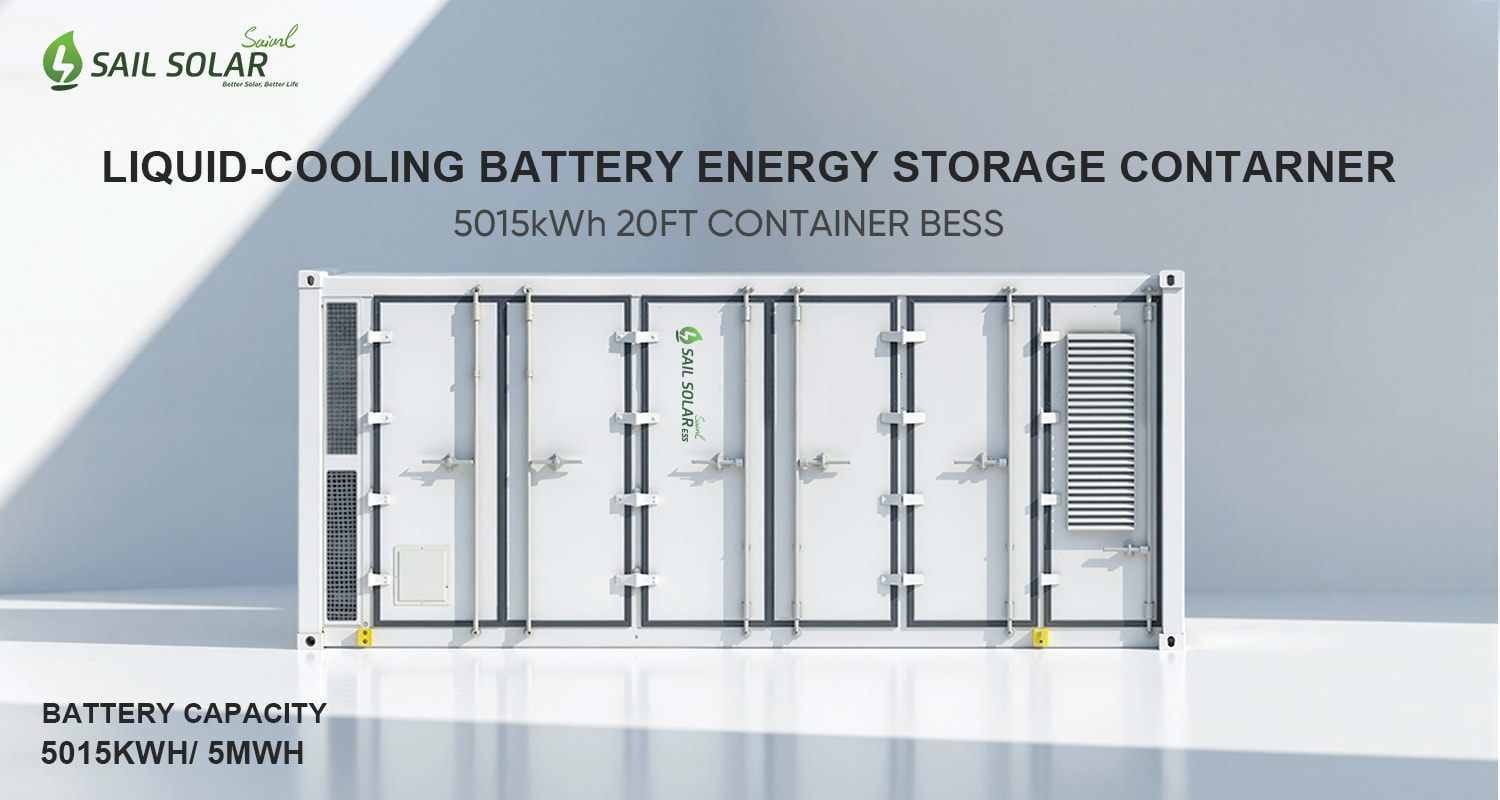

5MWH 20FT Liquid Cooled LFP Battery Container 8000 Cycles for Utility Solar Storage
The 5MWh Liquid-Cooled Energy Storage Container is a high-capacity, modular energy storage solution designed to enhance grid stability, optimize energy use, and support renewable energy integration.
Item No :
5MWH Liquid Cooling Battery ContainerBattery Type :
LiFePO4Cooling :
Liquid CoolingCapacity :
5015KWHOutput Voltage :
380V / 400V, Other Voltages CustomizedCell&Method :
1331.2V 314Ah, 1P12SProtection Class :
IP55Warranty :
10 YearsSail Solar 5MWh Liquid-Cooled containerized energy storage system operates at a rated voltage of 1331.2V, Utilizing Lithium Iron Phosphate (LFP) batteries with a rated capacity of 5.015MWh, this system provides a safe, reliable, and long-lasting power storage option for industrial and commercial applications.

Specification
|
DC Side
|
||
|
Battery Type
|
LFP314Ah | |
| System Grouping |
1P416S*12 (Converged Access External Centralized PCS)
|
|
|
Rated energy
|
5015kWh (100%DOD,(25±2)℃,0.5P)
|
|
|
Rated capacity
|
3768Ah (314Ah×12)
|
|
|
Rated voltage
|
DC1331.2V
|
|
|
Voltage range
|
DC1040.0~1518.4V
|
|
|
Recommended operating voltage
|
DC1164.8~1497.6V
|
|
|
Auxiliary power supply parameters
|
||
| Power rating |
<45kW
|
|
|
Voltage range
|
AC380V±10%
|
|
|
Frequency
|
50/60Hz
|
|
|
Mode of connection
|
3P4W
|
|
|
System parameter
|
||
|
Energy conversion efficiency
|
≥94%
|
|
|
Charge-discharge rate
|
0.5P
|
|
|
Depth of discharge
|
95%DOD(25±2℃)
|
|
|
Levels of protection
|
IP54 | |
|
Cooling Method
|
Active liquid cooling
|
|
|
Relative humidity
|
0~95%RH
|
|
|
Fire extinguisher system
|
PACK class and above aerosol fire extinguishing
|
|
|
Communication interface
|
Ethernet/RS485/CAN
|
|
|
Meet a criterion
|
GB/T36276 、 GB/T 34120 、 GB/T34131 、 UN3536 、 UL9540A 、IEC
62619、IEC63056、IEC62477、IEC62933、IEC61000
|
|
Product Description

Each liquid-cooled energy storage container has a rated installed capacity of 5015 kWh, consisting of 1241 kWh liquid-cooled battery clusters, one vertical 60 kW liquid-cooled chiller unit, one aerosol fire suppression system, one environmental control system, and one container-grade EMS control system.
Applications:
Renewable Energy Integration – Stores surplus solar energy for stable, on-demand power supply.
Peak Load Shifting – Reduces electricity costs by shifting energy consumption from high-demand to off-peak periods.
Industrial & Commercial Backup Power – Ensures uninterrupted operations during grid outages.
Microgrids & Remote Areas – Delivers reliable electricity in off-grid or unstable grid environments.

System Wiring Connection
This 5mwh solution is ideal for peak shaving, load shifting, renewable energy integration, and backup power applications.
>Modular & Scalable Design: Each battery cluster consists of 4 battery packs and one high-voltage box. Each battery pack is composed of 3.2V 314Ah cells arranged in a 1-parallel 104-series configuration, which allows for flexible capacity expansion, simplifying system design for commercial, industrial, and utility-scale projects.
>Integrated Safety Design: Each pack is equipped with a Manual Service Disconnect (MSD) and Fuse Unit (FU), enabling safe maintenance and rapid fault protection at the pack level.
>High Reliability: Designed for continuous operation with robust thermal stability, ensuring consistent performance in demanding grid-tied or off-grid environments.

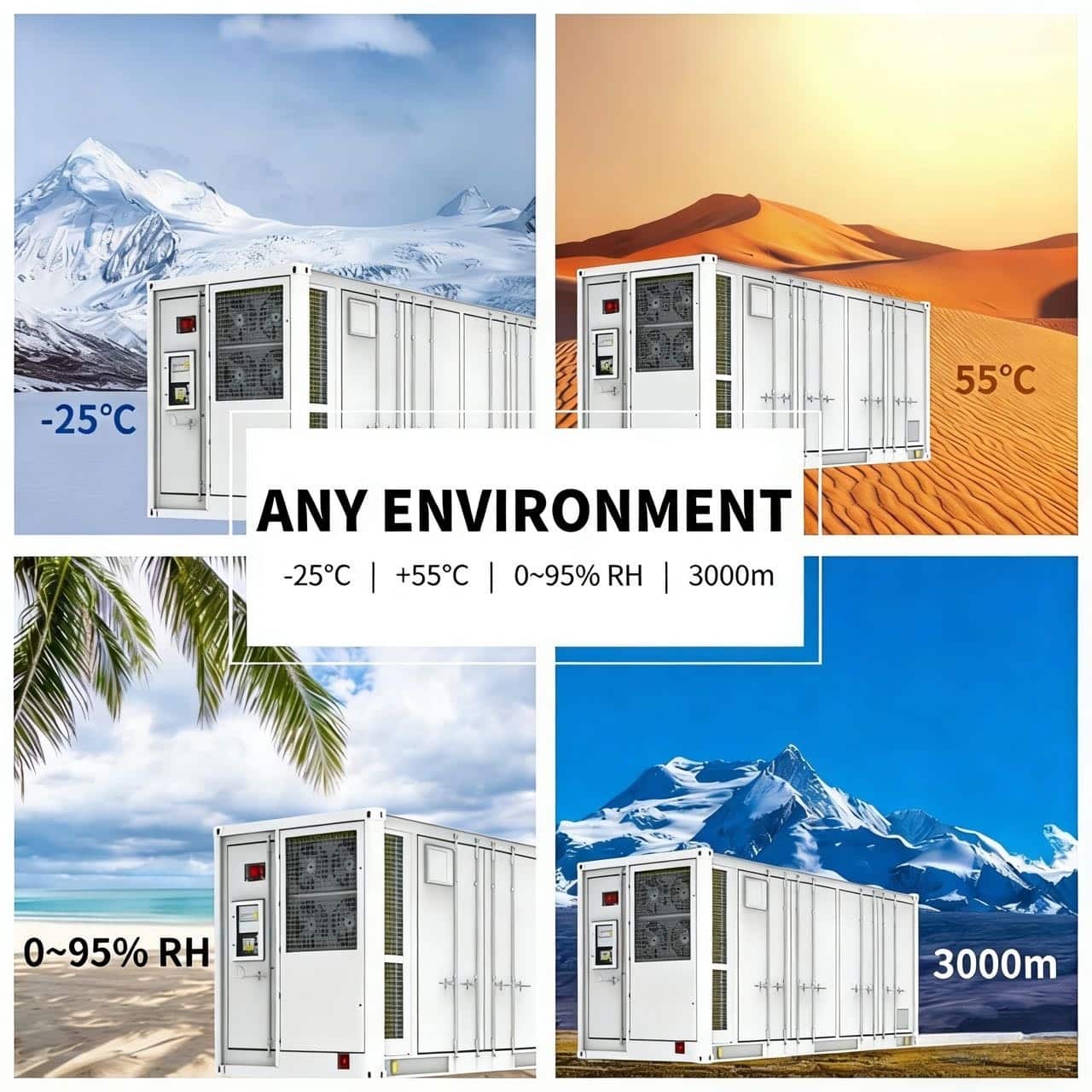

Our liquid-cooled containerized energy storage system is engineered to perform in the toughest environments—from -25°C sites to +55°C desert solar farms, from 0% arid climates to 95% coastal humidity, and at altitudes up to 3000m.

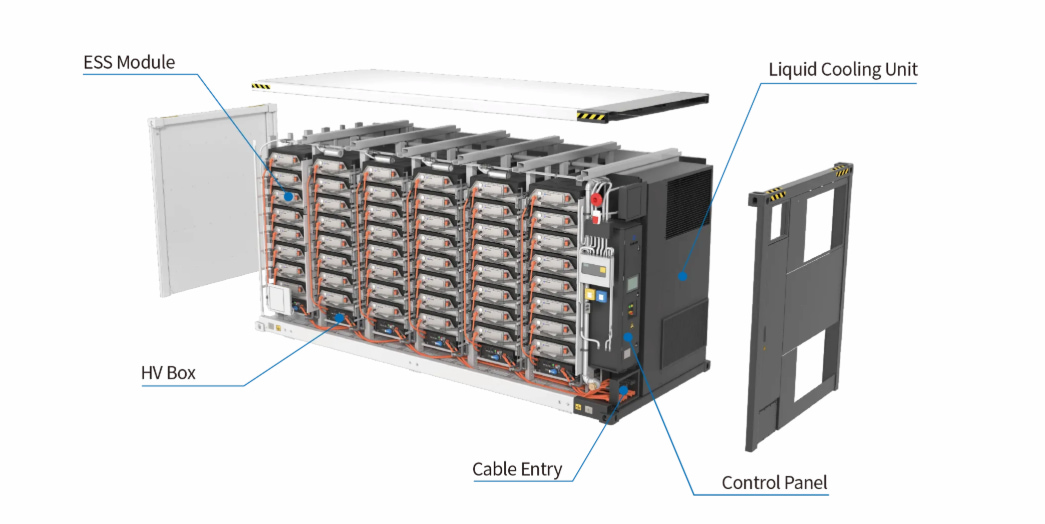

Every container comes fully equipped with:
>60kW Vertical Liquid Cooling Unit – Actively manages cell temperature differentials, ensuring superior cycle life and safety.
>Aerosol Fire Suppression System – fire protection with zero residue, automatically activated.
>Dynamic Environment Monitoring System – 24/7 surveillance of temperature, humidity, smoke, water leakage, and security status.
