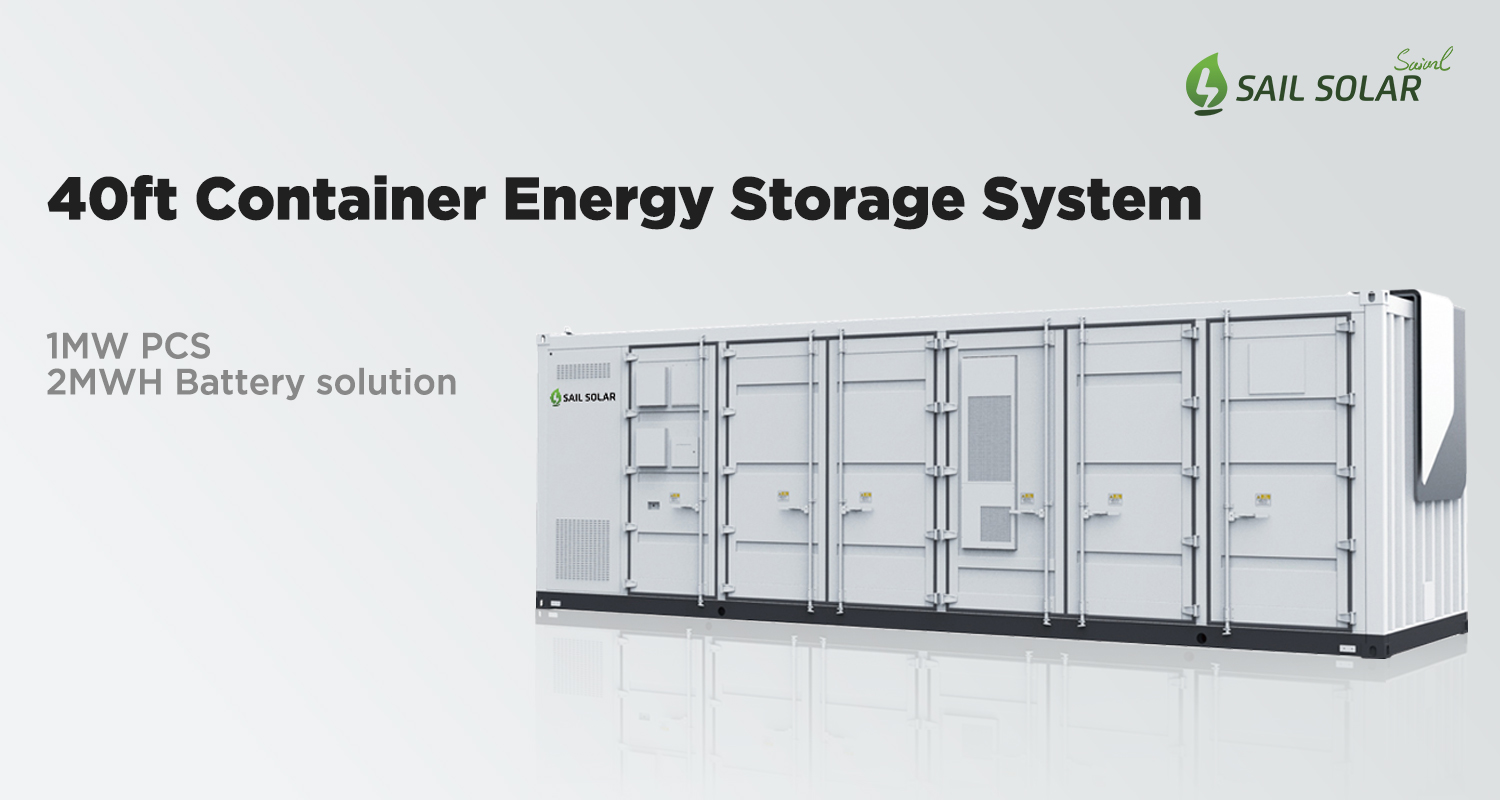

Sail Solar 40FT Battery Container Energy Storage Solution with 1MW PCS and 2000KWH Lithium Battery

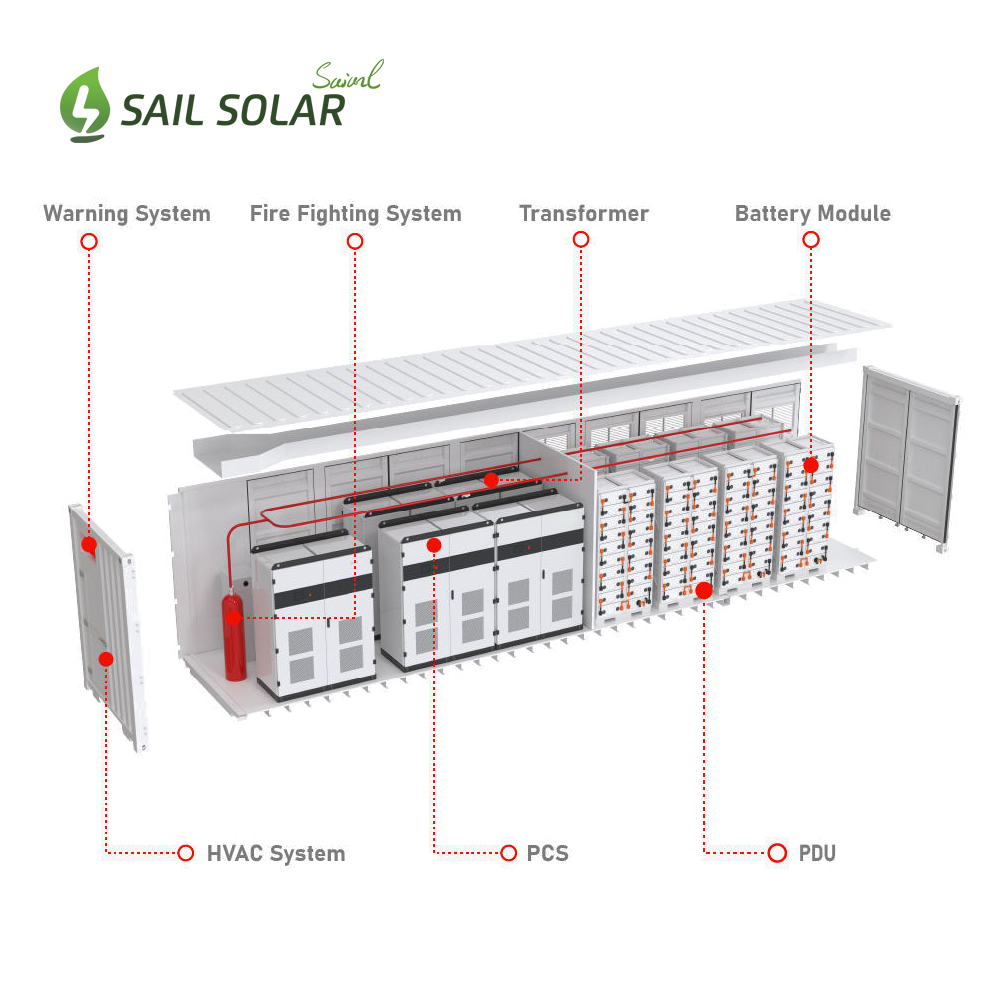

This 40-foot container energy storage system (ESS) features an integrated cabin design, with its core housing two 500kW power conversion systems (PCS) and 2000kWh high-capacity lithium battery packs. It integrates the battery management system (BMS), energy management system (EMS), intelligent temperature control, fire alarm, and other functional units, offering convenient deployment, safety and stability, and efficient charging and discharging capabilities.
Item No :
BESS-P2000Battery Type :
LiFePO4Solar Inverter :
500KW PCS InverterCooling :
Air Cooling/ Liquid CoolingCapacity :
1MW/ 2000KWHOutput Voltage :
380V / 400V, Other Voltages CustomizedProtection Class :
IP54Warranty :
10 YearsThe 40-foot containerized energy storage system, equipped with 1MW PCS and 2MWh high-voltage lithium batteries, is factory-assembled and ready for immediate use upon arrival. Integrating high power, large capacity, rapid deployment, and high security. It is perfectly suited for industrial and commercial peak shaving and valley filling, renewable energy grid connection, and backup power scenarios. With a mature container design, provides a stable and reliable one-stop large-capacity energy storage solution.

Specification
|
MODEL
|
BESS-I1000
|
|
| Battery cluster (kwh) | 2007kWh | |
| PCS | 500kW (Megarevo, Atess, Sinexcel, etc) | |
| Battery management system | Three-tier architecture (BMU, BAU, BCU) High voltage box 200A |
|
| Control cabinet | 1KVA UPS, 500W 24V power supply, 630A DC molded case circuit breaker | |
| Protection level | IP54 | |
| Cooling method | Air cooling (refrigeration, ventilation, heating) | |
| Fire protection system | Integrated | |
| Communication | RS485,CAN | |
Product Description

Battery module
Using Lifepo4 cells from leading brands such as EVE and REPT, with a single pack capacity of 16.07kWh and a total capacity of 980kWh / 1200kWh, and the cycle life over 8000 cycles.
PCS (Power Conversion System)

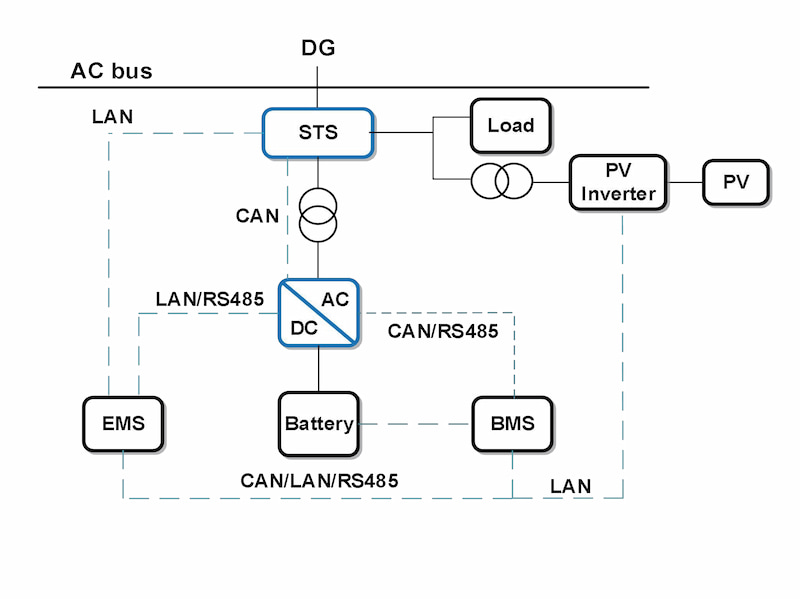

It enables bidirectional conversion between DC power from the battery and AC power from the grid/load. Simultaneously, it stabilizes voltage and frequency, regulates charging and discharging power, and receives commands from the BMS to ensure safe and stable system operation.
EMS (Energy Management System)
Overall scheduling of all equipment, including batteries, PCS, and distribution cabinets. It intelligently controls charging and discharging strategies based on grid demand, electricity prices, or load conditions, monitors operational status in real time, uploads data, and enables system safety protection, energy consumption optimization, and remote scheduling.

Bidirectional Energy Conversion: Achieves bidirectional conversion between DC and AC power via PCS, enabling charging and energy storage during periods of low electricity prices or surplus photovoltaic power, and discharging to supply power during peak demand or grid failures.
Photovoltaic Synergistic Optimization: Works in conjunction with the photovoltaic system to smooth out fluctuations in photovoltaic output, store excess photovoltaic energy, and improve the utilization rate of renewable energy.
Backup Power Guarantee: Provides uninterrupted power to critical loads through rapid switching in the event of grid or diesel generator (DG) failures via STS static transfer switch.
