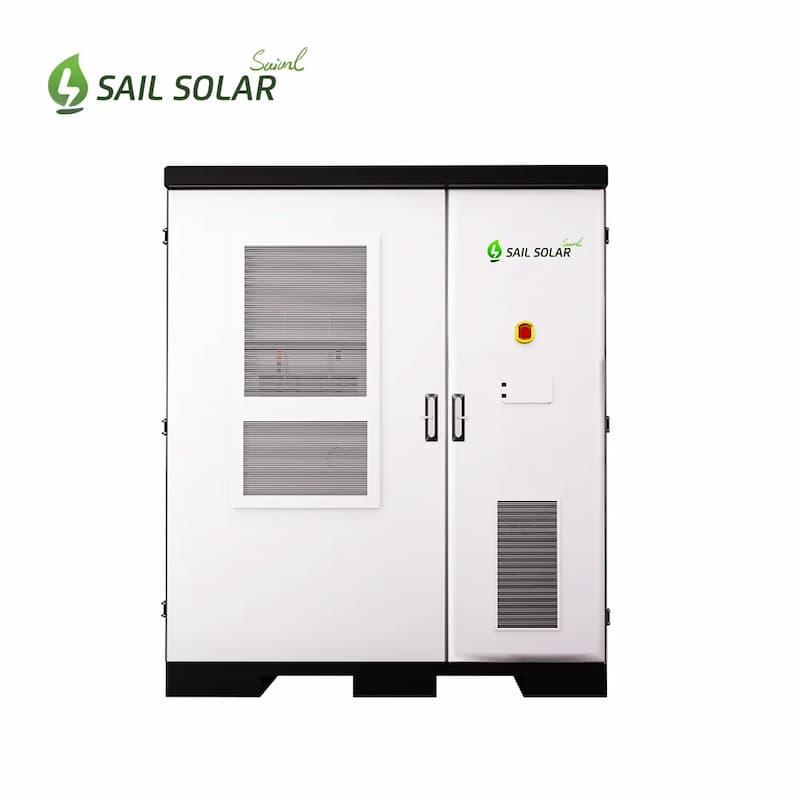

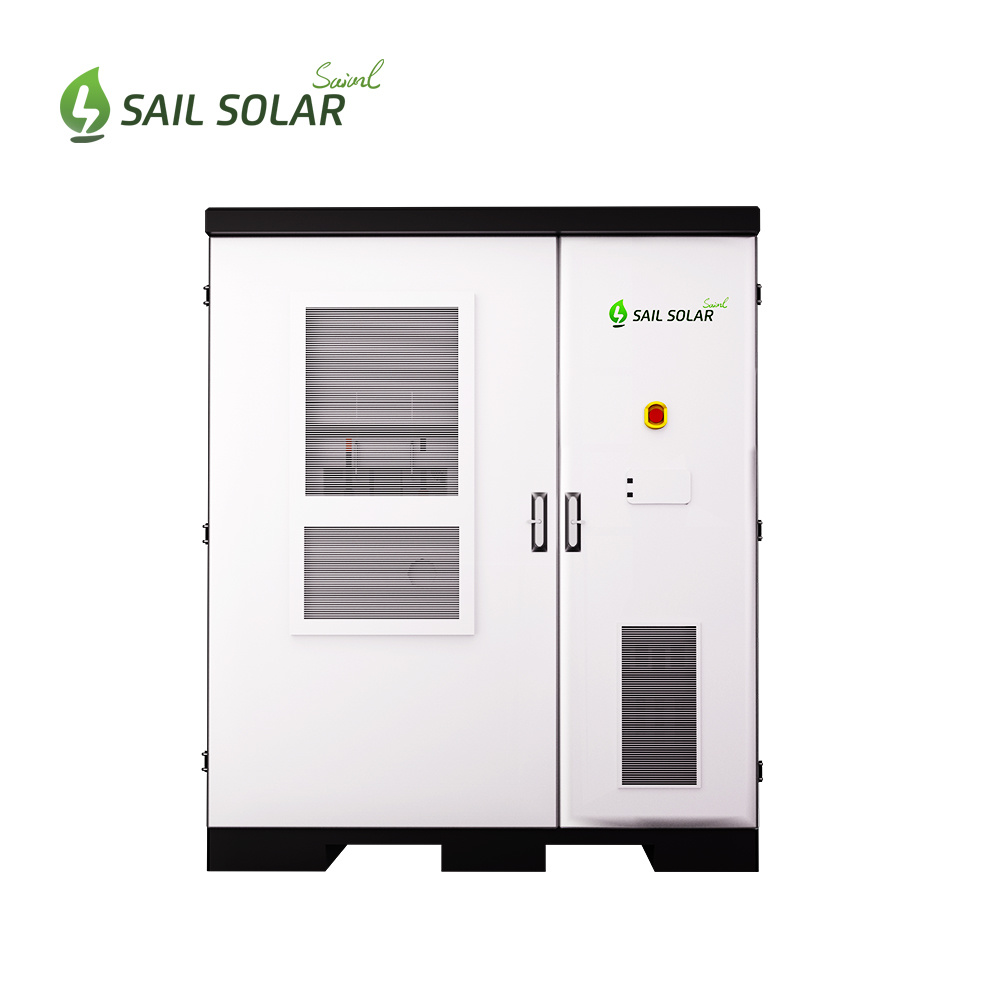

Commercial Industrial All In One Outdoor Cabinet Battery Energy Storage System 100Kwh 215Kwh
Combining robust energy storage and intelligent management, this solution centers on a 100kWh LiFePO4 battery with a two-layer BMS and digital LCD display, paired with a versatile 50kW solar inverter. The inverter ensures stable operation with its wide voltage input, grid voltage adjustment, and three-phase unbalanced solution. From the IP54 protected outdoor cabinet with integrated air-cooling, lighting, and fire control to the comprehensive energy management system, every component is designed for reliable performance
Payment :
T/T, L/C, Western UnionShipping Port :
ShanghaiRated Output Power :
50kW / 100kWCooling :
Air Colling / Liquid CoolingCommunication Port :
CAN, RS485Grid Connection :
Hybrid GridCapacity :
100kWh / 215kWhOutput Voltage :
380V / 400V, Other Voltages CustomizedProtection Class :
IP65Battery Type :
LiFePO4Warranty :
10 YearsCertificate :
CEType :
All-in-oneItem No. :
SAS-50kW 100kWh / SAS-100kW 215kWhIt is a one-stop integration system that comprises 100kWh LiFePO4 battery storage system with two-layer battery management system and a fully digital LCD display, a 50kW storage solar inverter with wide voltage input range and systems for grid voltage adjustment, three-phase unbalanced solution. The IP54 protection degree outdoor cabinet is equipped with air-cooling equipment, lighting, power distribution, fire control, and other accessories, and an energy management system.

Specification
|
MODEL
|
SAS-50kW 100kWh |
SAS-100kW 215kWh |
|
Battery Specification
|
|
|
| Battery Type |
Lithium-ion |
|
| Configuration |
7 modules + 1 BPU |
15 modules + 1 BPU |
| Rated Capacity/Voltage/Energy |
280Ah/358.4V/100.352kWh |
280Ah/768V/215.04kWh |
| Voltage Range |
313.6-403.2V |
672-864V |
| Rated Charge/Discharge |
0.5C
|
|
| Solar Inverter Specification | ||
|
PV String Input Data
|
||
|
Max. DC Input Power (W)
|
65000
|
130000
|
|
Max. DC Input Voltage (V)
|
1000
|
|
|
Start-up Voltage (V)
|
180
|
|
|
MPPT Range (V)
|
150-850
|
|
|
Full Load DC Voltage Range (V)
|
450-850
|
|
|
Rated DC Input Voltage (V)
|
600
|
|
|
PV Input Current (A)
|
36+36+36+36
|
|
|
Max. PV I (A)
|
55+55+55+55
|
|
|
No.of MPP Trackers
|
4
|
|
|
No.of Strings per MPP Tracker
|
2
|
|
|
AC Output Data
|
||
|
Rated AC Output and UPS Power (W)
|
50000 |
100000 |
|
Max. AC Output Power (W)
|
55000 |
110000 |
| AC Output Rated Current (A) |
75.8/72.5 |
|
| Max. AC Output Current (A) |
83.4/79.7
|
|
|
Max. Three-phase Unbalanced Output Current (A)
|
83.3
|
|
| Max. Continuous AC Passthrough (A) |
150
|
|
|
Peak Power (Off Grid)
|
1.5 time of rated power, 10 S
|
|
|
Generator Input/Smart Load/AC Couple Current (A)
|
75.8 / 150 / 75.8
|
|
|
Power Factor Adjustment Range
|
0.8 leading to 0.8 lagging
|
|
| Output Frequency and Voltage |
50/60Hz; 3L/N/PE 220/380, 230/400Vac
|
|
| Grid Type |
Three Phase
|
|
|
Total Harmonics Current Distortion (THDi)
|
<3% (of nominal power)
|
|
| DC Current Injection |
<0.5% In
|
|
| Battery Input Data |
|
|
| Max. Charging Current (A) |
50+50
|
|
| Max. Discharging Current (A) |
50+50
|
|
| Number of Battery Input |
2
|
|
| Charging Strategy for Li-Ion Battery |
Self-adaption to BMS
|
|
Product Description

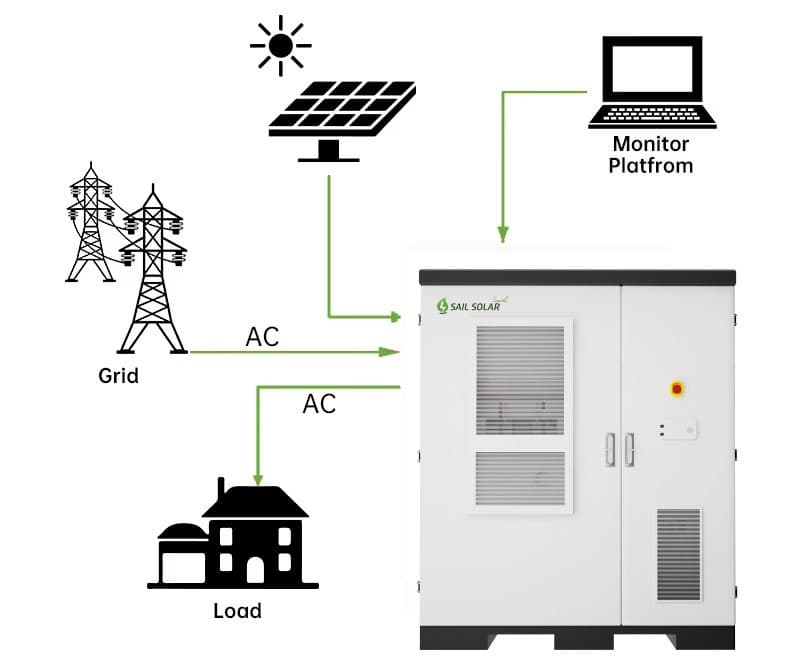

The All In One energy storage container offers a battery capacity of 100Kwh and 215kWh, making it an ideal solution for large-scale commercial energy storage needs. The system integrates energy storage inverter, battery, fire protection, refrigeration, friendly grid adaptability, accepts grid dispatching, carries out active and reactive power compensation, supports peak shaving and valley filling, demand-side response, assists new energy grid integration and other applications. The lP55 protection level fits in harsh outdoor environments.
The cabinet fully considers the impact of harsh outdoor environment on the equipment, and adopts high-strength anti-corrosion materials to resist the erosion of wind, rain and snow; the internal battery module adopts special sealing technology to ensure normal operation under extreme temperatures.

The mainstream 280Ah battery cell is selected. The battery management system has the functions of voltage and temperature collection and balanced control of each battery cell. It adopts a dedicated chip design for battery management, receives control commands through daisy chain communication, and reports the collected data to ensure the cycle life and safety of the battery.
The built-in energy storage inverter adopts advanced digital control technology, optimizes the control function, improves the system reliability, is suitable for the charging and discharging of various batteries, adopts a modular structure design, and is easy to install and maintain. This system plays a vital role in balancing the load of the power grid and improving the efficiency of energy use.
