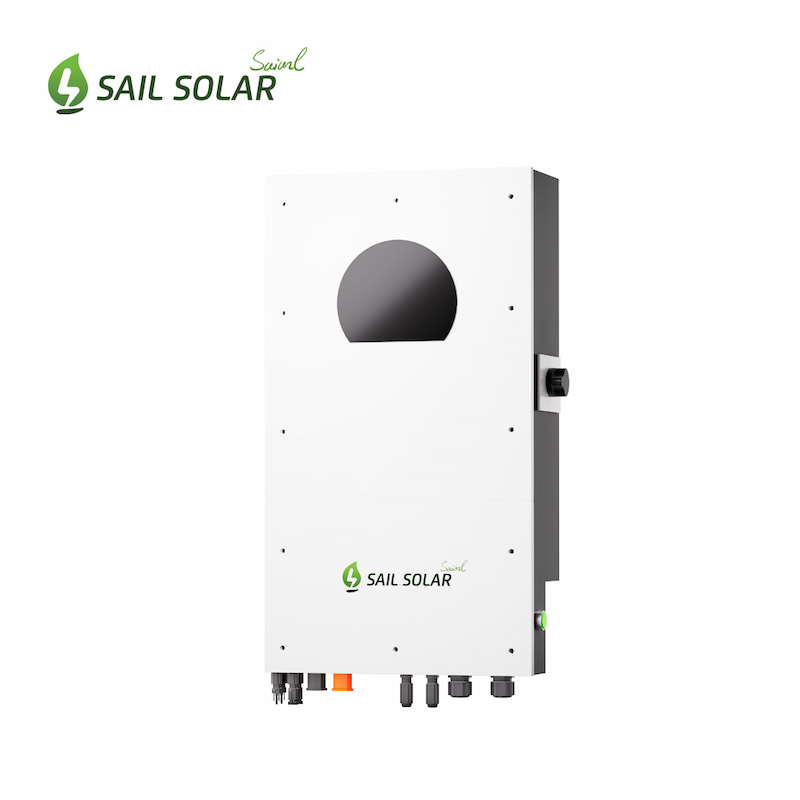

Good Quality Hybrid Solar Power Inverter 6Kw Single Phase Energy Storage Hybrid Battery Inverters
Helios-6KLP1-EU hybrid inverter supports parallel operation of up to 9 units, features dual outputs for smart load control, automatically connects and switches between two independent AC power sources.
Item No :
Helios-6KLP1-EUParallel :
9 UnitsMax Power :
6000WOutput Voltage :
220V,230VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP65Type :
Hybrid AC/DC InverterHelios-6KLP1-EU hybrid inverter enables self-consumption and grid feed-in, allows programmable supply priority among photovoltaic (PV), battery, or grid, and incorporates built-in 2 Maximum Power Point Trackers (MPPT).
|
MODEL |
Helios-6KLP1-EU
|
|
Maximum Pv Input Power |
9000 W
|
|
Rated Output Power |
6000 W
|
|
Maximum Charging Power |
6000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
500 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
80 VDC / 150 VDC
|
|
MPP Voltage Range
|
120 VDC ~ 400 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / 18A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
Output Voltage Range
|
184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable)
|
|
Nominal Output Current
|
26A
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
60 - 80 VAC / 180 VAC
|
|
Acceptable Input Voltage Range
|
90 - 280 VAC or 170 - 280 VAC
|
|
Maximum AC Input Current
|
40 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
220/230/240 VAC
|
|
Efficiency (DC to AC)
|
93%
|
|
BATTERY & CHARGER
|
|
|
Nominal DC Voltage
|
48 VDC
|
|
Maximum Solar Charging Current
|
120 A
|
|
Maximum AC Charging Current
|
120 A
|
|
Maximum Charging Current
|
120 A
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
192 x 385 x 665
|
|
Net Weight (kgs)
|
28
|
|
INTERFACE
|
|
|
Parallel Function
|
Yes, 9 units
|
|
Communication Port
|
USB or RS-232/Dry Contact/RS485/Wi-Fi
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH (Non-condensing)
|
|
Operating Temperature
|
-10°C to 50°C
|
|
PROTECTION & CERTIFICATE
|
|
|
Safety
|
IEC 62109, IEC 62116, IEC 61727, IEC 61683
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105, G99, TOR Erzeuger Typ A
|
Built to endure and designed to perform, the Helios-6KLP1-EU hybrid inverter redefines reliability. Its industry-leading IP65-rated enclosure offers superior protection against dust and water, ensuring uninterrupted operation in the most demanding environments—from sandy areas to regions with heavy rainfall.
Take Command of Your Energy, Day and Night

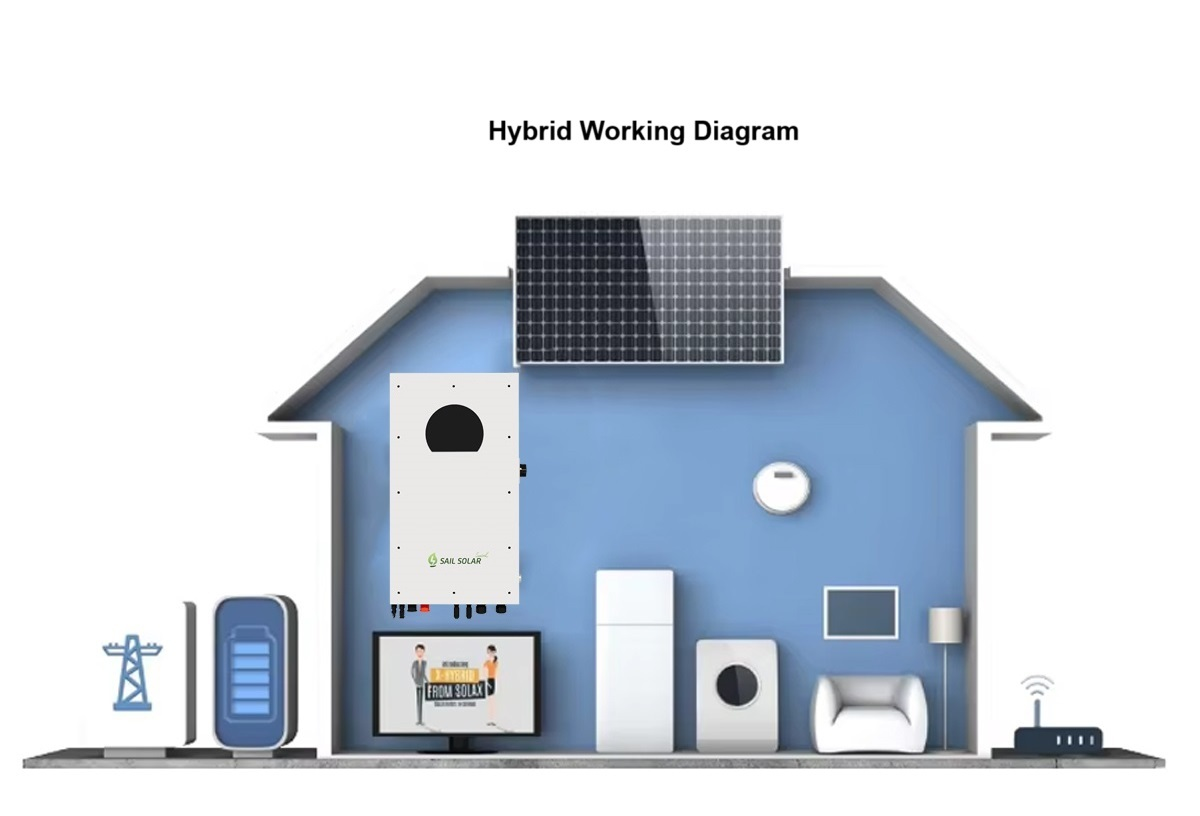

Gain unparalleled control with user-programmable energy source priorities. Seamlessly manage your power flow between PV, battery, and the grid through intuitive software settings. This allows you to tailor energy strategies to your specific needs, maximizing self-consumption around the clock and significantly reducing your electricity costs.
Key Features for Smarter Power Management:
Dual MPPT Trackers: Maximize energy harvest from your solar arrays with two independent MPPT trackers, ensuring optimal efficiency even with complex roof layouts or partial shading.
Automatic Source Switching: Ensure a continuous power supply with the ability to connect and automatically switch between two independent AC sources.
Remote Configuration: Adjust charging currents for different power sources with ease, directly from the built-in LCD interface or conveniently via your mobile device.

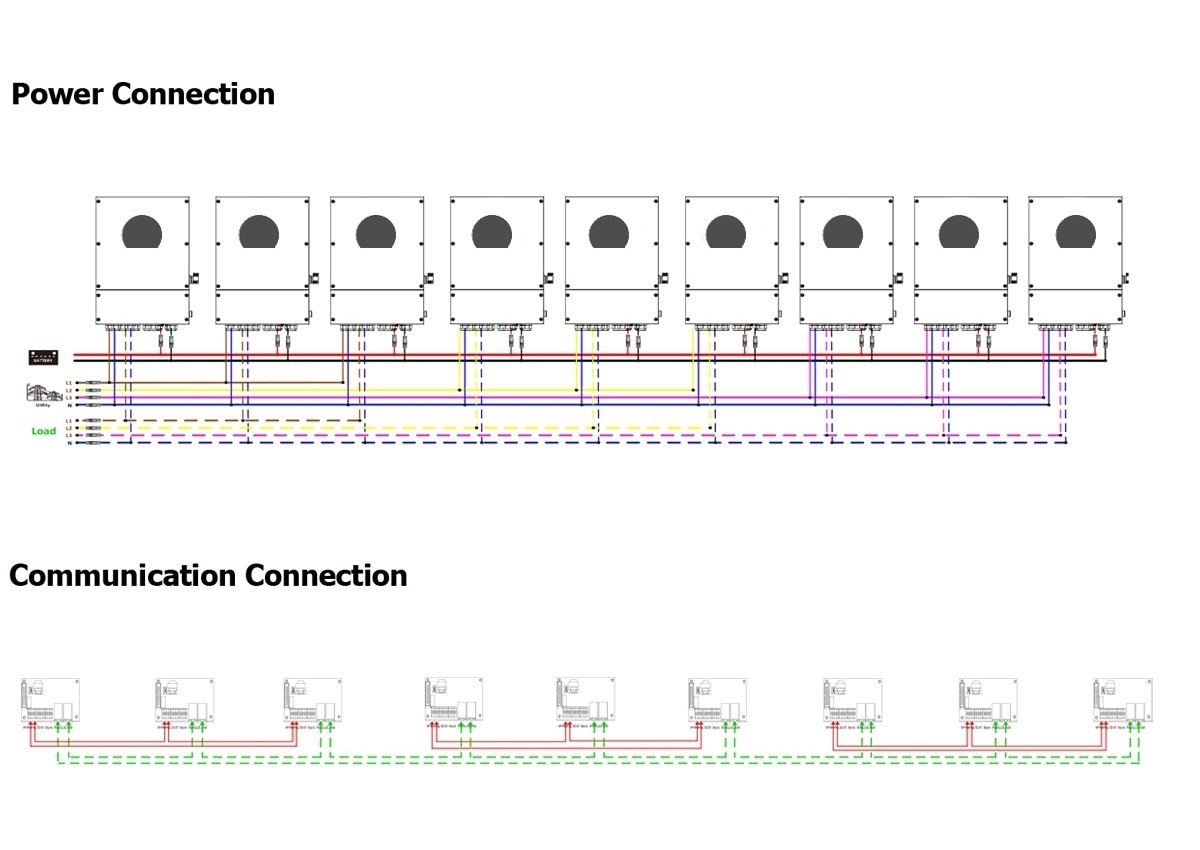

Helios series single phase 6Kw hybrid solar inverter can support max 9pcs in Parallel, you can connect the machine to single phase or three phase according to your needs.
Features:
High Reliability: Ensure continuous operation with redundant systems.
Scalability: Easily expand your system as needed.
Optimized Efficiency: Maximize energy conversion and reduce wastage.
Cost Effective: Save on long-term maintenance and energy bills.
User-Friendly: Simple installation and hassle-free management.
Eco-Friendly: Promote sustainability and reduce your carbon footprint.
