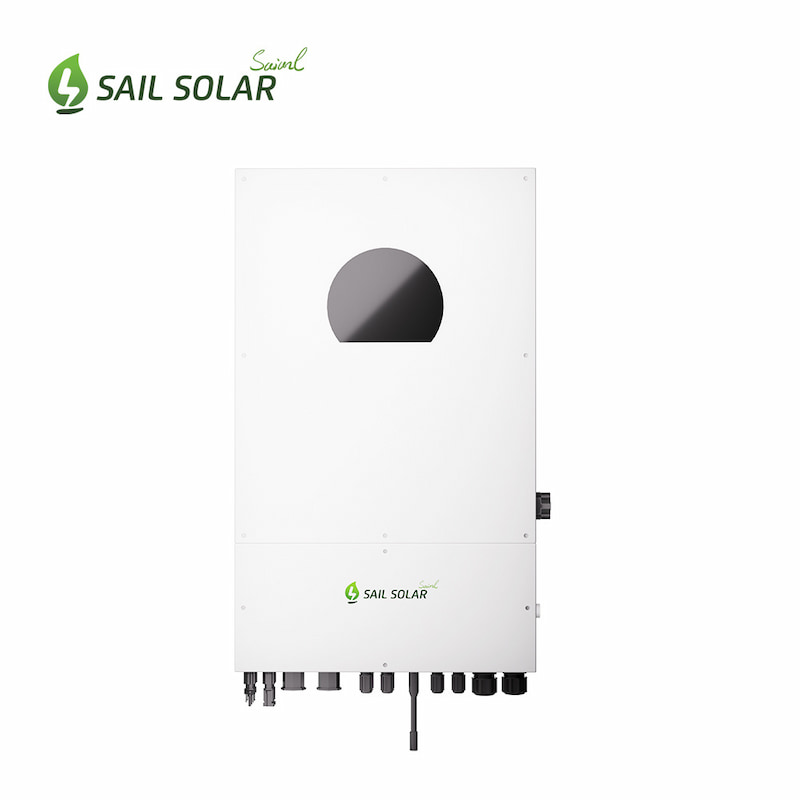

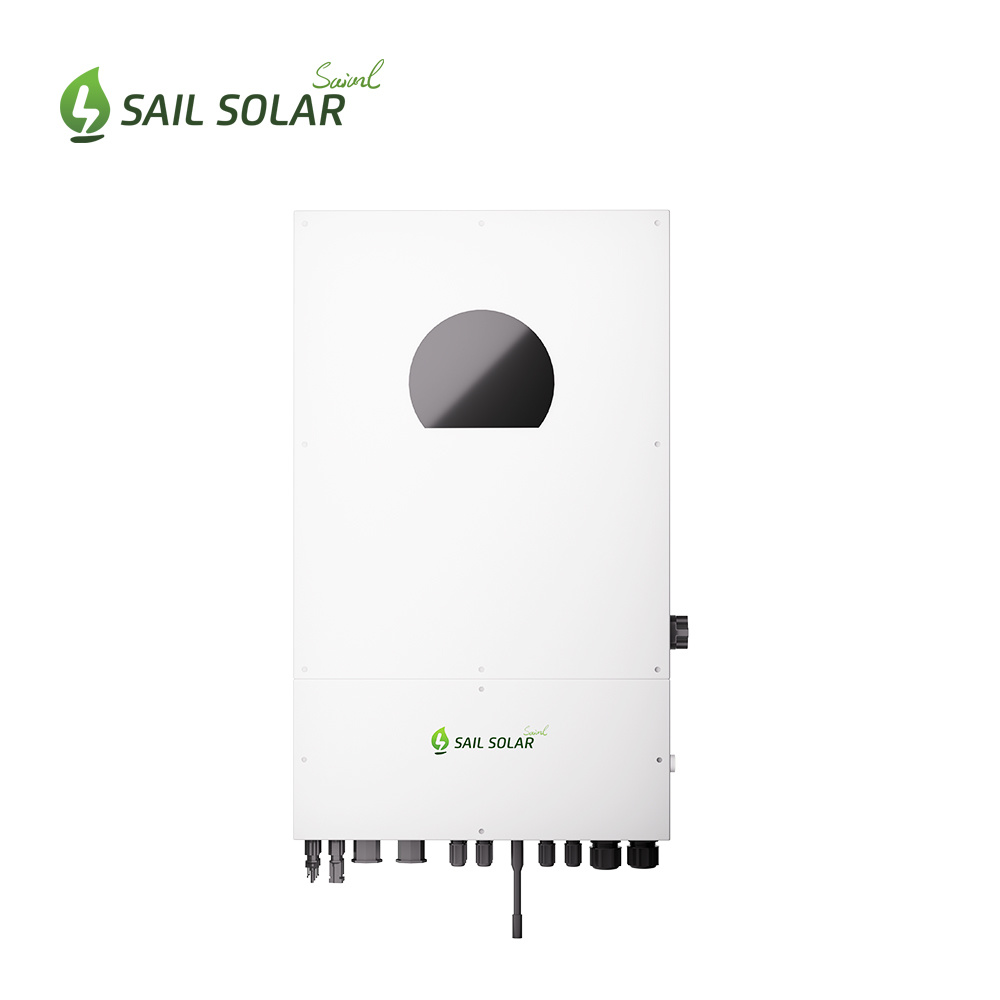

Home Split Phase Hybrid Solar Inverter 6Kw 6Kva Energy Storage Inverters With Parallel Function
The Helios-6KLV-US split-phase 120V/240V hybrid solar inverter features an IP65 waterproof and dustproof design and supports multiple input/output options. Up to six devices can be connected in parallel, making it a scalable and versatile option for the home.
Item No :
Helios-6KLV-USParallel :
6 UnitsMax Power :
6000WBattery Voltage Range :
42-62 VOutput Voltage :
120V/240VWarranty :
5 YearsCommunication :
BMS (RS485)Protection :
IP65Order MOQ :
2Type :

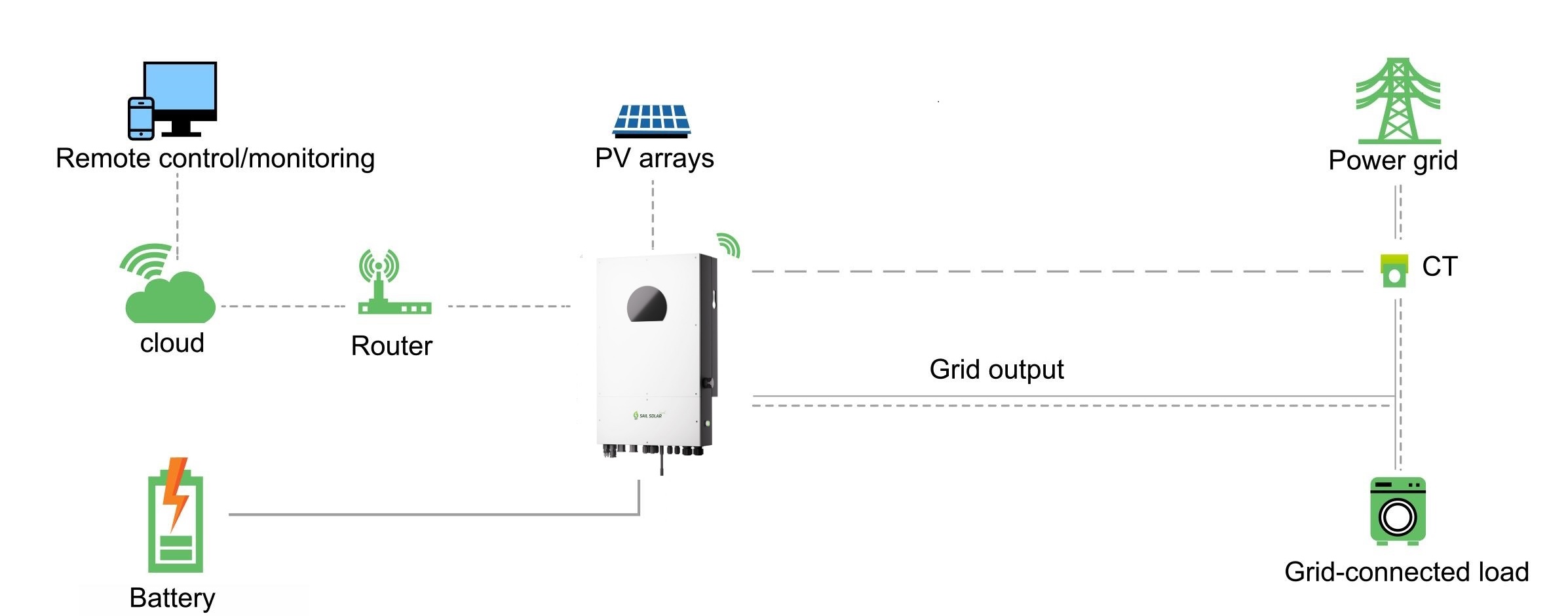

Hybrid AC/DC InverterThe Helios-6KLV-US split-phase hybrid inverter power management system is renowned for its versatility. It accepts a second input power source compatible with a generator and can be optionally equipped with an external current transformer (CT) sensor for 100% self-sufficiency. The inverter's built-in battery management system (BMS) communication port (RS485) ensures seamless integration with products from leading Chinese lithium-ion battery manufacturers, while user-adjustable charging current and voltage allow for personalized settings to optimize energy storage performance.
Specification
|
MODEL |
Helios-6KLV-US
|
|
Maximum Pv Input Power |
7500 W
|
|
Rated Output Power |
6000VA/6000W
|
|
Maximum Charging Power |
6000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
600 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
120VDC / 160 VDC
|
|
MPP Voltage Range
|
120 VDC ~ 550 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / 15A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
110 VAC (P-N) / 220 VAC (P-P)
|
|
Output Voltage Range
|
97-132VAC(P-N) / 194VAC-264VAC(P-P)
|
|
Nominal Output Current
|
27.3 A per phase
|
| Power Factor |
0.9 lag to 0.9 lead |
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
85VAC(P-N), 170VAC(P-P) / 90VAC(P-N), 180VAC(P-P)
|
|
Acceptable Input Voltage Range
|
85 - 140 VAC (P-N)/ 170 - 280 VAC (P-P)
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
Maximum AC Input Current
|
30 A per phase
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
110 VAC (P-N) / 220 VAC (P-P)
|
|
Efficiency (DC to AC)
|
91%
|
|
BATTERY & CHARGER
|
|
|
Nominal DC Voltage
|
42-62 VDC
|
|
Maximum Solar Charging Current
|
120 A
|
| Maximum AC Charging Current |
120 A |
| Maximum Charging Current |
120 A |
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
215.5 x 515 x 700
|
|
Net Weight (kgs)
|
41
|
|
INTERFACE
|
|
|
Parallel Function
|
Parallel Function
|
| Communication Port |
RS232, RS485, WI-FI, USB
|
|
ENVIRONMENT
|
|
|
Protection Degree
|
IP 65
|
|
Operating Temperature
|
-25°C to 60°C (>45°C derating)
|
With ingress protect of IP65, Helios-6KLV-US split -phase hybrid solar inverter is fully protected dust, airborne particles whilst and water jets which makes it suitable for use both in the indoor and harsh outdoor environment. It supports multiple input & output split phase 208/240vac. The solar inverter is also offering a second terminal for the users choice as a generator input or a programmable output.
This cutting-edge 6kw i nverter is a multifunctional hybrid solar inverter, capable of supporting even the most robust home power systems with a rated power of 6000W and the ability to handle PV arrays of up to 75 00W. This high-tech inverter is easily installed, and comes equipped with an in-depth LCD touch screen interface for enhanced monitoring and a smoother user experience, as well as 2 MPPT inputs .

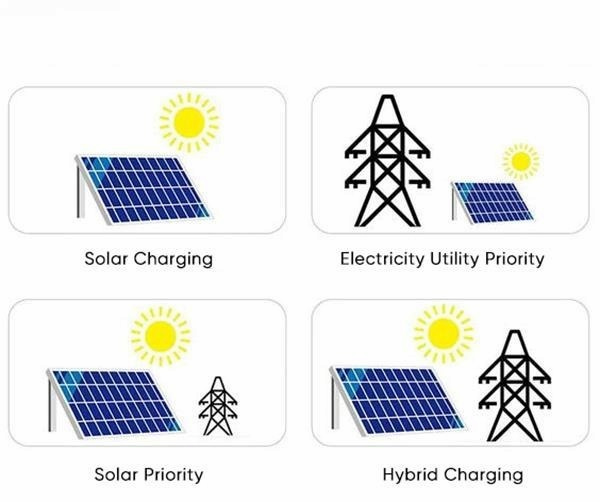

Plus, the inverter supports a variety of working modes and system configurations, so whether you’re looking to enhance your home’s on-grid solar system, or upgrade your homestead’s off-grid backup system, this inverter can handle a wide range of home power applications. You can meet your power needs and protect your home against unstable grids and rolling blackouts, while seeing huge savings each month on your electric bill.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
