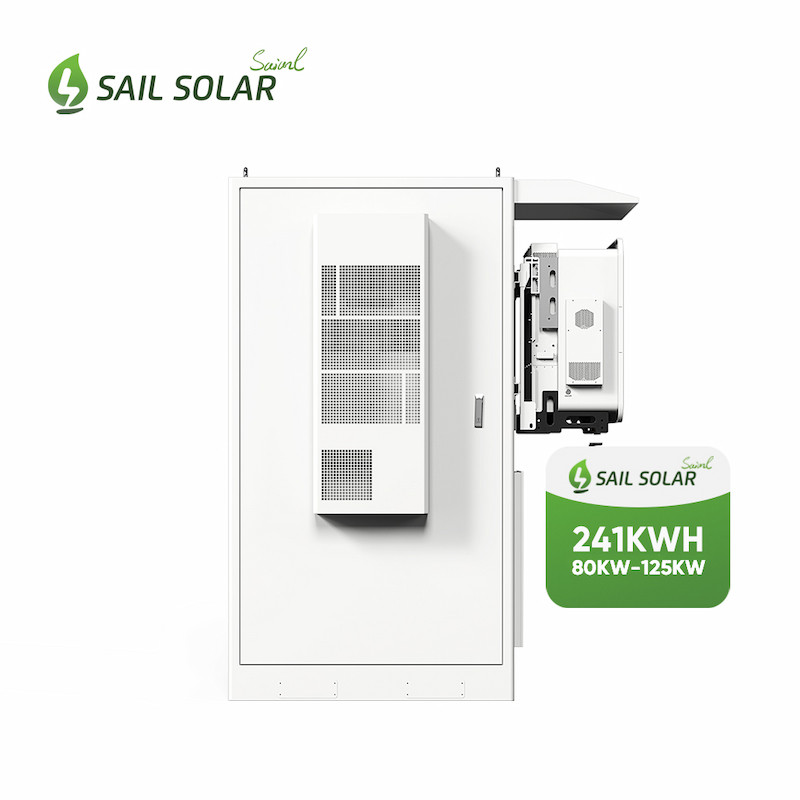

Customized Outdoors 241KWH Lithium Battery Cabinet with Optional Deye Solis Hybrid 80KW 125KW Inverter Energy Storage Solution

Customized Outdoors 241KWH Lithium Battery Cabinet with Optional Deye Solis Hybrid 80KW 125KW Inverter Energy Storage Solution

With the development of the times, the demand for energy storage in industry and commerce has become a global trend. This energy storage device is suitable for both off-grid and grid-connected applications, providing uninterrupted energy supply to the equipment. It is easy to install and its integrated design makes it an ideal choice.

  • Item No :

    BESS-I241
  • Battery Type :

    LiFePO4
  • Battery :

    241KWH
  • Rated Output Power :

    80-125KW
  • Cooling :

    Air Cooling
  • Communication Port :

    CAN, RS485
  • Protection Class :

    IP54
  • Warranty :

    10 Years
  • Certificate :

    CE

The all-in-one cabinet provides reliable energy management with a 241kWh LiFePO4 battery and an optional 80-125kW hybrid inverter. It supports grid stability through voltage regulation and three-phase balance, while built-in air-cooling, fire protection, and a central EMS ensure safe, optimized operation.

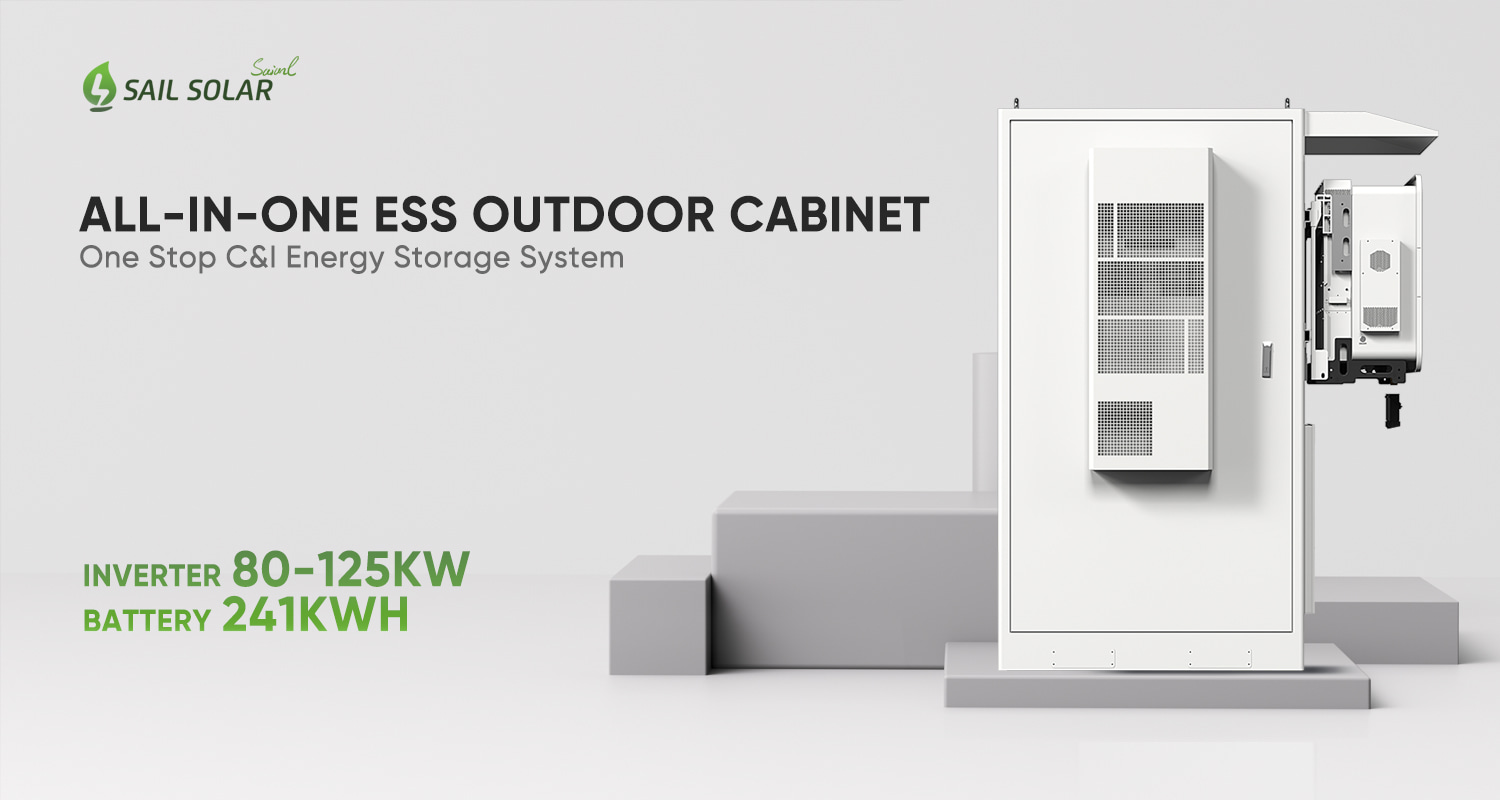

100KWH Battery Storage Cabinet

Specification



MODEL

BESS-I241

Type
Battery: 241kWh /Inverter: 80-125kw
Battery Cell

Lithium-ion

Battery Pack

LFP314Ah

Rated Voltage(V)

51.2V 314Ah

Rated Energy(KWH)

768V(15module in series)

Inverter
Solis or Deye
Rated Grid Voltage (V) 380V
Size: W*D*H (mm)
1300*1260*2375
Weight (KG)
2500
Protection Level
IP54
Cooling Method
Air cooling (refrigeration, ventilation, heating)
Fire Protection System
Integrated
Communication
RS485,CAN

Product Description

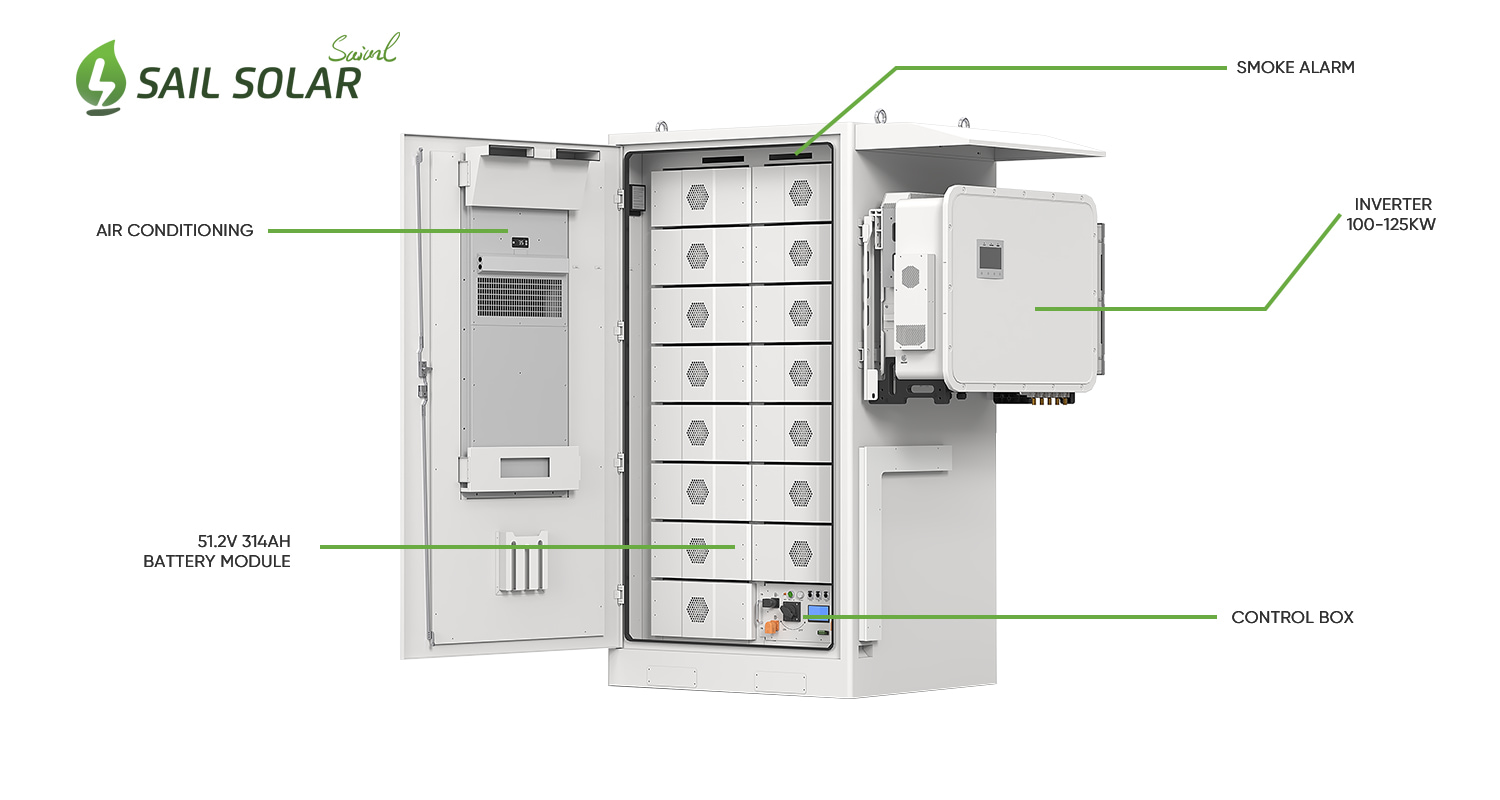

100KWH Battery Cabinet
Features:

>High Level Protection Rating

Boasts an IP54 weatherproof design that effectively resists dust ingress and water splashing from any direction, making it suitable for harsh outdoor environments such as high humidity, dust-laden areas and variable weather conditions, ideal for outdoor photovoltaic energy storage installations.

Flexible Capacity Scalability

Supports modular capacity expansion to meet customized energy demands of different users (residential, commercial, industrial). The scalable solution allows easy parallel connection of battery units, adapting to the dynamic energy storage needs.

Comprehensive Safety Design

Equipped with an advanced Battery Management System (BMS) that enables real-time monitoring of battery status (voltage, current, temperature). Combined with fireproof and explosion-proof structural design, it eliminates potential safety hazards such as overcharging, overheating and short circuits, meeting industrial safety standards for outdoor energy storage equipment.

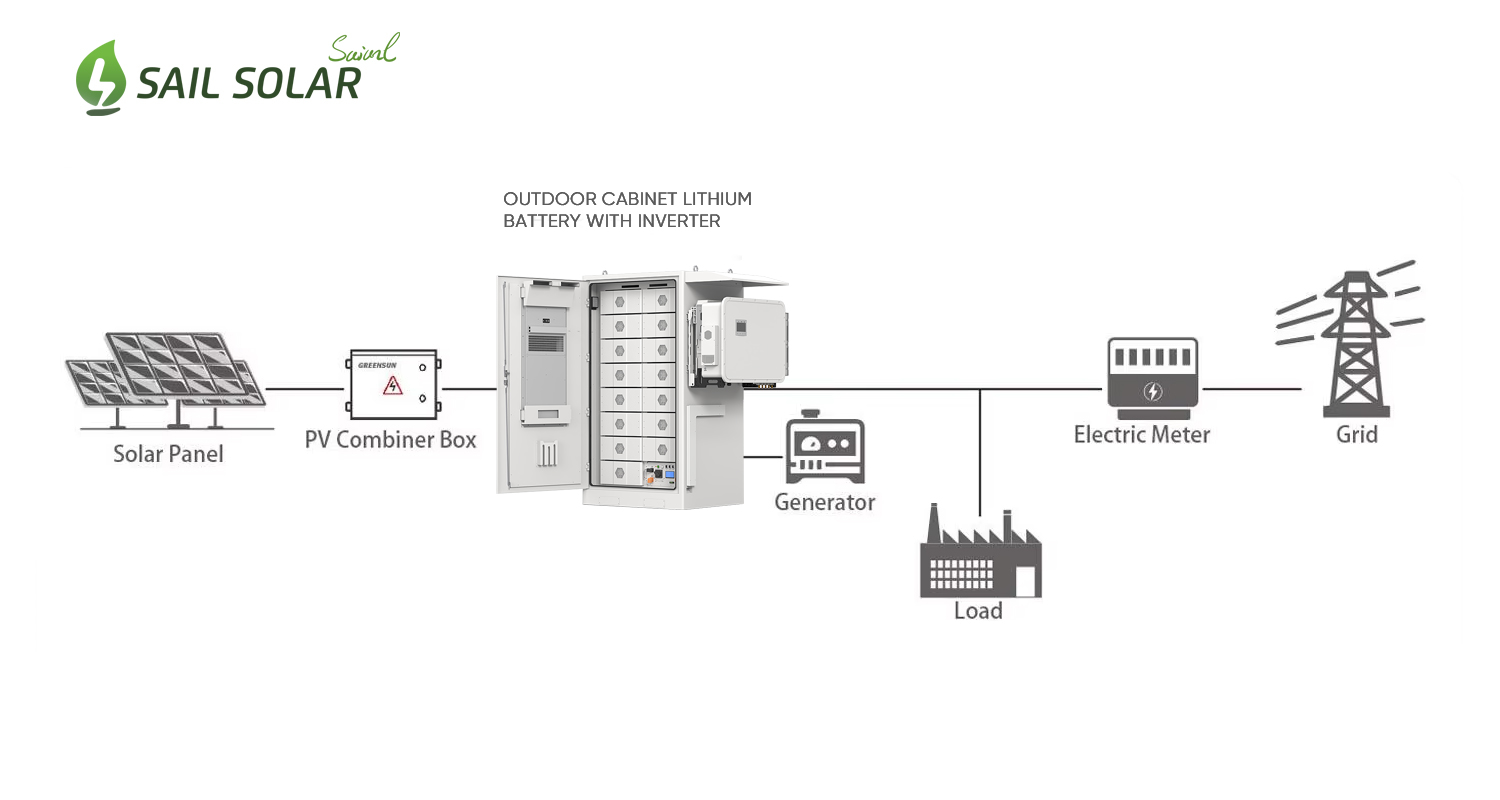

100KWH Hybrid Solar Solution
System Operation Modes
Grid-Tied Mode (Normal Condition): PV modules generate electricity to power loads directly; excess power charges the battery in the outdoor cabinet, and any surplus beyond battery capacity is fed into the grid. If PV generation is insufficient, the grid supplements power to the loads.
Off-Grid Mode (Grid Outage): The hybrid inverter switches to off-grid operation instantly. The battery in the outdoor cabinet discharges to power critical loads; if battery capacity is low, the diesel generator(optional) starts automatically to supply power and recharge the battery.
Peak Shaving & Valley Filling: The system charges the battery with low-cost grid electricity during off-peak hours and discharges to power loads during peak hours, reducing reliance on grid power at high tariff periods and lowering energy costs.



After-Sales Service

" 7/24 " After-Sales Support

7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.

Service Email: info@sailsolaress.com


Service Process

01

Submit Service Requests

Submit your service requests at any time via email, online customer service, or mobile app.

02

Rapid Response

Our service team will immediately respond to your requests and communicate the details of the issue with you.

03

On-Site Service or Remote Support

Depending on the nature of the problem, provide on-site service or remote technical support.

04

Problem Resolution

Our goal is to completely resolve your issue within 24 hours.

05

Follow-Up

After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
