Rechargeable 8000W MPPT Hybrid Solar Inverters 8KW Single Phase Solar Power Storage Inverter
The Xihe-8KLP1-EU redefines reliability and control. It delivers pure sine wave AC power and operates consistently at its rated capacity, backed by an industrial-grade design that is both durable and easy to install.
Item No :
Xihe-8KLP1-EUParallel :
6 UnitsMax Power :
8000WOutput Voltage :
220V,230VWarranty :
5 YearsCertificate :
CECommunication :
BMS (RS485)Protection :
IP20Type :
Hybrid AC/DC InverterWith industry-leading MPPT technology achieving up to 99.9% efficiency and comprehensive hardware-to-software protection, it guarantees maximum energy harvest and safety. The system offers unparalleled compatibility, supporting various battery types with exclusive Li-ion BMS communication for intelligent monitoring and control.
|
MODEL |
Xihe-8KLP1-EU
|
|
INVERTER
|
|
|
Rated Output Power
|
8,000W
|
|
Max.Peak Power
|
16,000W
|
|
Rated Output Voltage
|
230Vac, single-phase / three-phase, be paralleled
|
|
Load Capacity of Motors
|
5HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
Parallel Capacity
|
1~6 units
|
|
Output Mode
|
O-grid (default)/Hybrid
|
|
BATTERY
|
|
|
Battery Type
|
Lead-acid/Li-ion/User defined
|
|
Rated Battery Voltage
|
48V
|
|
Voltage Range
|
40～60Vdc
|
|
Max.MPPT Charging Current
|
180A
|
|
Max.Mains/Generator Charging Current
|
100A
|
|
Max.Hybrid Charging Current
|
180A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
2
|
|
Max.PV Array Power
|
5,500W + 5,500W
|
|
Max.Input Current
|
22A + 22A
|
|
MPPT Voltage Range
MAINS / GENERATOR INPUT
|
125～425Vdc |
|
Max.Voltage of Open Circuit
|
500Vdc + 500Vdc
|
|
MPPT Voltage Range
|
90～275Vac
|
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
63A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
620*445*130mm
|
|
Weight
|
27kg
|
|
Protection Grade
|
IP20, indoor onIy
|
|
Operating Temperature Range
|
-10~55℃, >45℃ derated
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Internal Fan
|
|
COMMUNICATION
|
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
IEC62109-1, IEC62109-2
|
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
RoHS
|
Yes
|
Take control with the Xihe-8KLP1-EU solar inverter, engineered for intelligent energy management:
Flexible Charging Modes: Choose from four modes (Solar Only, Mains Priority, Solar Priority, Hybrid) to match your energy strategy.
Programmable Scheduling: Automate your system with time-slot settings for grid charging and discharge cycles to maximize savings.
Reliable, Uninterrupted Power: Seamlessly switch between inverter and utility bypass outputs, with an energy-saving mode to cut idle losses.
Intuitive Interaction & Safety: Monitor and control with ease via a dynamic LCD flow diagram, and operate with confidence thanks to full protection protocols and versatile communication ports.

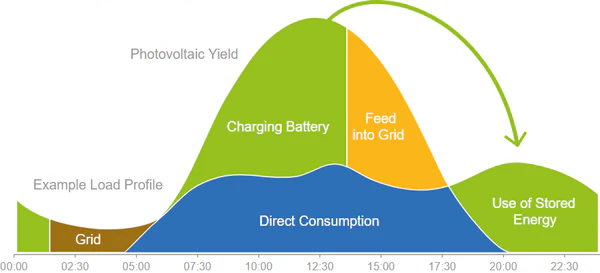

Master Your Energy Costs with Smart Scheduling
The Xihe-8KLP1-EU turns time into savings with its advanced time-slot charging and discharging function:
Save Intelligently: Automatically use battery power during high-tariff periods and switch to the grid when rates are low, maximizing your economic return.
Customize Freely: Define three separate time periods (00:00-23:59) to precisely control when the system charges from and supplies power via the mains.
Optimize Automatically: Within your set schedules, the system prioritizes free solar energy, only supplementing with grid power when necessary to ensure ultimate efficiency.
