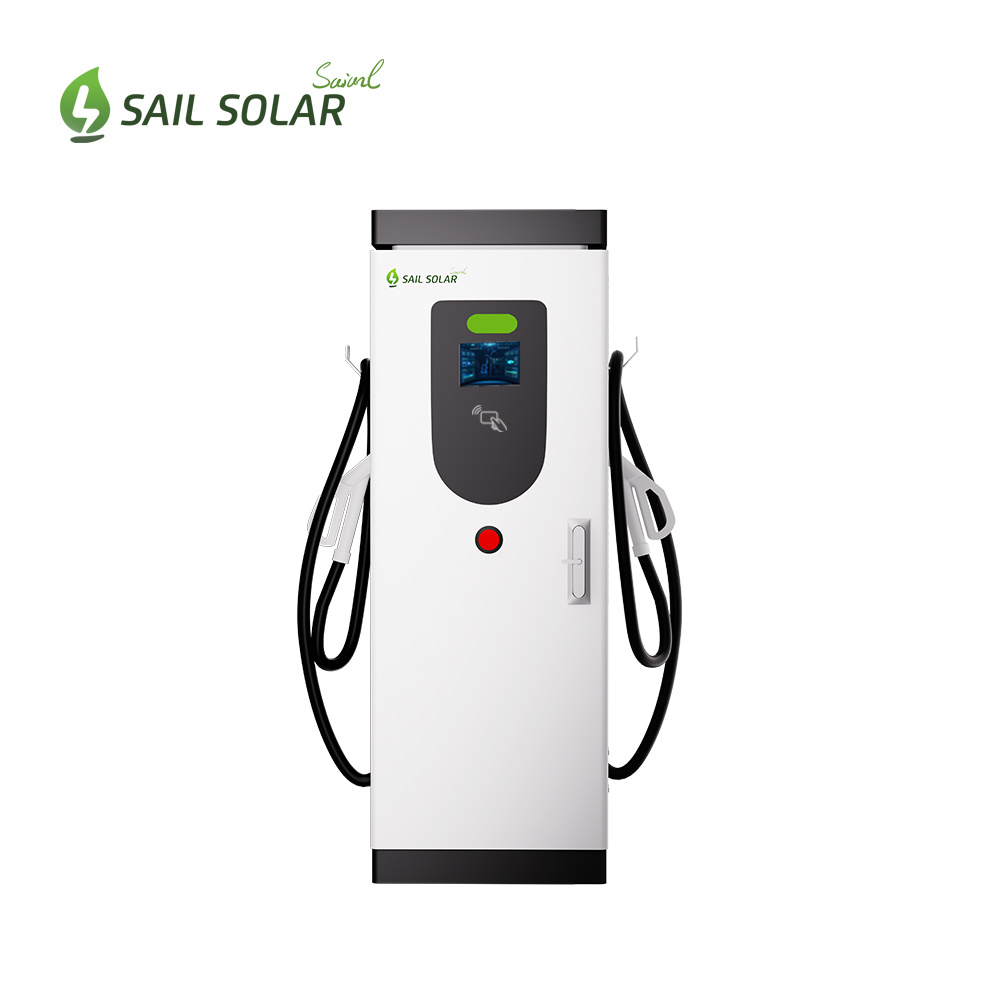

Reliable High Power 120kw 240kw Fast EV Charger DC Electric Vehicle Charging Station
Sail Solar DC EV Charger is predominantly deployed in commercial parking facilities, highway rest areas, industrial plants, and other high-traffic locations. It delivers rapid and reliable charging for a diverse range of electric vehicles via high-capacity charging connectors. These charging stations are generally larger in size, boasting a durable construction and cutting-edge technology to meet the demands of high-speed charging.
Cable length :
5 meters (8m/10m optional)Software update :
Remote upgradeRFID Reader :
ISO 14443Communication mode :
4G, Ethernet, WiFi , BluetoothMax DC output power rating :
120kW, 240kW, 300kWLocalization :
CE, TR25Charging type :
DC ChargerTrademark :
OEM acceptableSafety and Certification :
IEC 61851-1 , IEC 61851- 21- 2 , IEC 61851- 22 , IEC 62196 - 2, IEC 62196 -3They are perfectly suited for public charging points, logistics centers, commercial districts, and any other settings where swift and convenient charging is essential.
|
Charging type
|
DC Charger
|
|
Localization
|
CE, TR25
|
|
Max DC output power rating
|
120kW, 240kW ,300kW ,360kW
|
|
Input voltage range
|
400VAC, 400 VAC +/- 15% (50 Hz or 60 Hz)
|
|
Connector types
|
3P+N+PE(Three phase)
|
|
Input AC power rating(MAX)
|
440A , 550A , 660A
|
|
Power factor (full load)
|
> 0.99
|
| THDi | <5% |
|
Standby power
|
< 10W
|
|
Protection
|
OVP, OCP, OPP, OTP, UVP, SCP, LVP, Residual current detection, Surge protection,
Door Access , RCD Protection |
|
Communication mode
|
4G, Ethernet
|
|
User authentication
|
RFID, MAC, Screen button
|
|
RFID Reader
|
ISO 14443
|
|
Software update
|
Remote upgrade
|
|
Control and configuration
|
Cloud platform, OCPP 1.6J (Extendable to ocpp2.0)
|
|
IP and IK rating
|
IP-65 and IK-10 (cabinet)
|
|
Operational altitude
|
Up to 2500 m
|
|
Operating temperature range
|
-40°C to + 55°C (power de - rating applies)
|
|
Humidity
|
5 -95 % Rh non- condensing
|
|
Dimensions (W x D x H )
|
750mm*700mm*1860mm
|
|
Cable length
|
5 meters (8m/10m optional)
|
|
Charging system
|
IEC 61851-1 , IEC 61851- 21- 2 , IEC 61851- 22 , IEC 62196 - 2, IEC 62196 -3
|
The Sail Solar DC EV Charger delivers superior charging speed and efficiency. Its user-friendly interface and robust high-power design ensure a seamless, rapid-charging experience at public stations and commercial hubs.
>Extremely Fast and Efficient: High power output significantly reduces charging time, designed specifically for busy commercial areas and transportation hubs.
>Safe and Reliable: Compliant with international standards, rugged and durable, ensuring stable and safe charging for all types of electric vehicles.
>Intelligent Connectivity: Integrated RF and Wi-Fi wireless communication enables remote monitoring and flexible management, ensuring complete control of charging status.

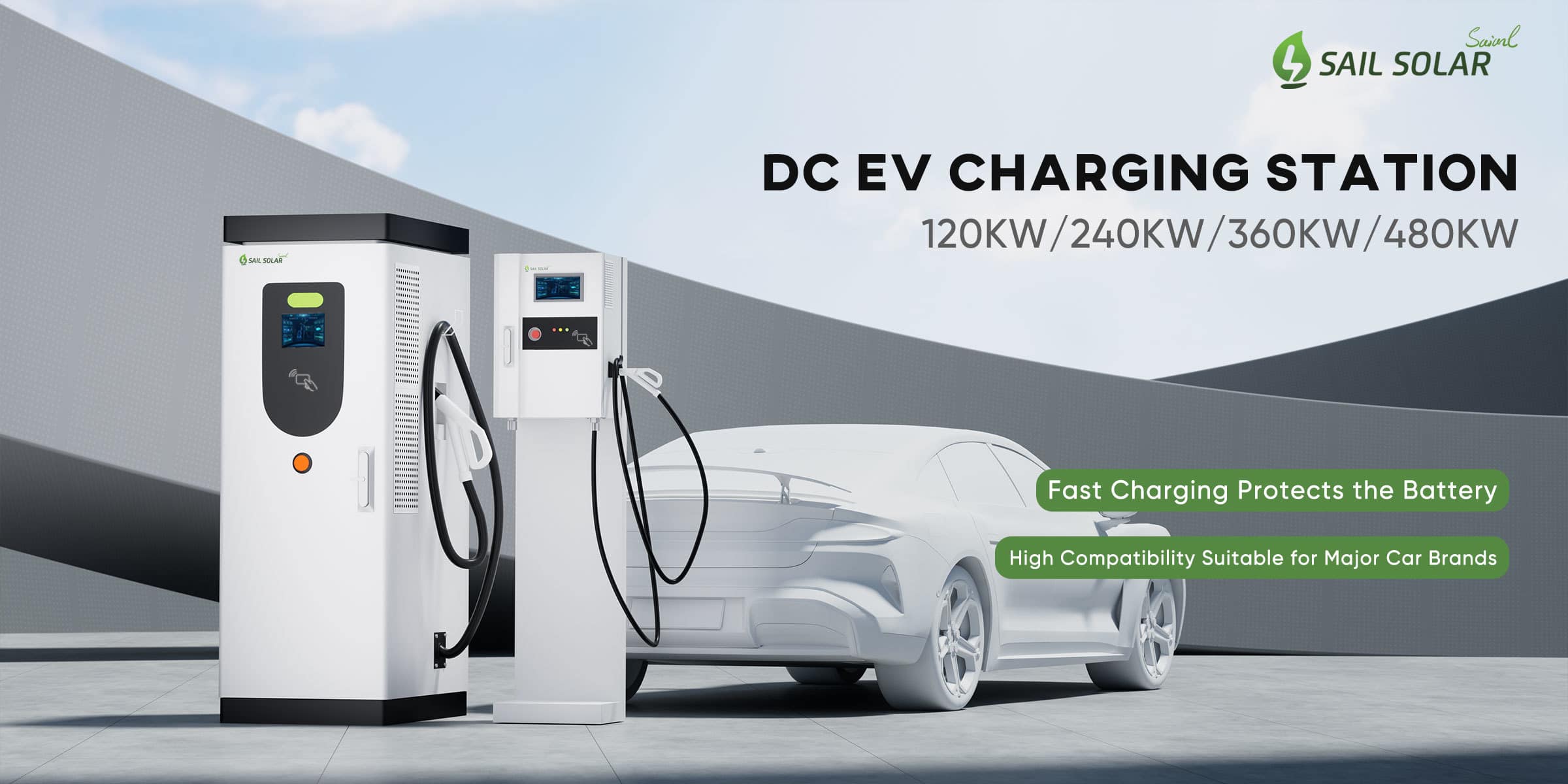

Sail Solar DC Fast Charger (120-480kW): Where Power Meets Elegance.
Beyond a charger, it's a statement. Featuring a sleek, floor-standing design that elevates any space—from residential communities to industrial hubs—without compromising on the robust durability you expect.
Intelligent, Adaptive, Uncompromisingly Safe.
With built-in protection systems and adaptive power output, it automatically adjusts to each vehicle, maximizing efficiency and minimizing costs. Its versatile power rating ensures the perfect configuration for your unique energy needs.
The Smarter, Cleaner Charge for Tomorrow's Roads.
This is more than advanced technology; it's a user-centric experience designed to accelerate the sustainable transportation revolution. Ready to power up, seamlessly?
