Sail Solar 100kwh 280Ah High Voltage Energy Power System Lithium Battery All in One System
100kwh Commercial and Industrial Energy Storage System with lithium ion battery storage and on off grid storage inverter
Packaging Details :
wooden caseDelivery Time :
35 work daysCertification :
CE, MSDS, UN38.3Normal Capacity :
580AhRecommend Charge/Discharge Current :
100ACell&Method :
EVE302V280Ah-16S1PCycle Life :
6000 cyclesMPPT Protocol :
RS232/RS485/CAN/BLUETOOTH/WIFIProtection Class :
IP54Battery Type :
Lithium Ion, LiFePO4Place of Origin :
ChinaBrand :
Sail SolarWarranty :
10 YearsNominal Voltage :
51.2VIn order to better meet the diversified needs of the market, relying on its own technology, resources, talents and other advantages, it has successfully created 100kwh High Voltage Lithium Lifepo4 LFP Battery. We have been constantly developing new technologies to manufacture value-added Sail Solar 100kwh High Voltage Lithium Lifepo4 LFP Battery. It can be widely found in the application field of Energy Storage Battery. Sail Solar is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.
|
MODEL
|
SAS-50KWH-R/SAS-50KWH-C |
SAS-100KWH-R/SAS-100KWH-C |
SAS-150KWH-R/SAS-150KWH-C |
SAS-200KWH-R/SAS-200KWH-C |
|
Battery Type
|
LiFePO4 battery
|
|||
| Nominal Voltage |
51.2V |
|||
| Normal Capacity |
280Ah |
|||
| Energy |
14.336Kw/h |
|||
| Efficiency of Charge |
99.5%@0.2C |
|||
| Efficiency of Discharge |
96-99%@1C |
|||
| Charge Voltage |
58.4±0.5V |
|||
|
Module Size(mm)
|
792*483*245(D*W*H) |
|||
| Net weight(kg) |
108 |
|||
| Cell&Method |
EVE302V280Ah-16S1P
|
|||
| Interal Resistance |
≤50mΩ
|
|||
|
Battery rack specification
|
||||
|
Configuration
|
4 battery modules+1 BPU(204.8V 280Ah)
|
7 battery modules+1 BPU(358.4V 280Ah) |
11 battery modules+1 BPU(563.2V 280Ah) |
14 battery modules+1 BPU(716.8V 280Ah) |
|
Energy
|
57.34Kw/h
|
100.35Kw/h |
157.7Kw/h |
200Kw/h |
| Discharge Cut-Off Voltage(V) |
176 |
308 |
484 |
616 |
| Charge Cut-Off Voltage(V) |
227.2
|
397.6 |
624.8 |
795.2 |
| Recommend Charge/Discharge Current(A) |
100
|
|||
|
Max.Charge/Discharge working Current(A)
|
200 |
|||
| Protocol(optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
|||
| Working Temperature |
0℃~50℃ Charge-10℃~50℃ Discharge
|
|||
| Certification |
CE/IEC/UL/UN38.3/MSDS
|
|||
| Cycle Life |
6000 cycles @ 0.5C 80% D.O.D
|
|||
| Series |
Max Support 16 Units in Parallel
|
|||
| Rack Size(mm) |
1080*800*650
|
1080*800*1250 |
1080*800*1800 |
1655*800*1530 |
| Net Weight(kg) |
530
|
930 |
1460 |
1860 |
| Protection |
Build in smart BMS, Breaker
|
|||
| Protection Grade |
IP20(IP54 is optional)
|
|||
|
Humidity
|
5%~95% |
|||
| Altitude |
≤2000m
|
|||

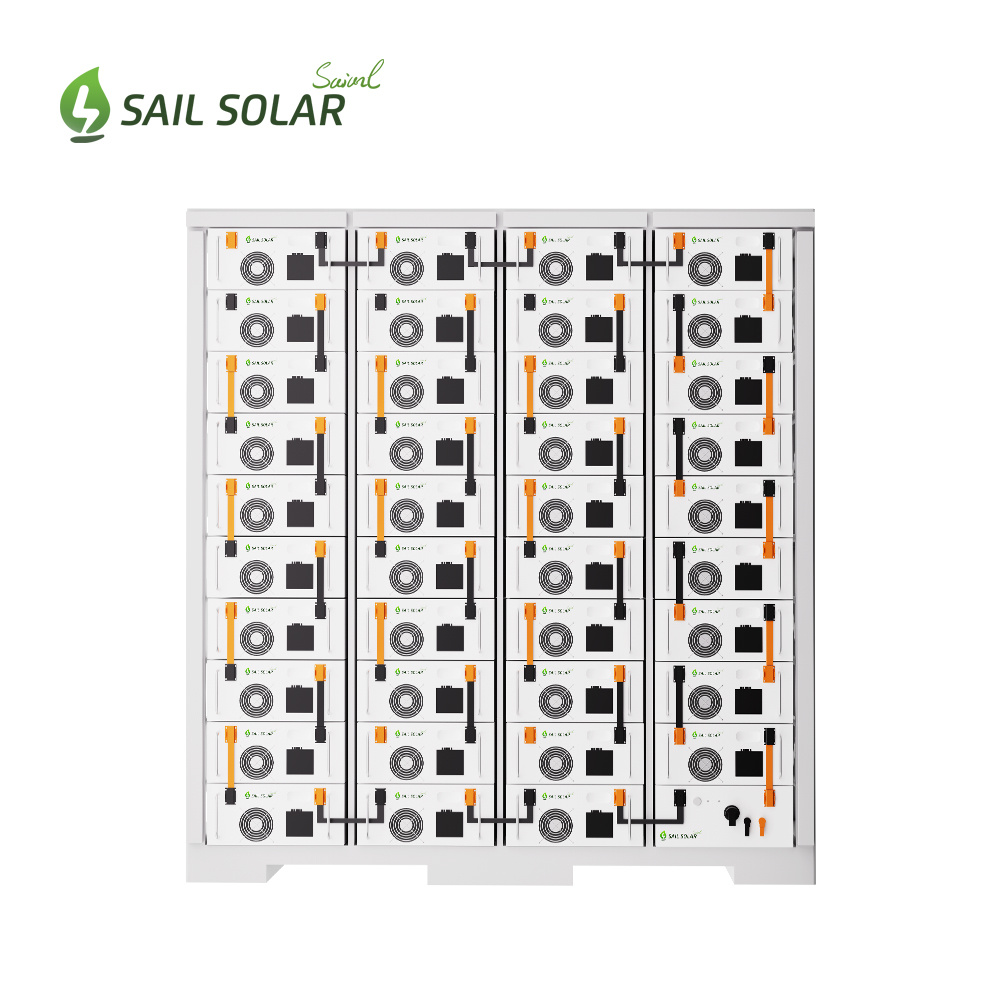

The 100kWh High-Voltage Energy Storage System from Sail Solar offers a seamless all-in-one solution, engineered for performance, safety, and longevity. Built with advanced lithium-ion battery packs, this system delivers exceptional stability, high energy density, and reliability. It is designed to be charged effortlessly using grid power or solar panel systems, making it an ideal energy storage solution for businesses and factories seeking dependable electricity supply.
This system consists of seven 14.3kWh battery modules, interconnected to provide scalable and robust energy storage. The lithium-ion batteries boast an impressive lifespan of over 10 years, maintaining high efficiency throughout their lifecycle. Their durable design ensures a stable energy output, protecting your investment while maximizing returns. Whether powering critical operations or enhancing energy independence, this system represents a smart, sustainable choice for long-term energy solutions.
For our high-voltage lithium batteries, we offer customized solutions tailored to meet the unique requirements of our customers. Whether it’s specific configurations, capacities, or operational needs, we ensure our products align perfectly with your expectations.

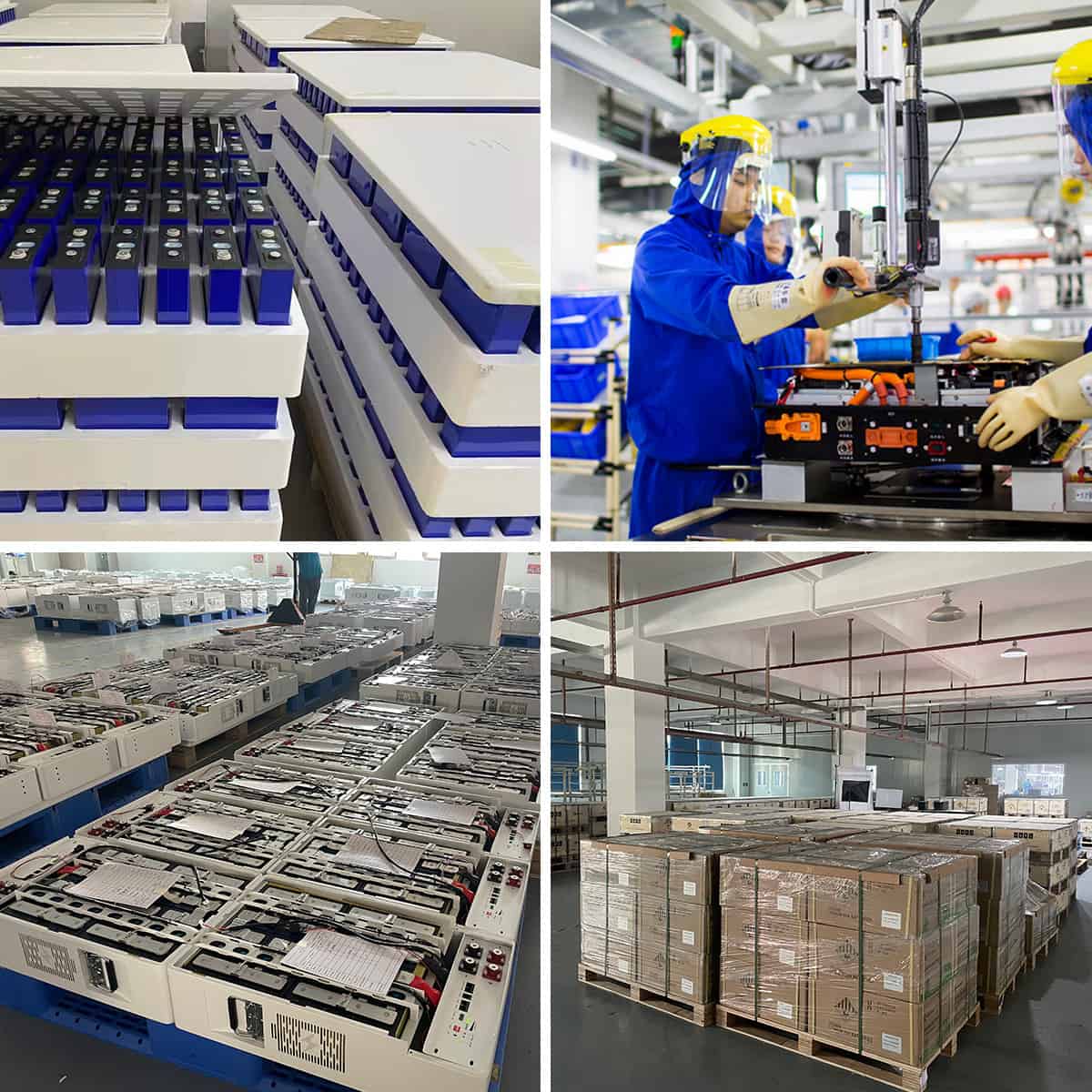

All our lithium battery products are manufactured using A+ quality cells—we do not use second-hand or refurbished batteries. Each battery undergoes rigorous, multi-stage testing before leaving the factory. This includes detailed inspections of cell voltage, cell current, battery voltage and current, as well as charge and discharge performance tests. These stringent measures ensure our batteries meet the high standards demanded by mid-to-high-end customers, providing not only reliability but also peace of mind.
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
