Sail Solar 100KWH Lithium Battery Pack with 30KW 50KW Solar Inverter All in One Outdoor Cabinet Energy Storage System
The lithium battery pack and hybrid inverter are deeply integrated into one unit, making it easy to use and suitable for outdoor installations. A 100kWh deep-cycle high-voltage lithium battery pack and 30kW or 50kW Deye three phase hybrid inverters are available, with customization services supported.
Item No :
BESS-I100Battery Type :
LiFePO4Battery :
100KWHRated Output Power :
30-50KWCycle Life :
>8000 CyclesProtection Class :
IP54Warranty :
10 YearsCommunication :
CAN, RS485Type :

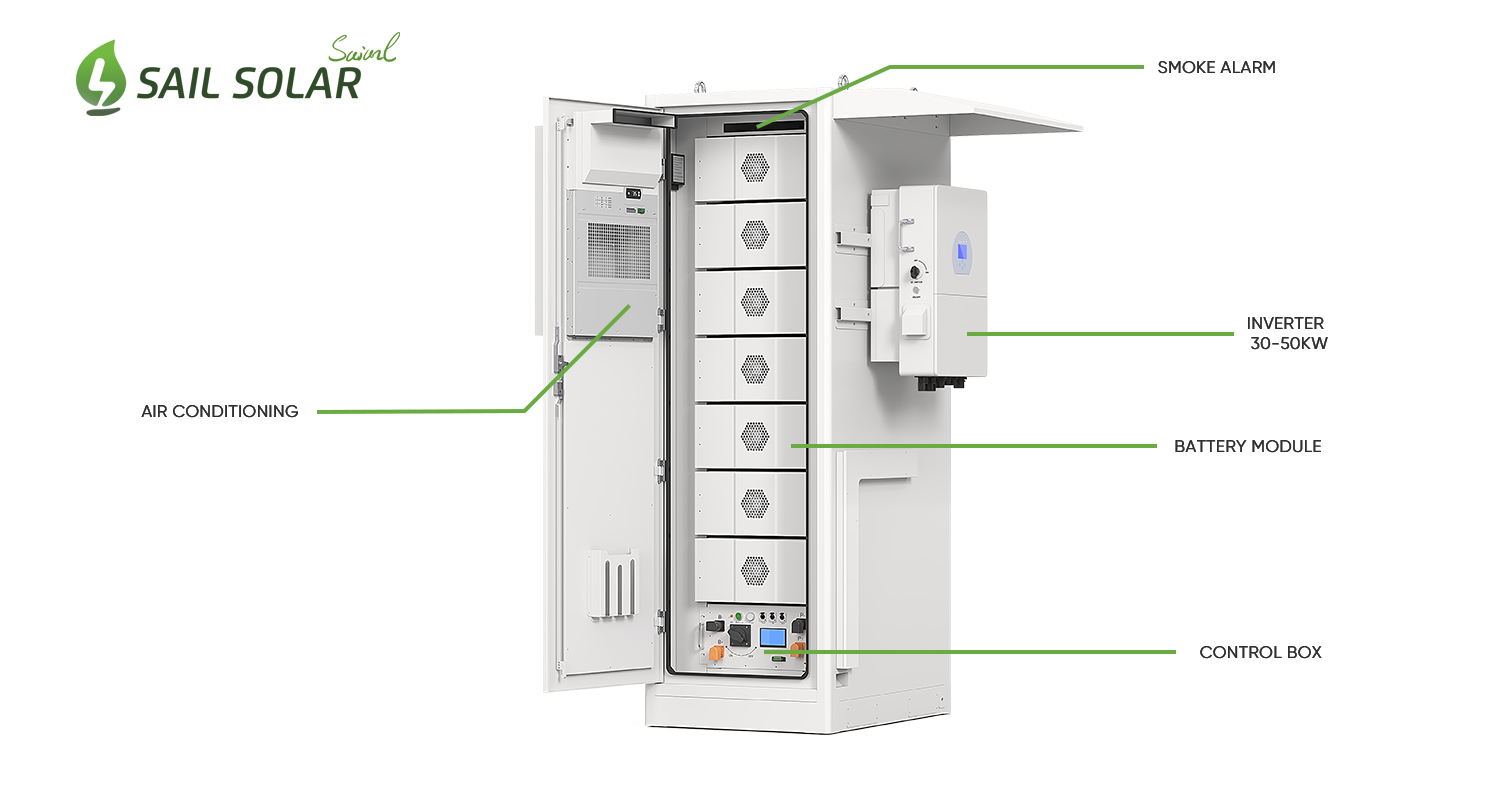

HybridThis all-in-one outdoor energy storage solution, configured in an IP54 protection-grade cabinet, realizes reliable power management by virtue of its 100kWh LiFePO4 battery pack and optional 30–50kW hybrid inverter module. Grid stability is secured through voltage regulation and three-phase balancing functions, while the integrated air-cooling system, fire suppression mechanism, and centralized Energy Management System collectively ensure the safe and optimal operation of the whole system.
Specification
|
MODEL
|
BESS-I100 |
|
Type
|
Battery: 100.35kWh /Inverter: 30-50kw
|
| Battery Cell |
Lithium-ion |
| Battery Pack |
LFP314Ah |
| Rated Voltage(V) |
51.2V 314Ah |
| Rated Energy(KWH) |
358.4V(7module in series) |
| Inverter |
Deye
|
| Rated Grid Voltage (V) | 380V |
|
Size: W*D*H (mm)
|
1200*803*2375 |
|
Weight (KG)
|
1300
|
|
Protection Level
|
IP54
|
|
Cooling Method
|
Air cooling (refrigeration, ventilation, heating)
|
|
Fire Protection System
|
Integrated
|
|
Communication
|
RS485,CAN
|
Product Description

- Full-Stack Integrated Architecture: Integrates 30kW/50kW hybrid inverter, 100kWh lithium battery, BMS, EMS & cooling system; reduces cables, lowers installation difficulty and failure risk.
- Outdoor Dedicated Protection: IP54 cabinet, dustproof, waterproof, salt spray resistant; suitable for high-temperature, extreme cold and other harsh environments, no extra protective room needed.
- Compact Space Design: Optimized cabinet layout, high space utilization, small footprint; flexible deployment in industrial/commercial plants, lower installation requirements.

Flexible Expansion: Modular design allows for on-demand expansion of capacity
and power to adapt to future energy needs.
Plug and Play: Standardized interfaces simplify installation, enable rapid
deployment, and reduce costs and time.
Full Lifecycle Service: One-stop solution design and operation and maintenance,
10-year warranty, addressing investment concerns.
