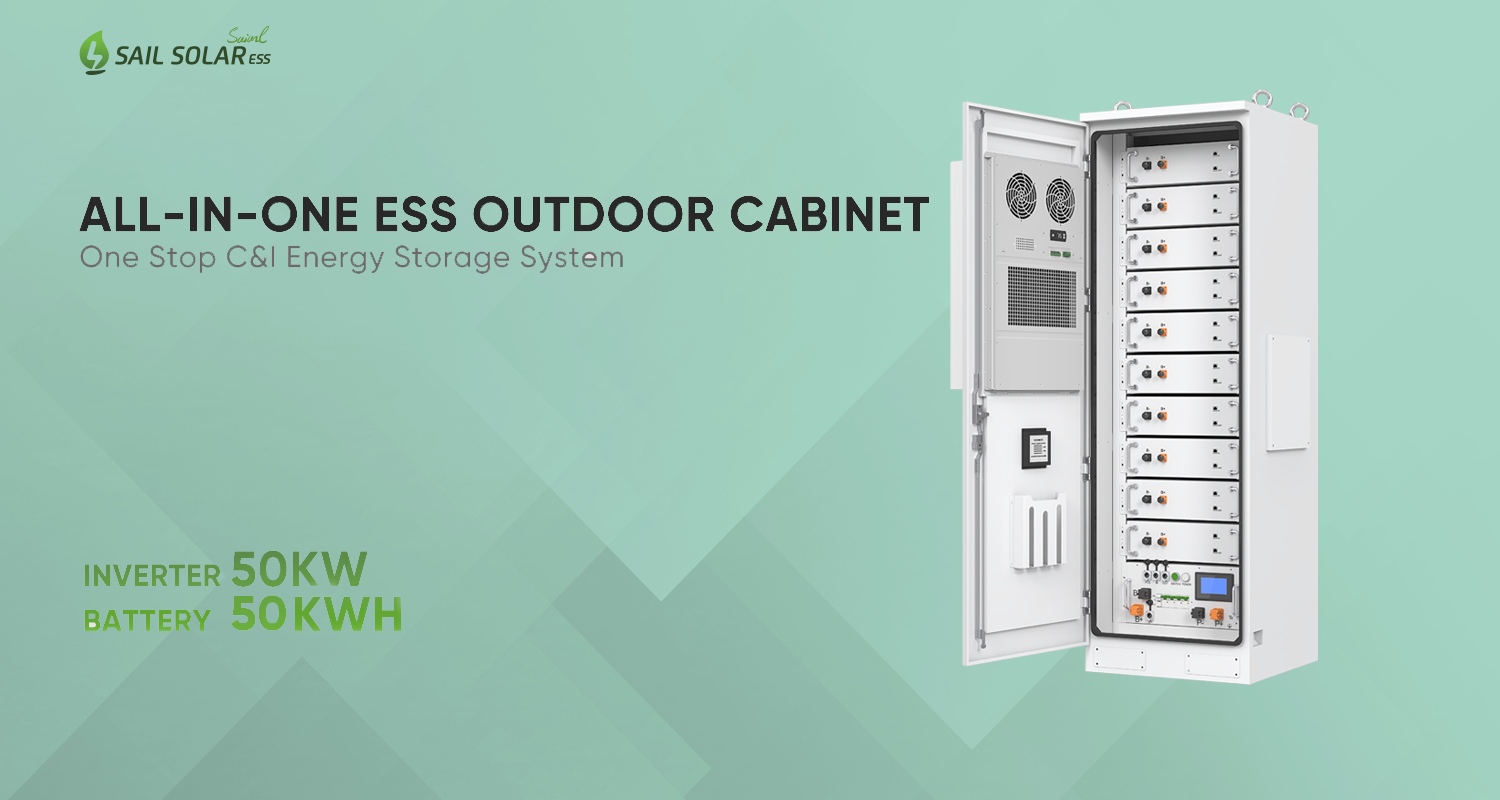

All In One 50KWH Industrial and Commercial Battery Outdoor Cabinet with Three Phase Hybrid Solar Inverter

All In One 50KWH Industrial and Commercial Battery Outdoor Cabinet with Three Phase Hybrid Solar Inverter

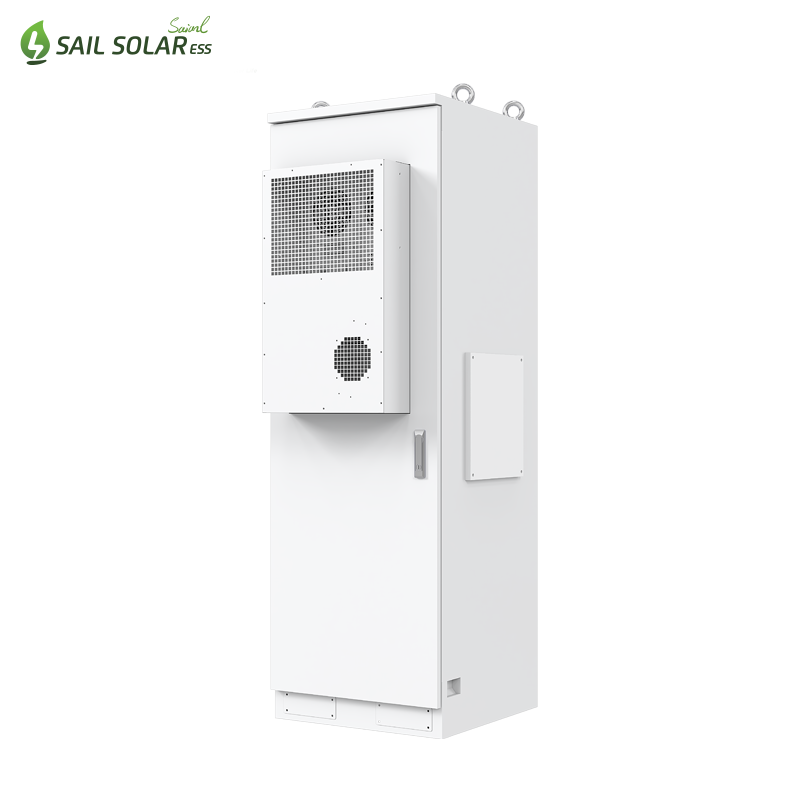

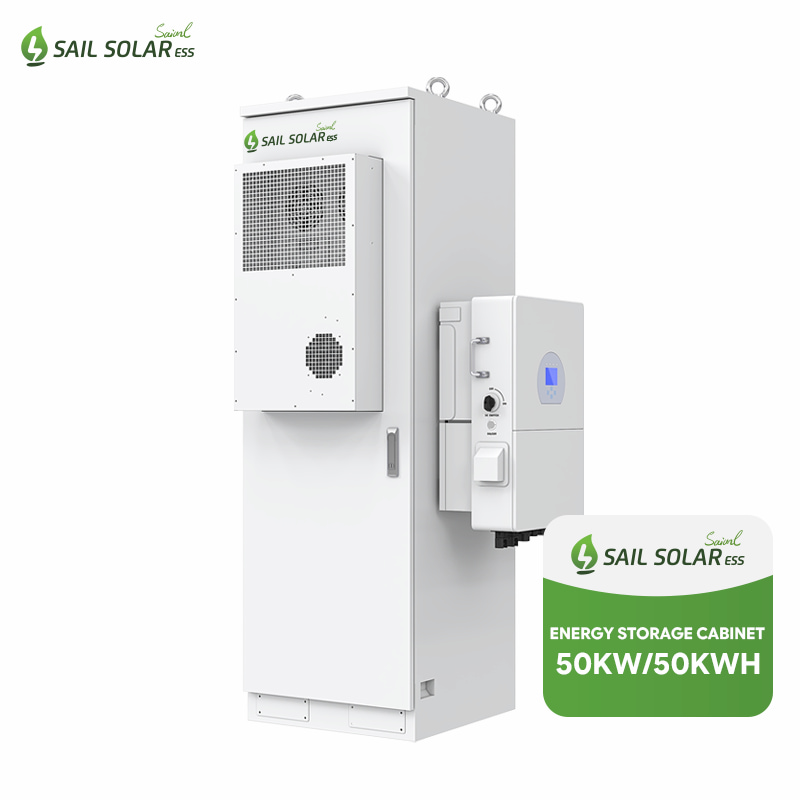

This 50kWh commercial and industrial energy storage outdoor cabinet is an energy storage carrier, mainly composed of a battery system and auxiliary systems for monitoring and protecting the battery system, including a BMS management system, a thermal management system, a fire protection system, and a power distribution control system.

  • Item No :

    SAS-50KWH-C
  • Nominal Voltage :

    512V
  • Battery Type :

    LiFePO4
  • Battery :

    50KWH
  • Rated Output Power :

    50KW
  • Output Voltage :

    380V/400V
  • Protection Class :

    IP54
  • Warranty :

    10 Years
  • Communication :

    CAN, RS485

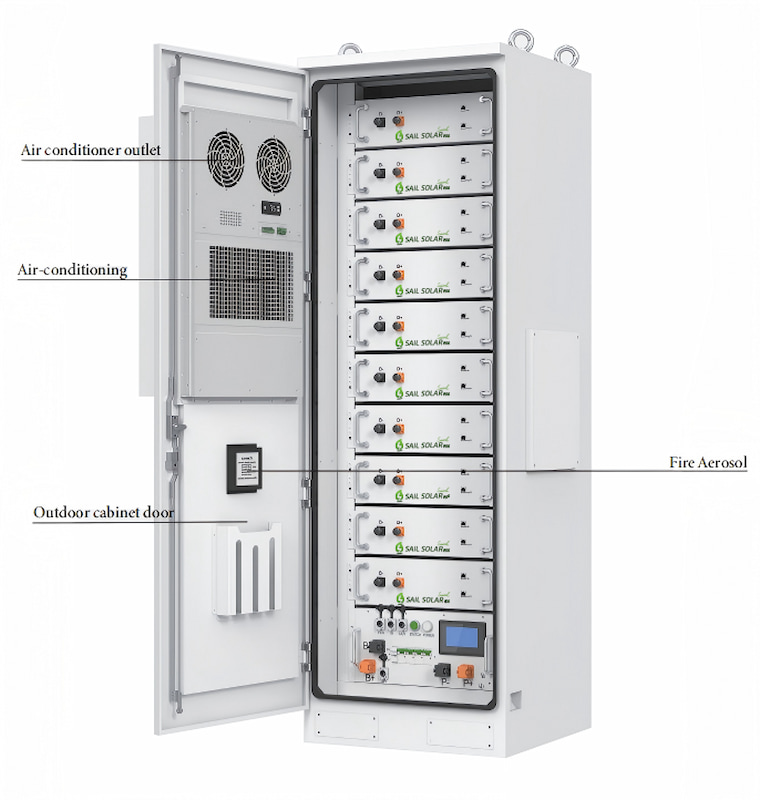

This outdoor energy storage cabinet features an all-in-one design, combining the energy storage battery system, power distribution control system, thermal management system, and fire protection system into a single cabinet. And the energy storage battery system consists of 10 sets of 100Ah-1P16S battery clusters, with a rated voltage of 512V and a capacity of 50 kWh.

Specification



MODEL

SAS-50KWH-C

Type
All-in-One (Battery: 51.2kWh  /Inverter: 30-50kw)
Battery Cell

Lithium-ion

Battery Pack

LFP100Ah

Rated Voltage(V)

512V

Rated Energy(KWH)

51.2KWH (10module in series)

Inverter
Deye/Solis
Rated Grid Voltage (V) 380V/400V
Size: W*D*H (mm)
780*640*2000
Weight (KG)
625
Protection Level
IP54
Cooling Method
Air cooling (refrigeration, ventilation, heating)
Fire Protection System
Integrated
Communication
RS485,CAN

Product Description



  • - Employs high-stability lithium iron phosphate battery cells, featuring mature, reliable, safe, and long-life technology.
  •
  • - Built-in automatic aerosol fire suppression system for rapid fire suppression, preventing fire spread and ensuring equipment safety.
  •
  • - Rugged IP54 enclosure provides rain, dust, and UV protection, suitable for long-term outdoor installation in harsh climates.
  •
  • - Built-in air conditioning system maintains stable internal temperature, effectively extending battery life and ensuring stable performance in high and low temperature environments.
  •

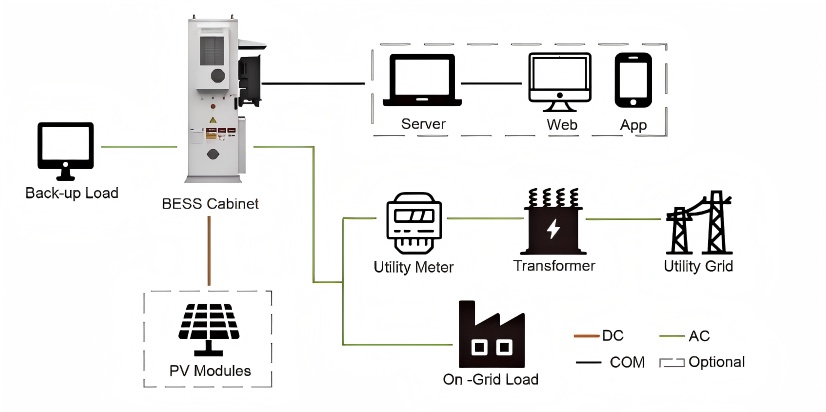

This 50kWh Battery Energy Storage System (BESS) cabinet serves as an energy hub, connecting all key components of the solar power system:



It directly connects to the photovoltaic modules, absorbing and storing the direct current (DC) generated by the solar panels.



It converts the stored DC to alternating current (AC) and seamlessly connects to:

- Grid-connected loads (factory/commercial loads) for self-use

- Connected to the public grid via meters and transformers for grid connection/peak shaving

-Standby loads to provide uninterrupted power during power outages



Connected to a remote monitoring system (server/webpage/application) for 24/7 remote control and status checks.

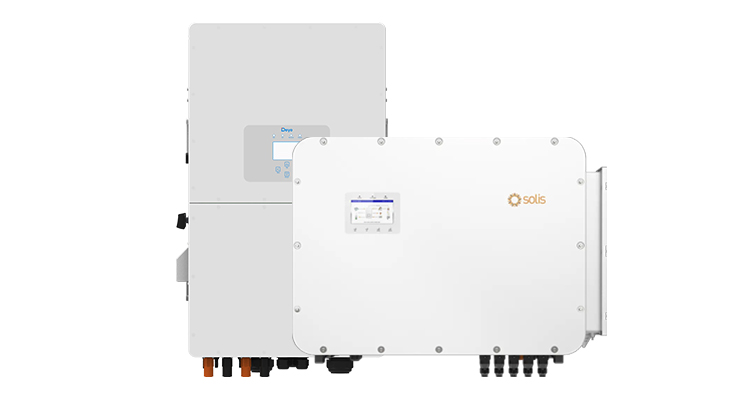

Our 50kWh outdoor energy storage cabinet supports configuration with 30–50kW three-phase inverters from brands such as Deye and Solis, providing flexible power options to meet the diverse needs of your commercial solar systems. It enables seamless integration, eliminating the hassle of independent configuration and creating a fully customized, future-oriented energy solution.
