Sail Solar 150KWH LiFePO4 Storage Lithium Ion Batteries for Solar Power Systems Solution
High Voltage LiFePO4 Battery System with Rack
1. Capacity can be customized
2. 150KWH
3. Best solution for Backup/ESS/BESS/Telecom/Hospital/Scool/UPS/EPS and so on.
Certification :
CE, MSDS, UN38.3Normal Capacity :
580AhRecommend Charge/Discharge Current :
100ACell&Method :
EVE302V280Ah-16S1PCycle Life :
6000 cyclesMPPT Protocol :
RS232/RS485/CAN/BLUETOOTH/WIFIProtection Class :
IP54Battery Type :
Lithium Ion, LiFePO4Brand :
Sail SolarWarranty :
10 YearsNominal Voltage :
51.2VThe Sail Solar 150KWH LiFePO4 Storage Lithium Ion Batteries for Solar Power Systems Solution are designed to provide a reliable and efficient energy storage solution for residential and commercial solar power systems.
With a nominal voltage of 51.2V and a normal capacity of 580Ah, the 150KWH LiFePO4 Storage Lithium Ion Batteries are engineered to handle the demands of daily energy consumption. The batteries boast a impressive 6000 cycle life, ensuring longevity and reducing the need for frequent replacements. Protected by an IP54 rating, these batteries are durable and suitable for various environmental conditions.
|
MODEL
|
SAS-50KWH-R/SAS-50KWH-C |
SAS-100KWH-R/SAS-100KWH-C |
SAS-150KWH-R/SAS-150KWH-C |
SAS-200KWH-R/SAS-200KWH-C |
|
Battery Type
|
LiFePO4 battery
|
|||
| Nominal Voltage |
51.2V |
|||
| Normal Capacity |
280Ah |
|||
| Energy |
14.336Kw/h |
|||
| Efficiency of Charge |
99.5%@0.2C |
|||
| Efficiency of Discharge |
96-99%@1C |
|||
| Charge Voltage |
58.4±0.5V |
|||
|
Module Size(mm)
|
792*483*245(D*W*H) |
|||
| Net weight(kg) |
108 |
|||
| Cell&Method |
EVE302V280Ah-16S1P
|
|||
| Interal Resistance |
≤50mΩ
|
|||
|

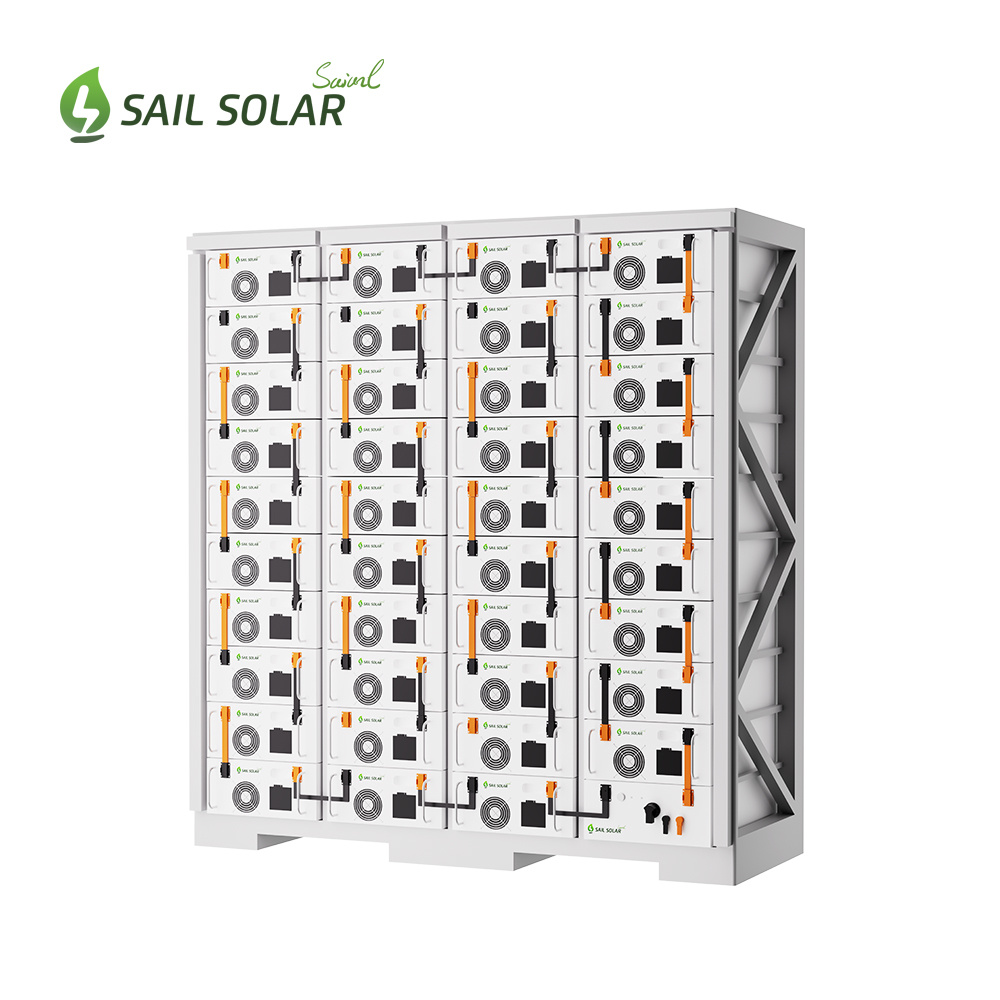

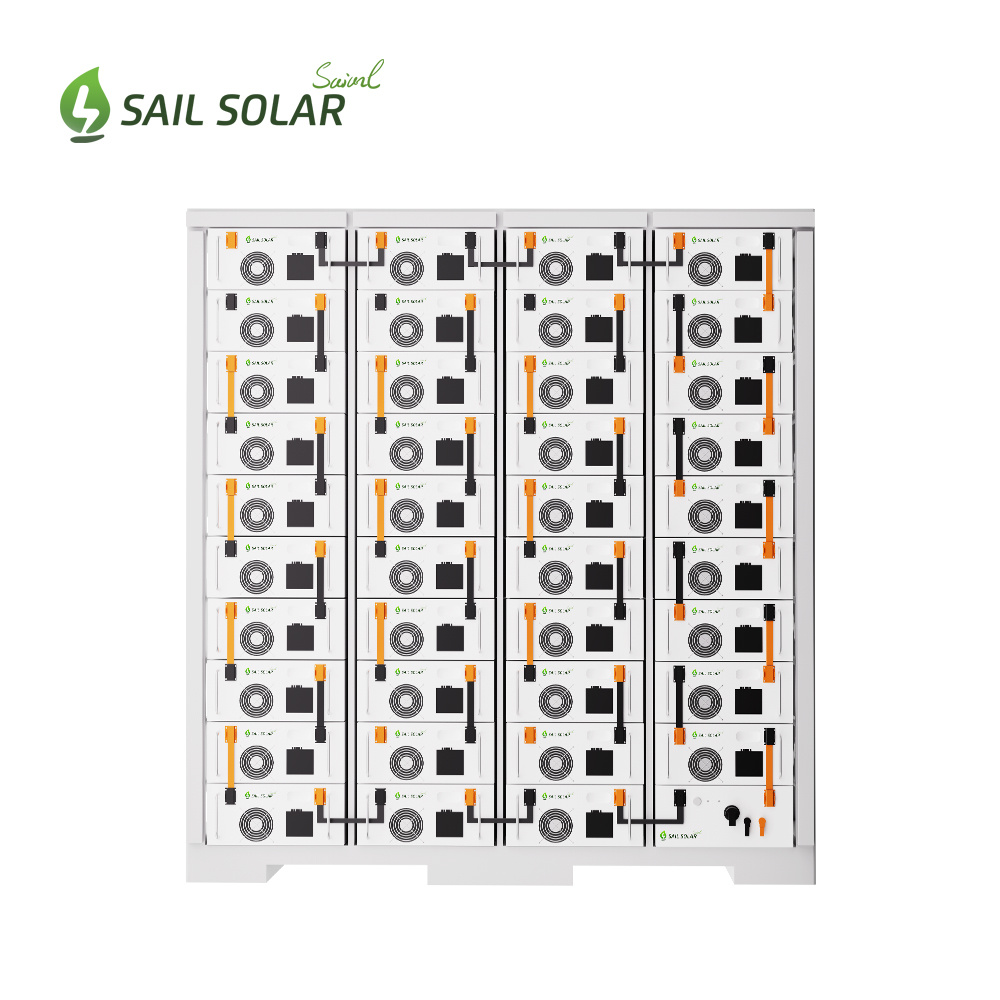

Battery rack specification
|
||||
|
Configuration
|
4 battery modules+1 BPU(204.8V 280Ah)
|
7 battery modules+1 BPU(358.4V 280Ah) |
11 battery modules+1 BPU(563.2V 280Ah) |
14 battery modules+1 BPU(716.8V 280Ah) |
|
Energy
|
57.34Kw/h
|
100.35Kw/h |
157.7Kw/h |
200Kw/h |
| Discharge Cut-Off Voltage(V) |
176 |
308 |
484 |
616 |
| Charge Cut-Off Voltage(V) |
227.2
|
397.6 |
624.8 |
795.2 |
| Recommend Charge/Discharge Current(A) |
100
|
|||
|
Max.Charge/Discharge working Current(A)
|
200 |
|||
| Protocol(optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
|||
| Working Temperature |
0℃~50℃ Charge-10℃~50℃ Discharge
|
|||
| Certification |
CE/IEC/UL/UN38.3/MSDS
|
|||
| Cycle Life |
6000 cycles @ 0.5C 80% D.O.D
|
|||
| Series |
Max Support 16 Units in Parallel
|
|||
| Rack Size(mm) |
1080*800*650
|
1080*800*1250 |
1080*800*1800 |
1655*800*1530 |
| Net Weight(kg) |
530
|
930 |
1460 |
1860 |
| Protection |
Build in smart BMS, Breaker
|
|||
| Protection Grade |
IP20(IP54 is optional)
|
|||
|
Humidity
|
5%~95% |
|||
| Altitude |
≤2000m
|
|||
Our lithium battery cells are sourced fromtop-tier manufacturers, including industry leaders such as CATL, BYD, EVE, and other reputable brands. Each battery is of A+ quality, ensuring exceptional performance and reliability to fully meet the stringent demands of our customers.
In addition, all our lithium batteries comply with a comprehensive range of certifications, including CE, IEC, ISO, UL, MSDS, and UN38.3. These certifications guarantee that our products meet the required safety and quality standards for local sales and usage across diverse markets worldwide.
To date, our lithium battery products have been successfully exported to over 100 countries and regions. We stand firmly behind the quality of our products, offering robust warranties and responsive after-sales services. Based on customer feedback regarding product performance, we provide tailored support, such as remote upgrade control or complimentary replacement of BMS motherboard components, ensuring seamless operation and customer satisfaction.

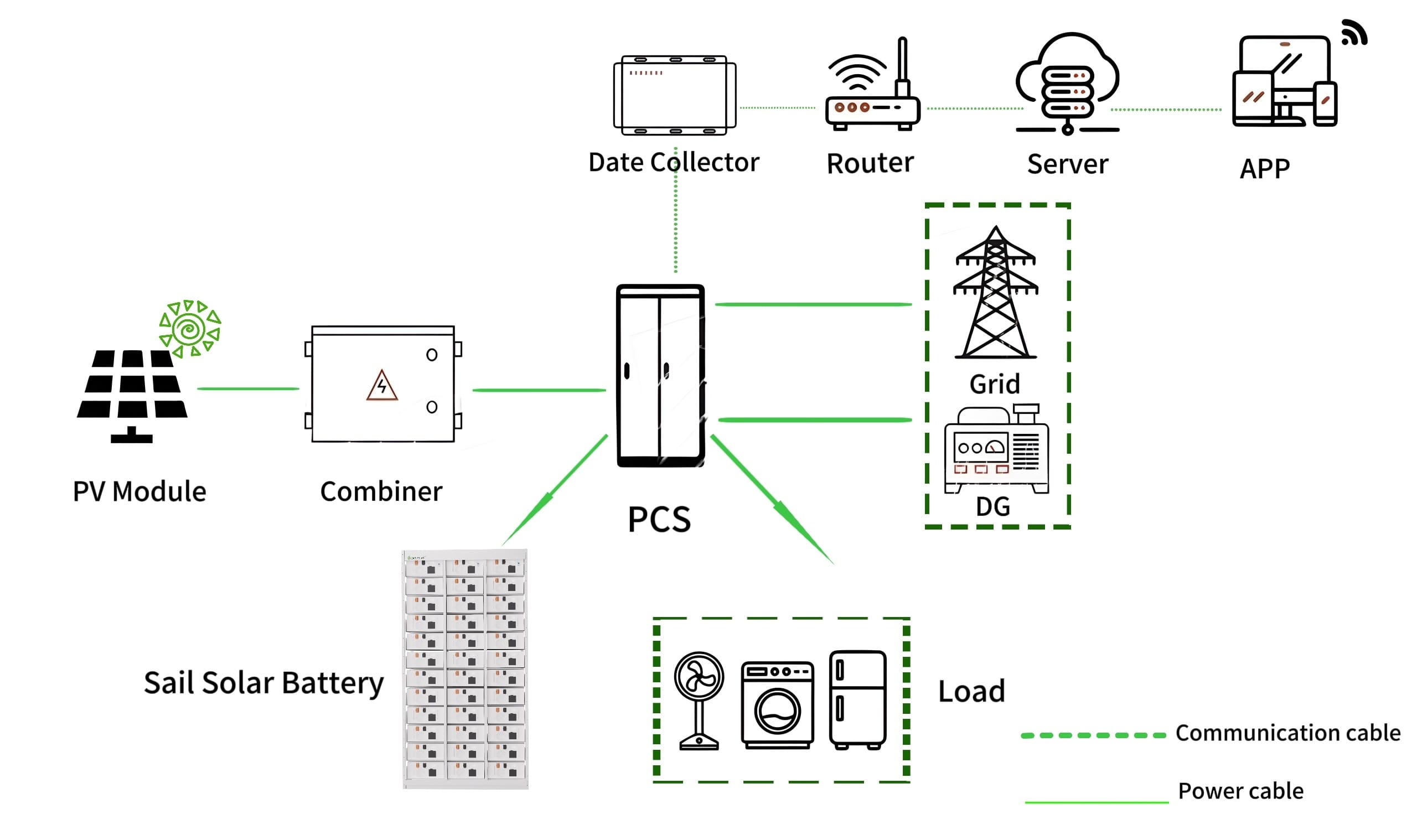

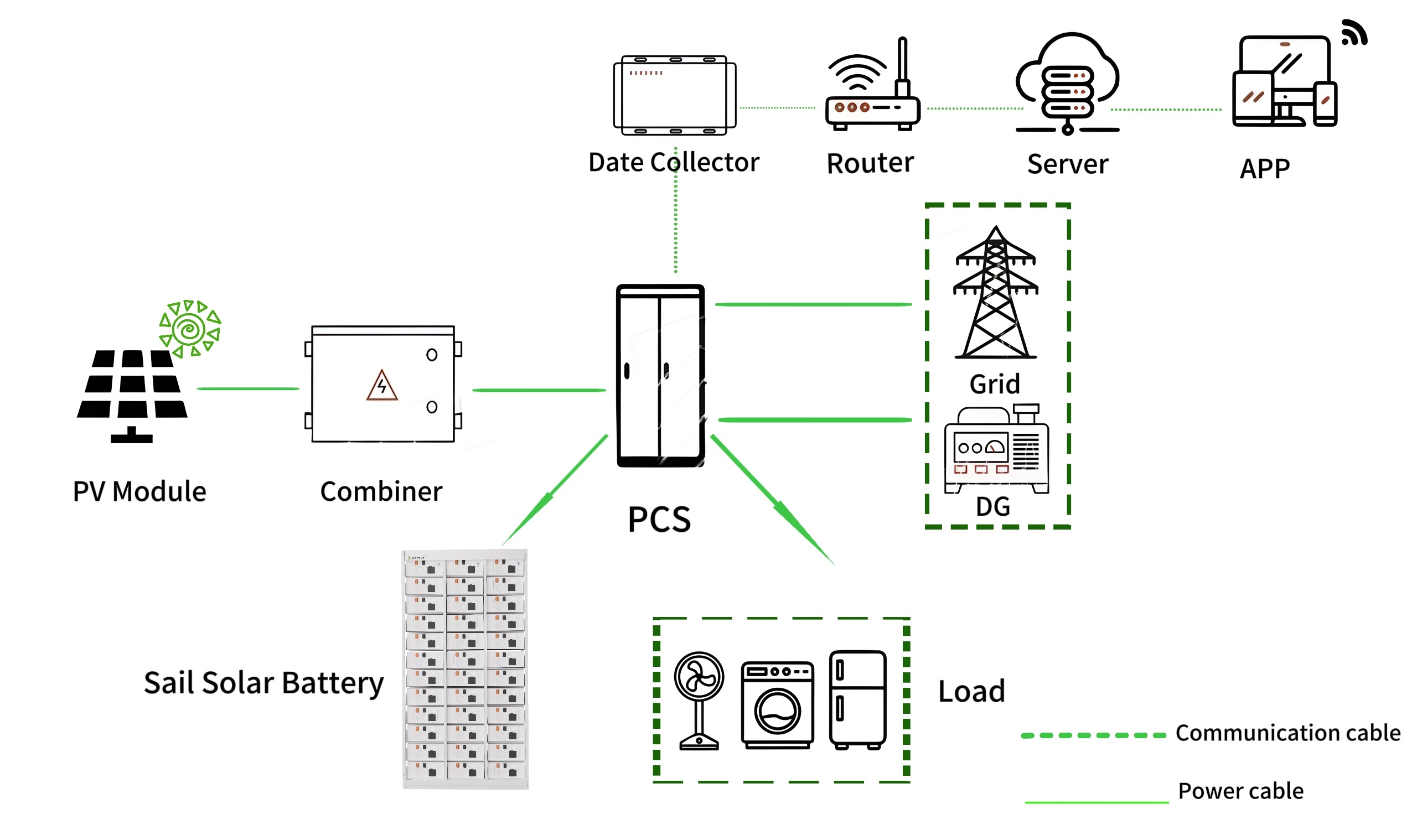

Sail Solar high-voltage lithium batteries can be compatible with most common inverters on the market, such as ATESS, SINEXCEL, etc. LiFePO4 Lithium Battery with AC Charger Integrated Energy Storage System is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system. It adopts master-slave mode, which is convenient for monitoring and controlling the input and output system. The charging and discharging are independent, it can control the charging current of the AC charger and solar controller according to the battery temperature, voltage and SOC to better protect the battery cells from overcharging, overheating and discharging. It has high reliability and long life, products developed for applications such as solar energy storage, industrial and commercial energy storage, household energy storage, charging piles, data room and other applications.
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.

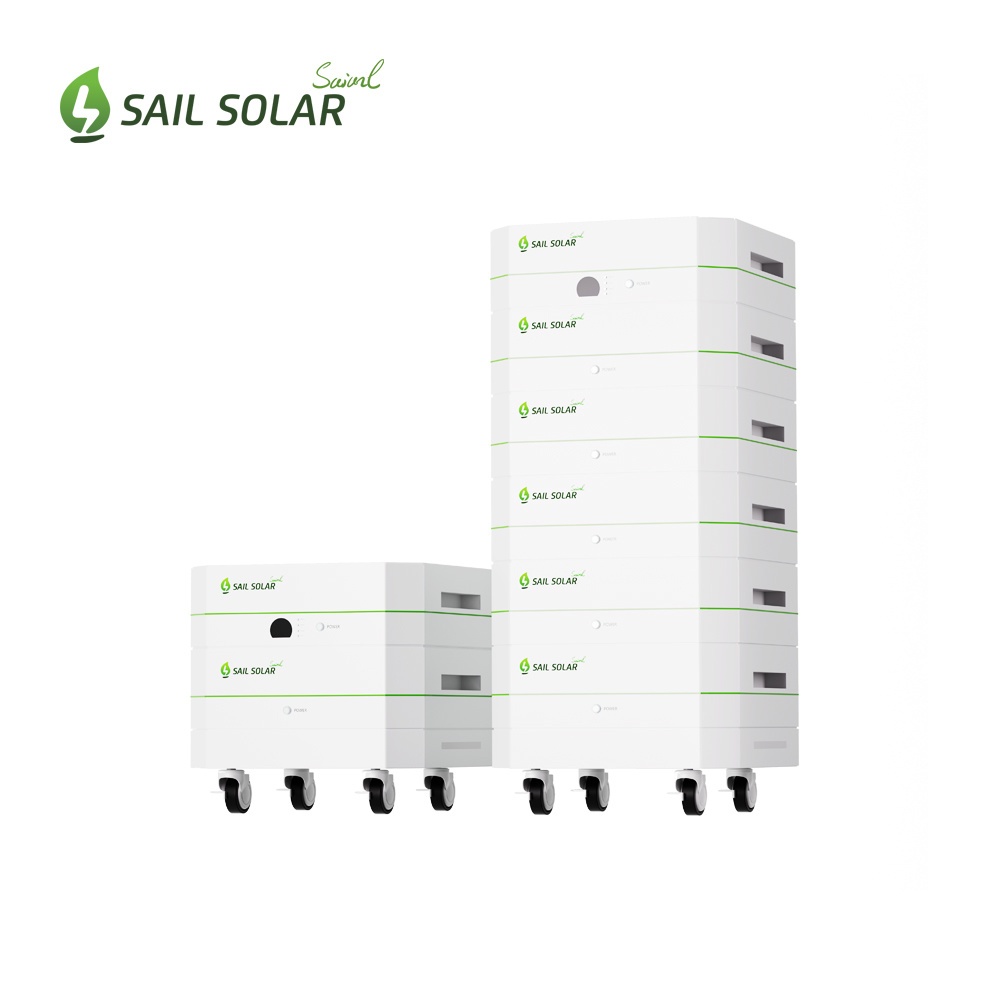

Designed for multi-module installation, this battery features high compatibility BSM, ensuring seamless integration with leading inverter brands for reliable and efficient energy storage. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
Read More

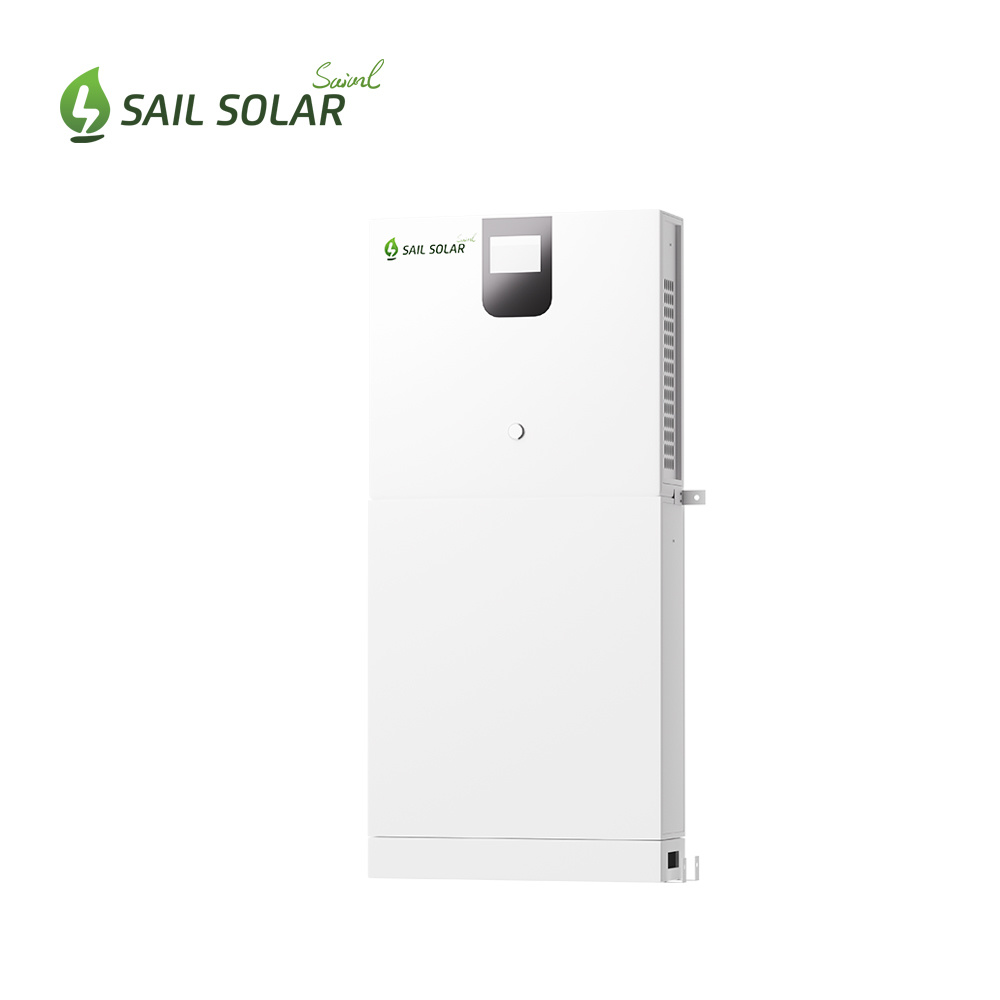

Upgrade your energy storage with the Sail Solar vertical home battery system today! Enjoy easy installation, exceptional performance, and the flexibility to expand your capacity up to 240 kWh. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
Read More

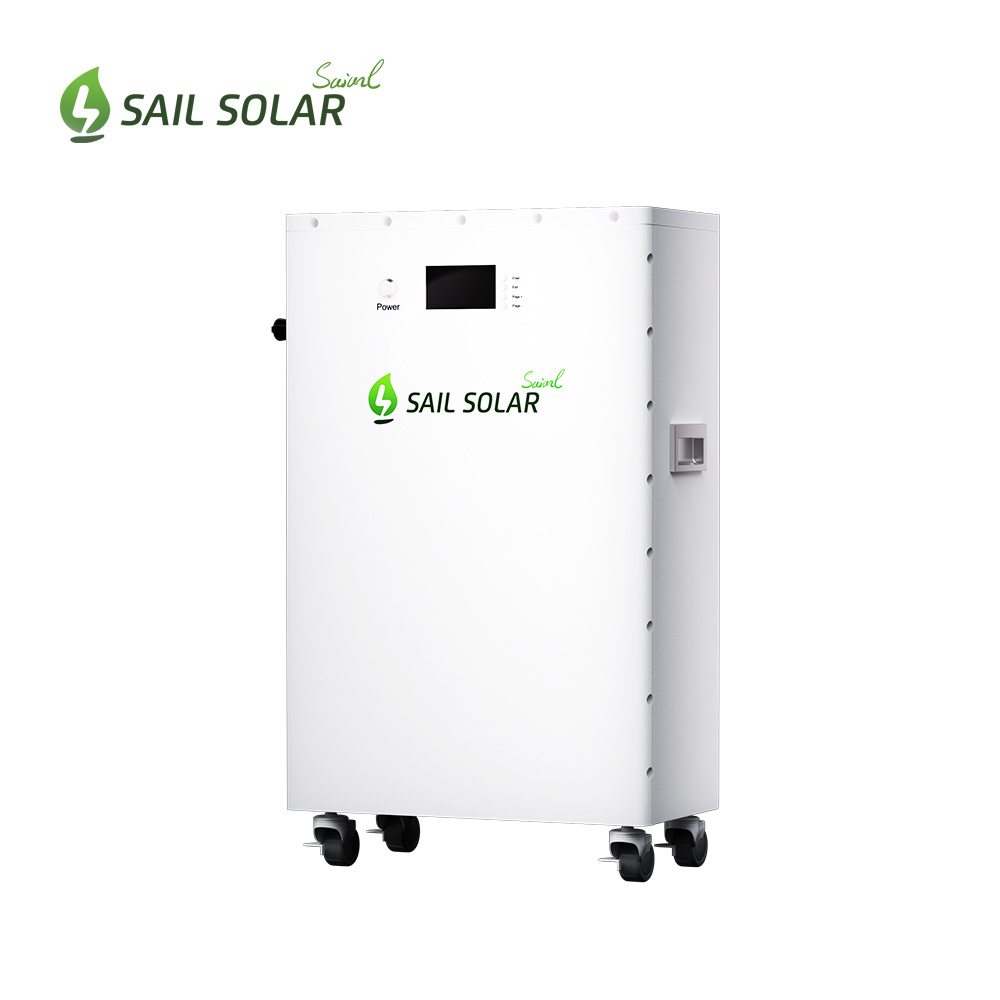

Sail Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!
Read More

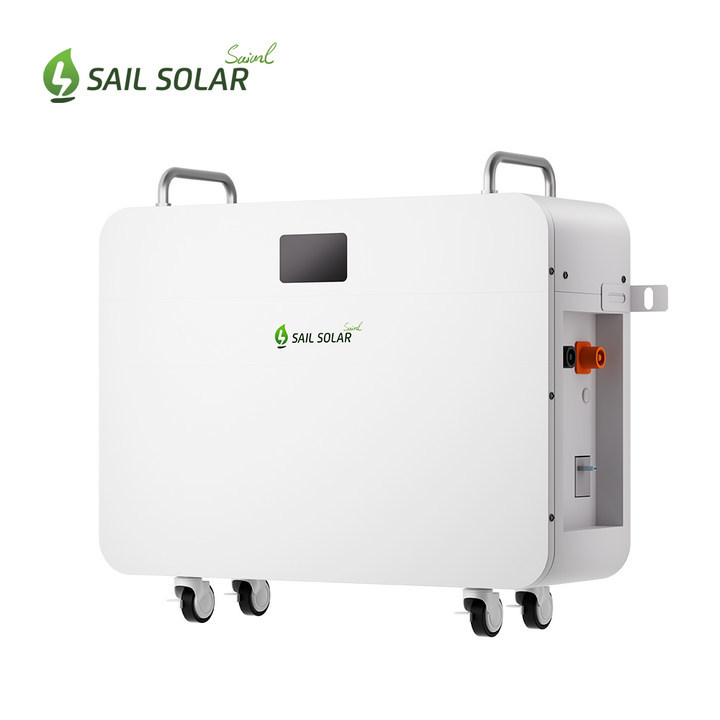

The Sail Solar Lithium Battery embodies a philosophy where sophisticated design meets intuitive control. Its compact chassis integrates a clear LCD display and tactile controls, while Bluetooth connectivity offers remote command. Every unit arrives with a full suite of accessories, ensuring a flawless installation. We extend an invitation for global OEM collaboration, offering a premium product worthy of carrying your signature.
Read More

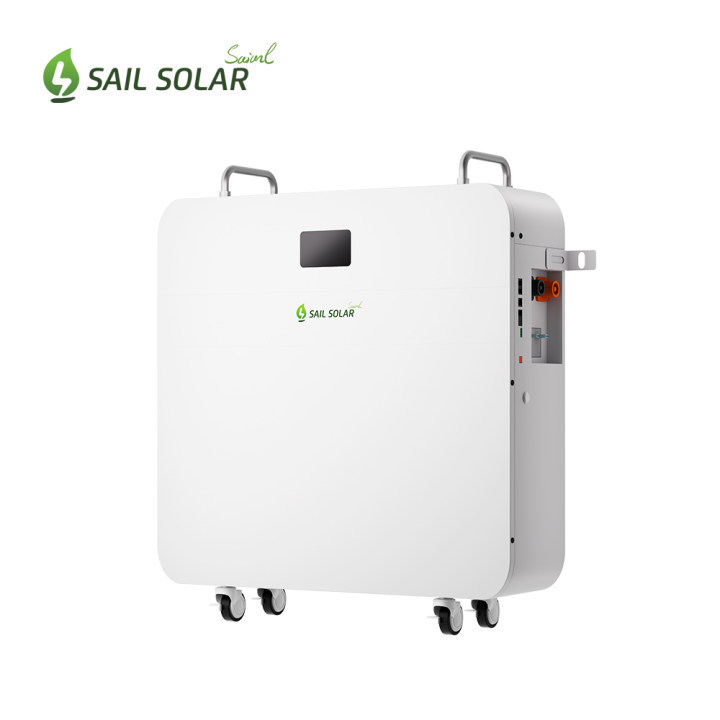

The Sail Solar Lithium Battery offers a compact design, LCD screen, Bluetooth monitoring, and a complete installation kit—all the features the market demands. We welcome global OEM partners to customize this product with your logo. Let's join forces to power the world together
