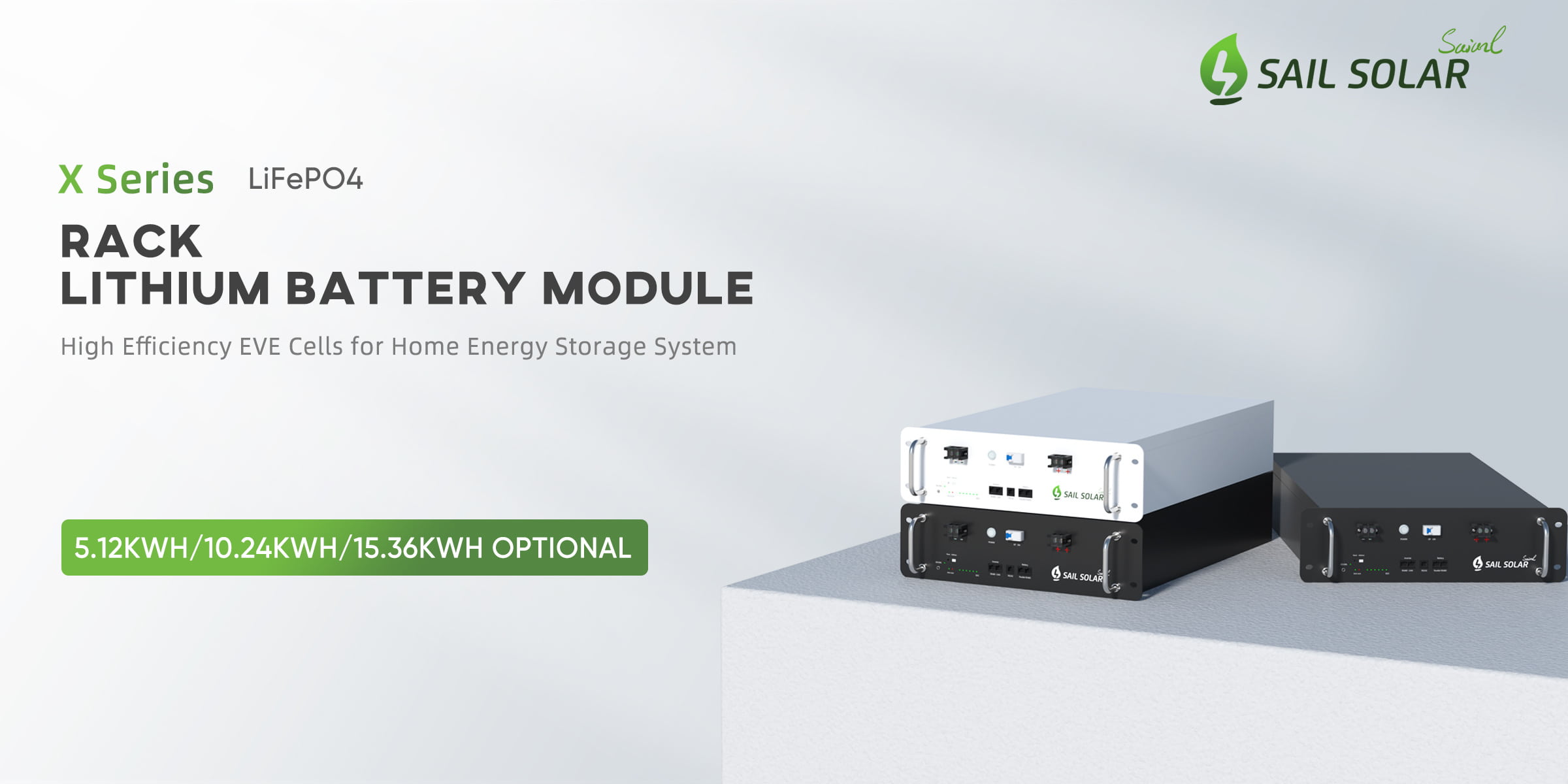

Sail Solar 300Ah Rack Battery 51.2V Stackable Energy Storage System
The SAS51300 model boasts an impressive cycle life of 6000 cycles at 0.5C and 80% D.O.D, making it a durable and long-lasting solution for various energy storage needs.
Item No :
X Series SAS51300Payment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
5 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP20Order MOQ :
1Nominal Capacity :
15.36KWhNominal Voltage :
51.2VType :
Lithium-ion BatteryThe Sail Solar 300Ah Rack Battery SAS51300 51.2V Stackable Energy Storage System, crafted by an advanced Lithium Battery Manufacturer from China , represents the pinnacle of energy storage technology. With a nominal voltage of 51.2V and a substantial nominal capacity of 15.36 kilowatt-hours, this lithium-ion battery is designed for high-performance and reliability. The battery’s internal resistance is a mere ≤50mΩ, ensuring efficient energy conversion and minimal power loss.
|
MODEL |
SAS51100 |
SAS51200 |
SAS51300 |
| Battery Type |
LiFePO4 |
||
| Nominal Voltage |
51.2V |
||
| Nominal Capacity |
100Ah |
200Ah |
300Ah |
| Energy |
5.12KWh |
10.24KWh |
15.36KWh |
| Internal Resistance |
≤50mΩ |
||
| Cycle Life |
6000 Cycles @ 0.5C 80%D.O.D |
||
| Months Self Discharge |
<3% |
||
| Efficiency of Charge |
99.5%@ 0.2C |
||
| Efficiency of Discharge |
96-99%@ 1C |
||
| Charge Voltage |
58.4±0.5V |
||
| Charge Mode |
CC/CV |
||
| Charge Current |
20A |
40A |
|
| Max Charge Current |
100Ah |
200Ah |
|
| Charge Cut-off Voltage |
58.4V |
||
| Continuous Discharge Current |
20A |
40A |
|
| Max Discharge Current |
100A |
200A |
|
| Discharge Cut-off Voltage |
43.2V |
||
| Charge Temperature |
0 to 45 ℃ |
||
| Discharge Temperature |
-20 to 55 ℃ |
||
| Storage Temperature |
-10 to 40 ℃ |
||
| Protection Grade |
IP20 |
||
| Cell & Method |
EVE 3.2V100Ah-16S1P |
EVE 3.2V100Ah-16S2P |
EVE 3.2V304Ah-16S1P |
| Terminal |
100A |
200A |
|
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
||
| BMS |
100A |
200A |
|
| Safety & Certification |
CE/IEC/UL/UN38.3/MSDS |
||
| Size (mm) |
550*482*133(D*W*H) |
550*482*133(D*W*H) |
550*482*133(D*W*H) |
| Net Weight (kg) | 47KG | 88KG | 114KG |
| Wooden Box Package Size (mm) |
940*555*405 |
||
| Quantity of Loading |
120pcs/20ft 240pcs/40ft |
||
Sail Solar Batteries: We've Got the Power. And the Smarts.
Plug-and-Play Power: Effortlessly compatible with major inverter brands, your perfect solar upgrade or new system starts here.
Control at Your Fingertips: Our intuitive app gives you real-time insights into your energy, so you're always in charge and always at ease.
The Smarter Choice: Unlock a future of efficient, reliable, and ready-for-anything energy.

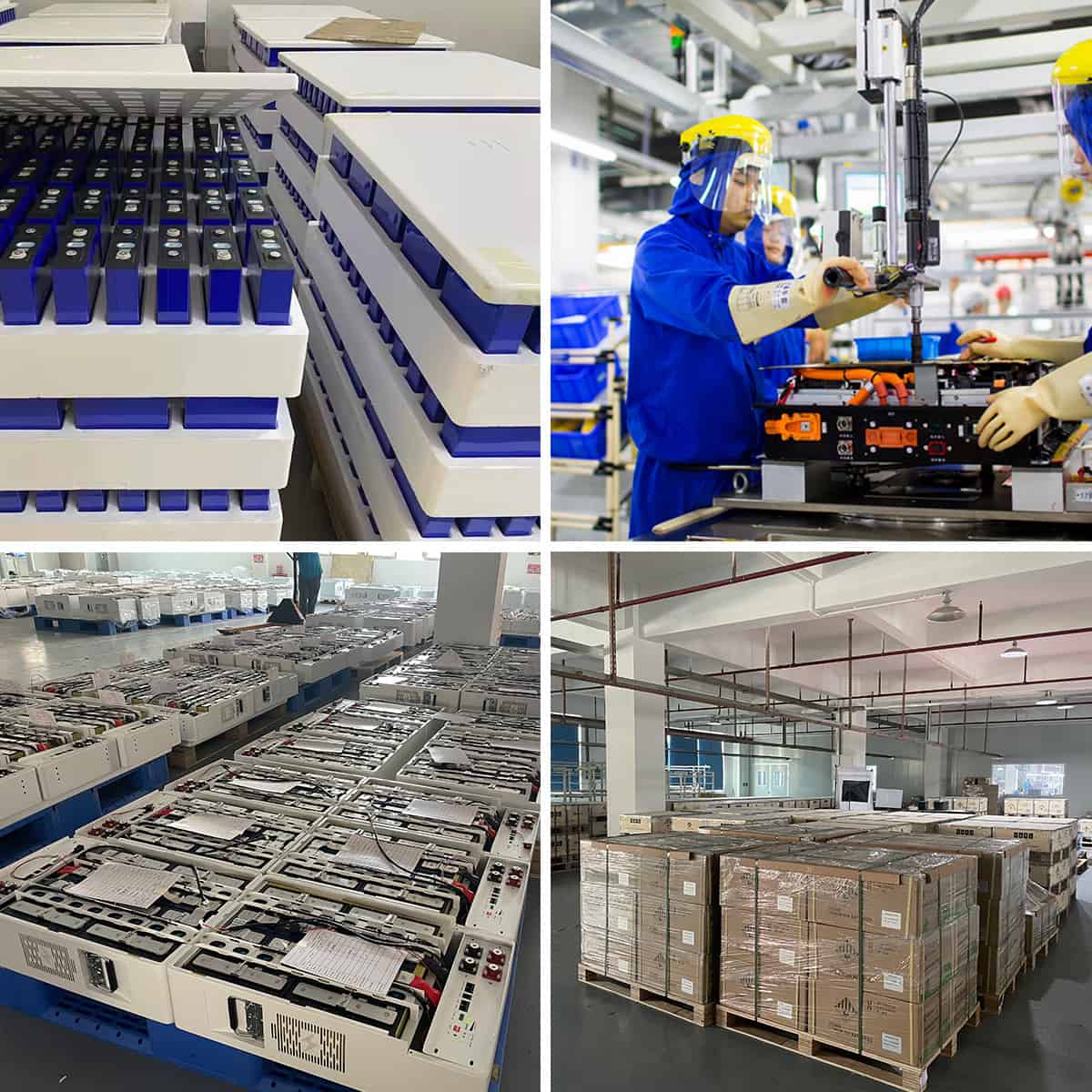

Precision Manufacturing, Perfected:
Our end-to-end intelligent system integrates advanced processes and proprietary innovations. From high-performance cell production to final packaging, we deliver uncompromising quality and radical efficiency at every stage.
The 5G-Connected Smart Factory:
Leveraging a private 5G network, our facility operates with real-time visibility and seamless communication. This enables data-driven decisions and adaptive production, allowing us to respond to your needs with unmatched agility and deliver products of exceptional precision.
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
Designed for multi-module installation, this battery features high compatibility BSM, ensuring seamless integration with leading inverter brands for reliable and efficient energy storage. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
