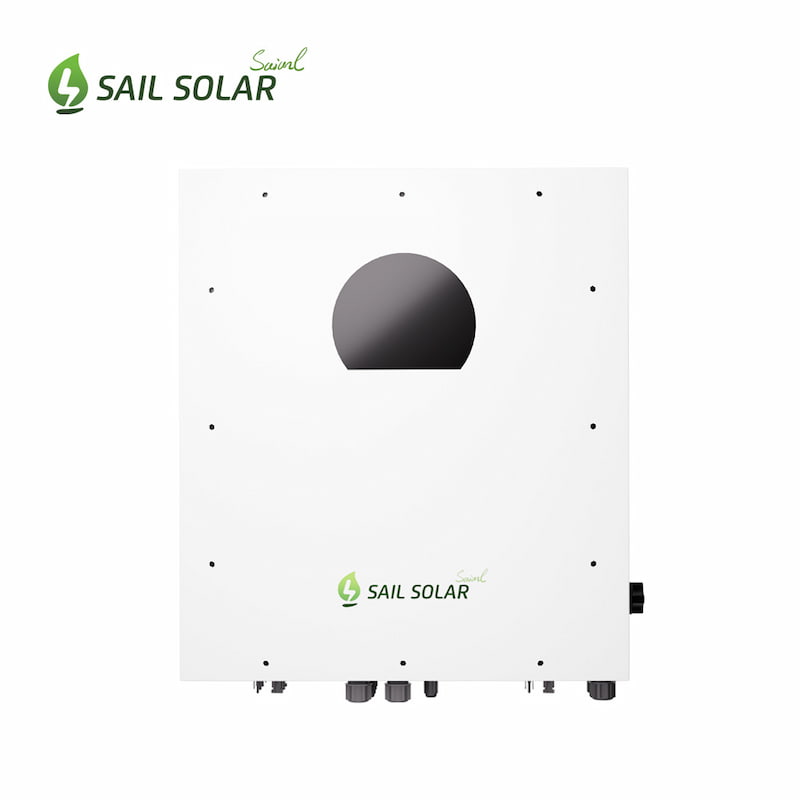

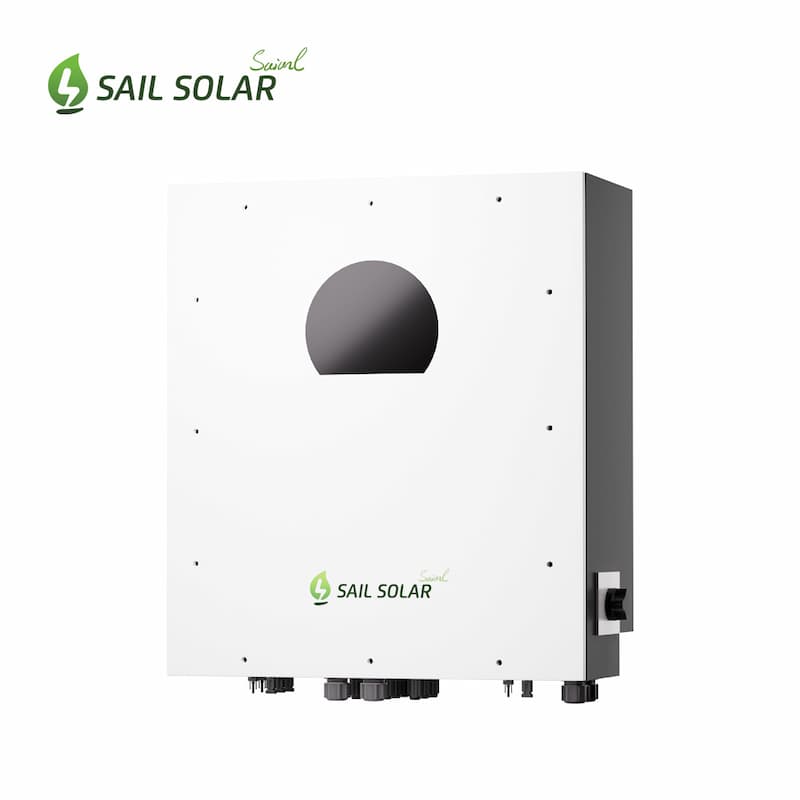

Sail Solar 30kw High Voltage 3 Phase MPPT Hybrid Solar Inverter for Industrial
Sail Solar new 30KW MPP-Tracker inverter. IP65 protection level, supports maximum 1000V DC input, and wide MPPT range. Safe power generation and long-term operation.
Item No :
Helios-30KLP3-EUTrademark :
OEM acceptableWiFi :
SupportMax Power :
30000WOutput Voltage :
230/400VWarranty :
5 YearsCertificate :
CE, IECProtection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterThe Sail Solar 30KW high-voltage, three-phase hybrid inverter is a rugged, industrial-grade inverter designed for maximum efficiency and reliable, long-term full-load operation. It provides pure sine wave power and seamlessly integrates with high-voltage battery systems, ensuring superior energy management for commercial applications.
Specification
|
MODEL |
Helios-30KLP3-EU
|
|
Maximum Pv Input Power |
40000 W
|
|
Rated Output Power |
30000 W
|
|
Maximum Charging Power |
30000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
720 VDC/ 1000 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
350 VDC ~ 900 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
3 / A:26A, B:26A, C:32A, D:26A
|
| Number of Strings Per MPP Tracker |
A:2, B:2, C:2 |
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230VAC(P-N)/400VAC(P-P)
|
|
Output Voltage Range
|
184 - 265 VAC per phase
|
|
Nominal Output Current
|
43.5 A per phase
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 280 VAC per phase
|
|
Maximum AC Input Current
|
50 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230VAC(P-N)/400VAC(P-P)
|
|
Efficiency (DC to AC)
|
97%
|
|
BATTERY & CHARGER
|
|
| Battery Voltage Range |
500~900VDC
|
|
Maximum Solar Charging Current
|
50 A
|
| Norminal Output Voltage |
230VAC(P-N)/400VAC(P-P)
|
| Efficiency (DC to AC) |
97%
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
255 x 660 x 750
|
|
Net Weight (kgs)
|
73
|
|
INTERFACE
|
|
| Intelligent Slot |
Optional SNMP and MODBUS
|
|
Communication Port
|
RS-232, USB, RS-485, Dry Contact, CAN, Wi-Fi, Bluetooth
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH
|
|
Operating Temperature
|
-25°C to 60°C(>45℃ De-rating)
|
|
PROTECTION & CERTIFICA TE
|
|
|
Safety
|
IEC/EN 61000, IEC/EN 62920, EN62477
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105, G99, IEC 61683, IEC 61727, IEC 62116
|
The new two MPP-Tracker inverters of the SAIL Solar Helios series are ideal for commercial rooftop installations. The Helios product series achieves a higher maximum efficiency of 98.8% and features unique design highlights: solid capacitor,fuse free and optional AFCl function. These three new features ensure a longer life-span and a higher safety level of operation allowing for an improved user experience. With its weight of just 73 kg and compact design, the inverters of the Helios series are easy to handle. With a maximum DC input voltage of 1000V, wider MPPT range, and a start-up voltage of 3500V, the Helios series guarantees an earlier generationof power and a longer working time in order to maximizelong-term returns and profitability in safe operating conditions.

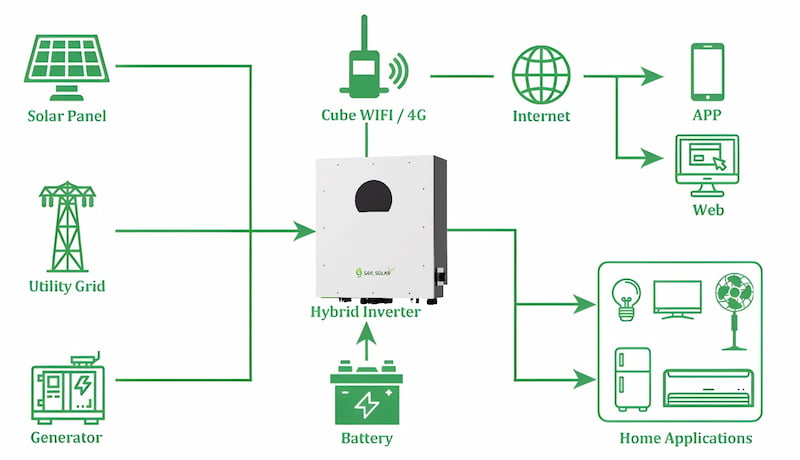

Helios 30kW Three Phase Hybrid solar Inverter is suitable for the household photovoltaic energy storage system. DC power generated by solar panels is stored in the battery through the inverter. When electricity is needed, it is first supplied by solar panels. If the light intensity cannot support the operation of solar panels, the inverter will convert the DC power of the battery into a single-phase power for home load. If the battery power is not enough, it can be quickly switched to power grid to supply power.

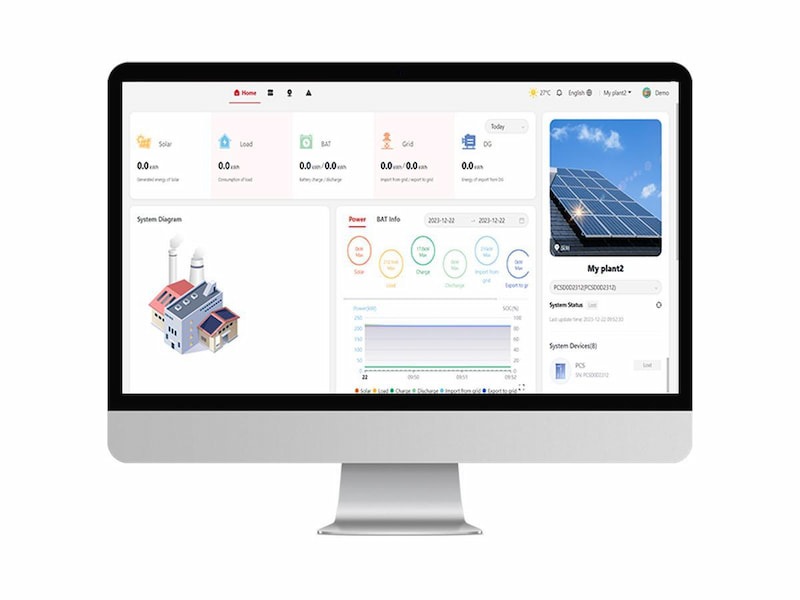

Helios 30kW Three Phase Hybridsolar Inverter has a colored LCD and a variety of communication functions. It can be remotely operated through the mobile phone APP, which is convenient and fast. It can output pure sine wave, run stable and reliable. Replaceable fan design enables customers to maintain safety and convenience.
