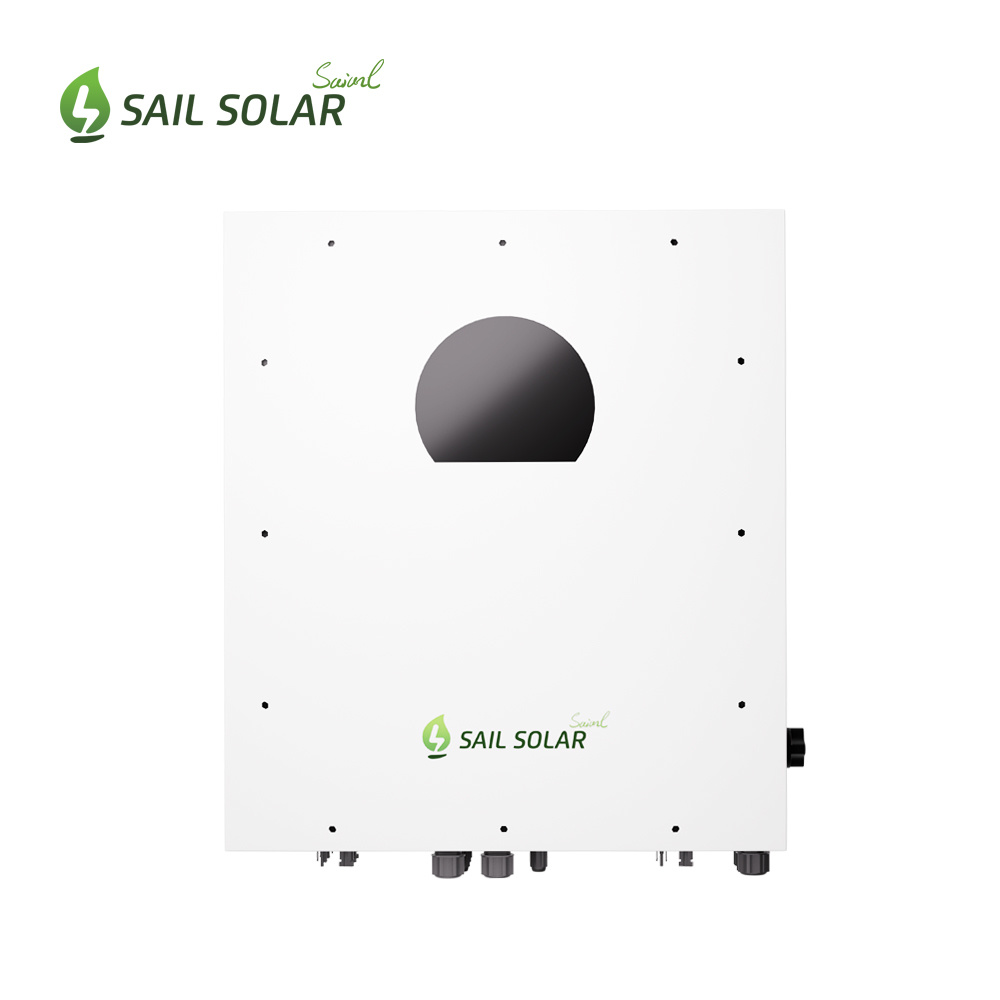

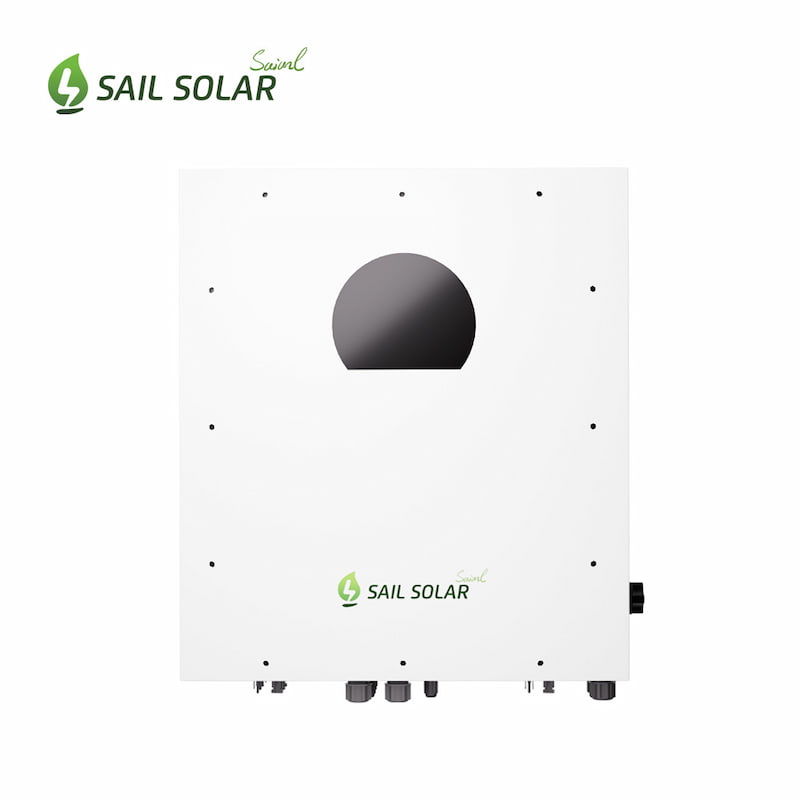

Sail Solar 50kw High Voltage Three Phase Hybrid Inverter for Commercial Applications
Sail Solar 50kW three-phase hybrid inverter combines high-performance power conversion with advanced hybrid capabilities. Its streamlined design makes it easy to install and intelligently manages solar, battery, and grid power to reliably support a wide range of energy loads.
Item No :
Helios-50KLP3-EUParallel :
4 UnitsMonitoring :
WifiMax Power :
50000WOutput Voltage :
230/400VWarranty :
5 YearsCertificate :
CE, IECProtection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterWith ingress protection to IP65, 50kW is suitable for use both in outdoor applications and indoor environments where atmospheric moisture and dust are present, 50kW also offers a dual Ac input power source compatible with generator power to guarantee uninterruptible power. It allows parallel operation up to 4 units for power expansion.
Specification
|
MODEL |
Helios-50KLP3-EU
|
|
Maximum Pv Input Power |
65000 W
|
|
Rated Output Power |
50000 W
|
|
Maximum Charging Power |
50000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
720 VDC/ 1000 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
350 VDC ~ 900 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
4 / A:32A, B:32A, C:32A, D:32A
|
| Number of Strings Per MPP Tracker |
A:2, B:2, C:2, D:2 |
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230VAC(P-N)/400VAC(P-P)
|
|
Output Voltage Range
|
184 - 265 VAC per phase
|
|
Nominal Output Current
|
47.5~51.5 Hz or 59.3~60.5 Hz
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 280 VAC per phase
|
|
Maximum AC Input Current
|
83 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230VAC(P-N)/400VAC(P-P)
|
|
Efficiency (DC to AC)
|
97%
|
|
BATTERY & CHARGER
|
|
| Battery Voltage Range |
500~800VDC
|
|
Maximum Solar Charging Current
|
65 A
|
| Norminal Output Voltage |
230VAC(P-N)/400VAC(P-P)
|
| Efficiency (DC to AC) |
97%
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
268 x 660 x 750
|
|
Net Weight (kgs)
|
110
|
|
INTERFACE
|
|
| Intelligent Slot |
Optional SNMP and MODBUS
|
|
Communication Port
|
RS-232, USB, RS-485, Dry Contact, CAN, Wi-Fi, Bluetooth
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH
|
|
Operating Temperature
|
-25°C to 60°C(>45℃ De-rating)
|
|
PROTECTION & CERTIFICA TE
|
|
|
Safety
|
IEC/EN 61000, IEC/EN 62920, EN62477
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105, G99, IEC 61683, IEC 61727, IEC 62116
|
Application

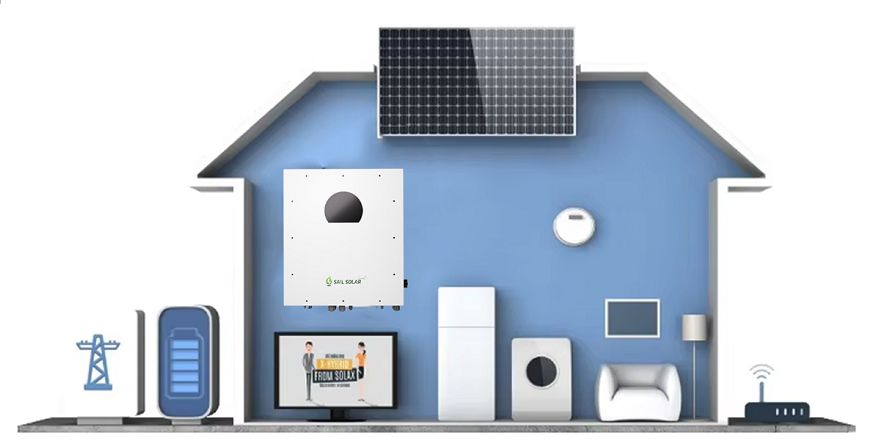

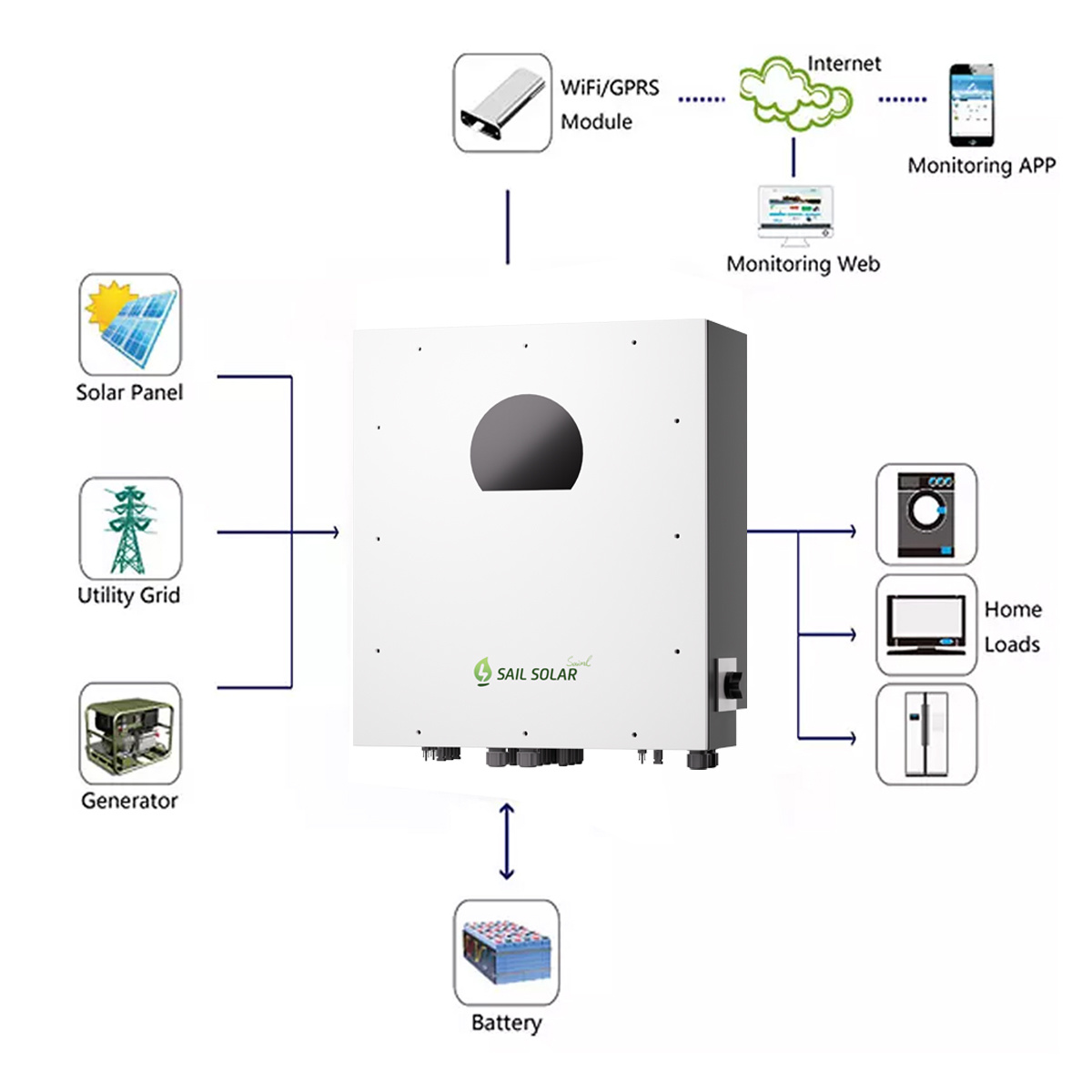

Helios series inverter is suitable for the household photovoltaic energy storage system. DC power generated by solar panels is stored in the battery through the inverter. When electricity is needed, it is first supplied by solar panels. If the light intensity cannot support the operation of solar panels, the inverter will convert the DC power of the battery into a single-phase power for home load. If the battery power is not enough, it can be quickly switched to power grid to supply power.
High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the Helios series supports parallel operation of up to fore units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.
