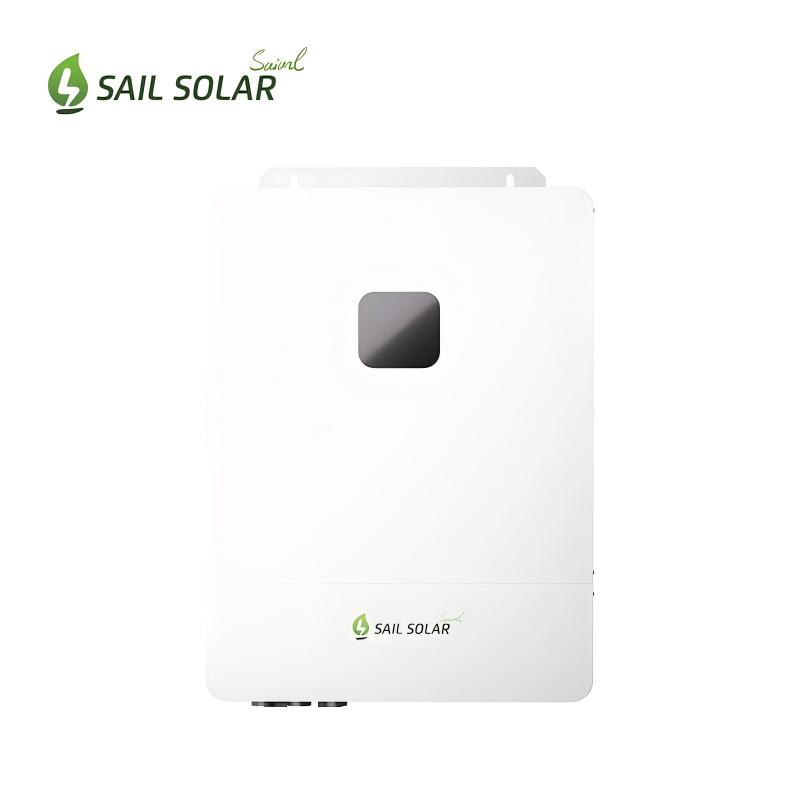

Sail Solar 5Kw 120V Single Phase Hybrid Solar Charger Inverter For Home
The Xihe-5KLV-US 120V single-phase solar charge inverter supports parallel operation of up to 6 devices, enables intelligent load control, and automatically connects and switches to independent AC power sources.
Item No :
Xihe-5KLV-USParallel :
6 UnitsMonitoring :
WifiMax Power :
5000WOutput Voltage :
120VWarranty :
5 YearsCommunication :
BMS (RS485)Order MOQ :
2Type :
Hybrid AC/DC InverterXihe-5KLV-US advanced MPPT technology device, boasting up to 99.9% efficiency and supporting up to 22A PV input current for high-power PV modules, offers 360 degrees of security from hardware to software and includes IEC safety approvals. It features an impressive 100A charging current, outputs high-quality pure sine wave AC power, allows for up to 6 units in parallel connection, and combines industrial design with a modern aesthetic look. Its user-friendly nature ensures easy installation and simplicity in use, while the exclusive Li-ion battery BMS dual activation and time-slot function optimize cost savings through peak-valley utilization.
Specification
|
MODEL |
Xihe-5KLV-US
|
|
INVERTER
|
|
|
Rated Output Power
|
5000W
|
|
Max.Peak Power
|
10000VA
|
|
Rated Output Voltage
|
120Vac（L/N/PE single-phase）
|
|
Load Capacity of Motors
|
4HP
|
|
Rated AC Frequency
|
50Hz/60Hz
|
|
Waveform
|
Pure Sine Wave
|
|
Switch Time
|
10ms（typical）
|
|
Parallel Capacity
|
1-6 units（single/split/three phase）
|
|
BATTERY
|
|
|
Battery Type
|
Li-ion / Lead-acid / User-define
|
|
Rated Battery Voltage
|
48Vdc
|
|
Voltage Range
|
40～60Vdc
|
|
Max.MPPT Charging Current
|
100A
|
|
Max.Mains/Generator Charging Current
|
40A
|
|
Max.Hybrid Charging Current
|
100A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
1
|
|
Max.PV Array Power
|
5,500W
|
|
Max.Input Current
|
22A
|
|
MAINS / GENERATOR INPUT
|
|
|
Input Voltage Range
|
90～140Vac
|
|
Frequency Range
|
50/60Hz
|
|
Bypass Overload Current
|
63A
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
92%
|
|
GENERAL
|
|
|
Dimensions
|
446.9*350*133mm (1.47*1.15*0.44ft)
|
|
Weight
|
14kg (30.86lb)
|
|
Protection Grade
|
IP20，indoor only
|
|
Operating Temperature Range
|
-10~55℃
|
|
Noise
|
≤60dB
|
|
Cooling Method
|
Forced air cooling with adjustable air speed
|
|
COMMUNICATION
|
|
|
Embedded Interfaces
|
RS485 / USB / Dry contact
|
|
External Modules (Optional)
|
Wi-Fi / GPRS
|
|
CERTIFICATION
|
|
|
Safety
|
CE(IEC 62109-1/2)
|
|
EMC
|
EN61000
|
|
RoHS
|
Yes
|
Xihe-5KLV-US solar inverter provides a continuous power output of 5kw, ensuring your essential appliances and devices remain operational even during extended off-grid periods. It supports 120V/240V split phase output, making it compatible with a wide range of household and industrial electrical systems. This feature ensures balanced power distribution across multiple circuits. In addition, it generates pure sine wave electricity, which is clean and stable. This is crucial for sensitive electronics and appliances, ensuring their longevity and optimal performance.
Equipped with a comprehensive LCD display and remote monitoring capabilities. Monitor real-time performance metrics and system status with ease, and adjust settings as needed for optimal operation .

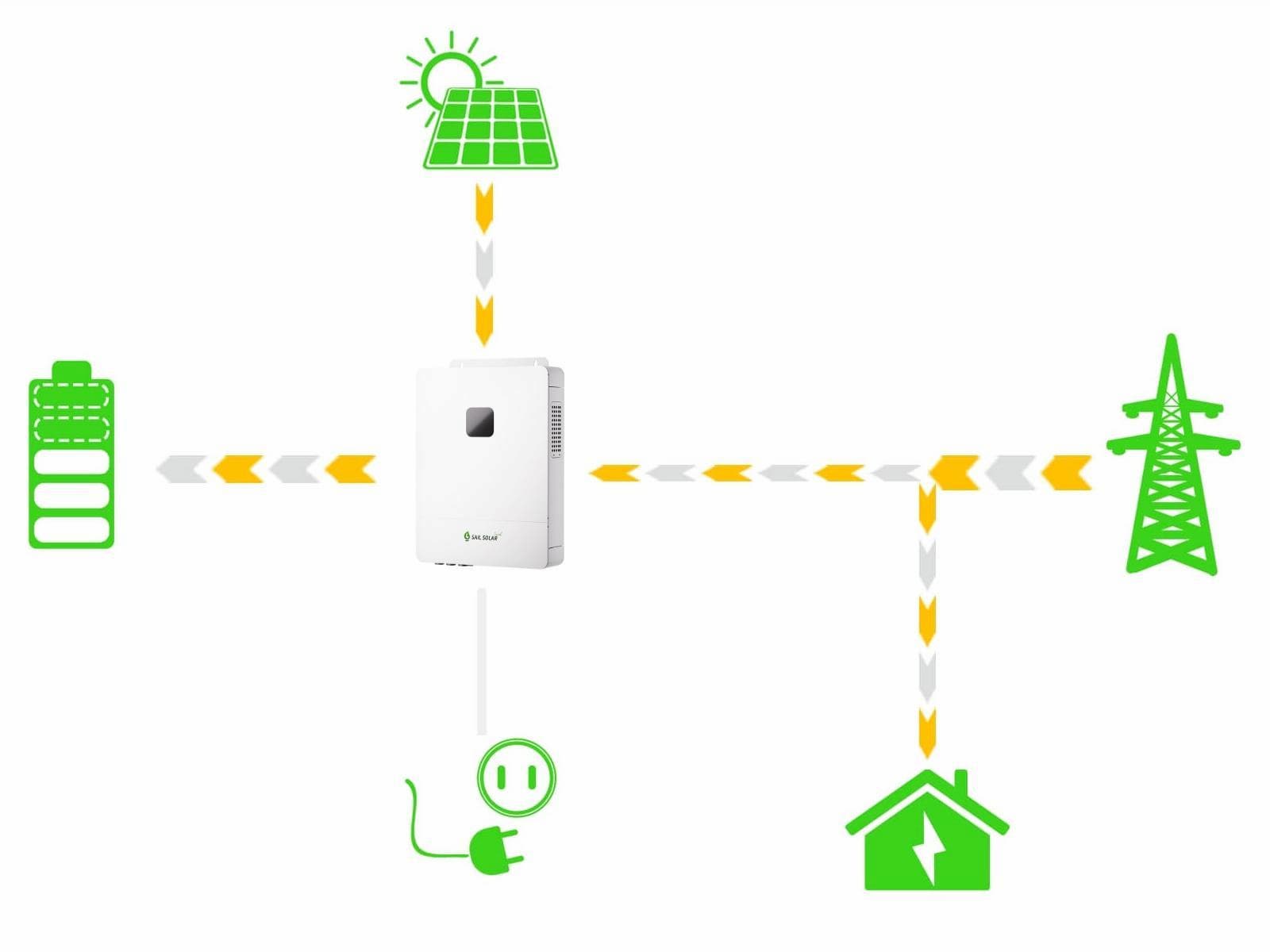

The 5kw hybrid solar inverter is designed to meet the growing number of home PV systems. Its conversion efficiency can reach up to 99% and charging current can reach 100A. It can support up to loads up to 5kw total power or 4HP motor loads, such as air conditioners, electric fans and so on. Its DC output is mainly from PV panels, and its AC in/out is mainly from the utility power, which can also be a gasoline or diesel generator.

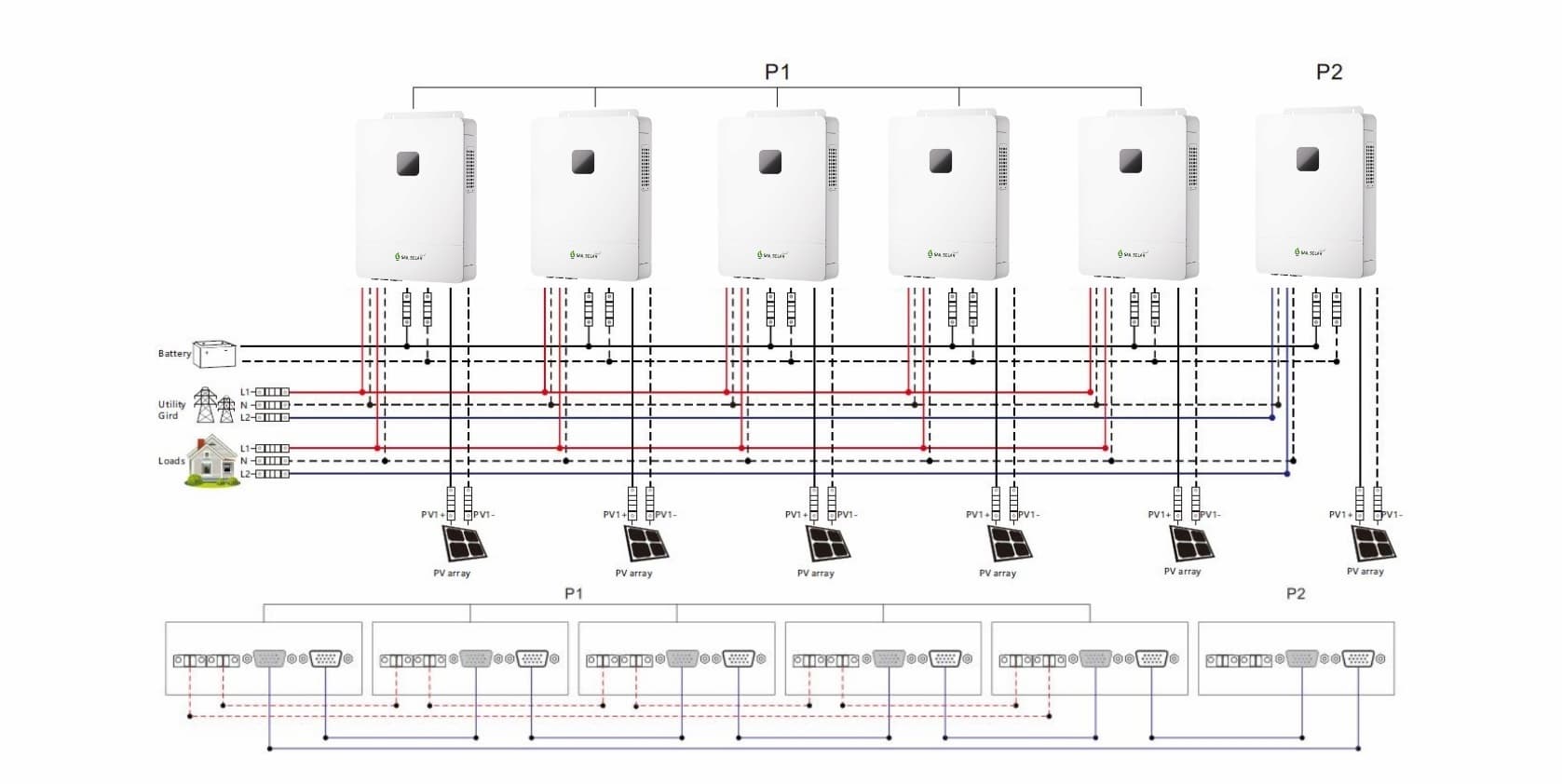

Solar inverter support up to 6 units in parallel connection,solar energy storage inverters can be connected in parallel to form two phases.
