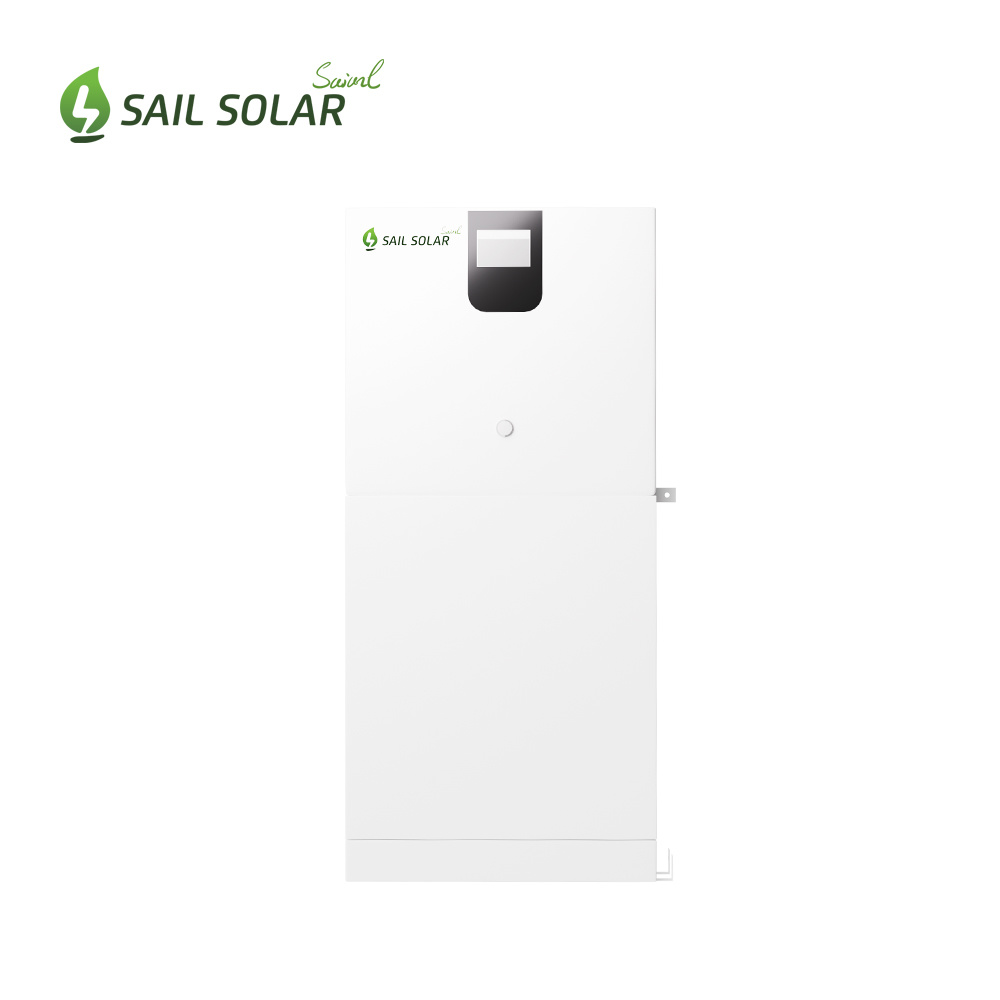

Sail Solar ESS Solution 10KW Inverter 15KWH 51.2V 300ah All in One Energy Storage System With Inverter

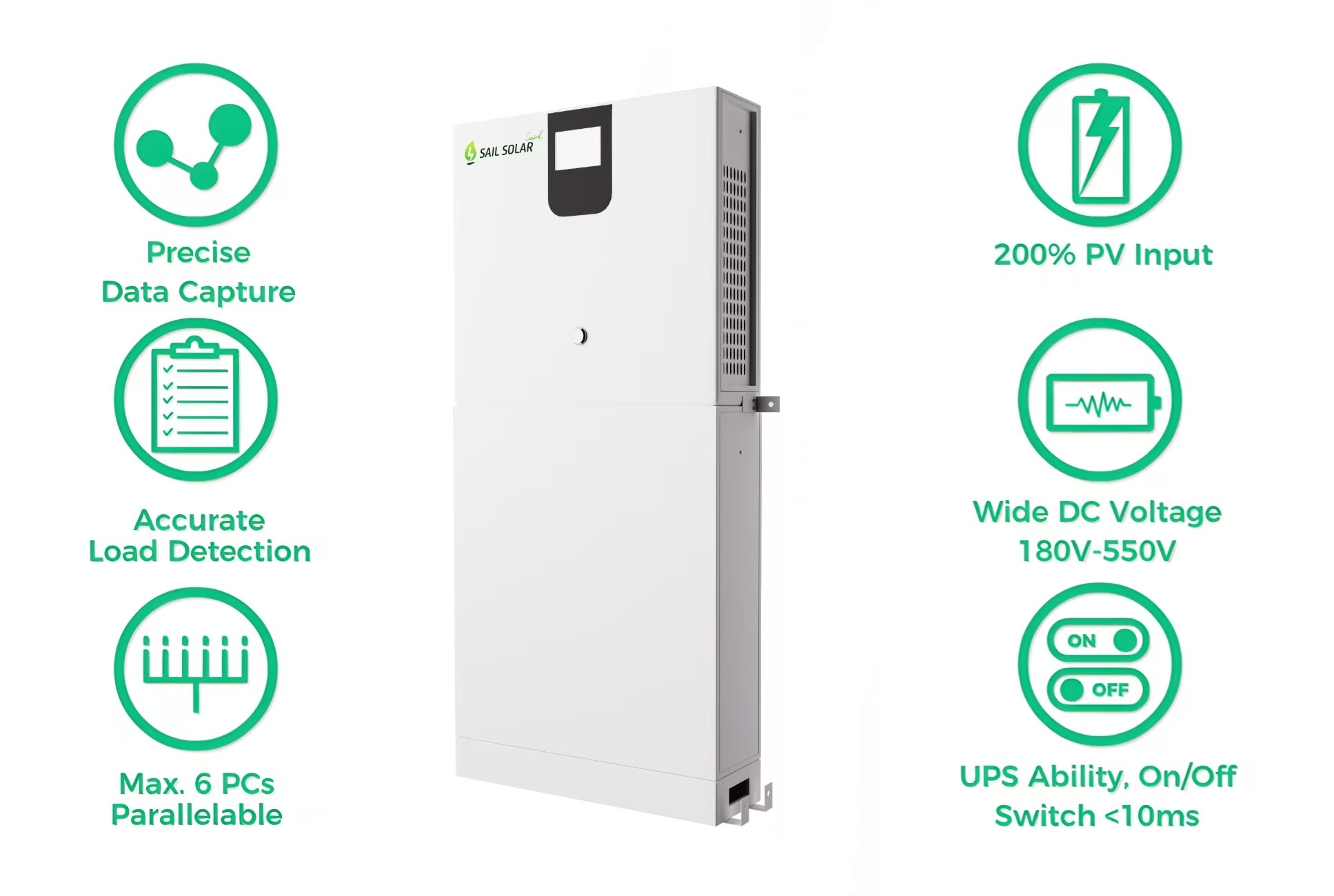

SAIL SOLAR All in One Home Use Solar Power Energy Storage System is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.
Support :
OEM, ODM, OBM, CustomizedWarranty (Inverter) :
5 YearsFrequency :
50HzMaximum Output Current :
30ACycle Life(+25°C 0.5C) :
DOD 80%,10+ years design lifeProtocol (optional) :
RS232/RS485/CAN/BLUETOOTH/WIFIAuto Switch Period :
<15msSolar Charge Type :
MPPTRated Output Power :
5000WCommunication Port :
CAN, RS485Protection Class :
IP20Brand :
Sail SolarType :
All-in-oneRevolutionize your energy management with the Sail Solar ESS Solution 10KW Inverter 15KWH 51.2V 300ah All in One Energy Storage System With Inverter, an advanced All In One ESS Solution from a trusted supplier. This cutting-edge system integrates a high-efficiency inverter with a robust energy storage unit, offering a seamless and compact solution for residential and commercial applications.
The advanced All In One ESS Solution spots a variety of features that set it apart, including an IP20 protection class for enhanced durability and a MPPT solar charge type for optimal energy harvesting. With an auto switch period of less than 15ms, this system ensures uninterrupted power supply, making it ideal for critical loads.
Specification
|
MODEL
|
AIO-5.12 |
AIO-10.24 |
AIO-15.36 |
AIO-20.48 |
|
Battery Type
|
LiFePO4 battery
|
|||
| No.of Moudle |
1 |
2 |
3 |
4 |
| Normal Capacity(25°c,0.2C) |
5.12kwh |
10.24kwh |
15.36kwh |
20.48kwh |
| Normal Voltage(dc) |
51.2V |
51.2V |
51.2V |
51.2V |
| Voltage Window(dc) |
44.8~57.6V
|
|||
| Size(W/D/H) |
1190x600x184mm
|
1800x600x184mm
|
1800x600x184mm
690x600x184mm
|
1800x600x184mm
1300x600x184mm
|
| Weight(Nw Kg) |
80 |
130 |
190 |
250 |
|
Normal charge/discharge current
|
50A |
50A |
50A |
50A |
| Max.charge/discharge current |
100A |
100A |
100A |
100A |
| Cycle Life(+25°C 0.5C) |
DOD 80%,10+ years design life
|
|||
| Storage Temperature |
-20℃~+60°C
|
|||
| Safety Standard |
CE/IEC/UL/UN38.3/MSDS
|
|||
|
Protection Grade
|
IP20
|
|||
|
Protocol (optional)
|
RS232/RS485/CAN/BLUETOOTH/WIFI
|
|||
|
Protection
|
Overchange protection、Overdischange protection、 Overcurrent protection
Shortcircuit protection、Overtemperature protection
|
|||
| Working Temperature |
Charge:0~45°c; Discharge:-10~45°C
|
|||
| Humidity |
5%~85%
|
|||
|
PV Charge
|
|
|||
| Solar Charge Type |
MPPT
|
|||
| Maximum Output Power |
5000W
|
|||
| PV Charging Current Range |
0~80A
|
|||
| PV Operating Voltage Range |
120~500V
|
|||
| MPPT Voltage Range |
120~450V
|
|||
| AC Charge |
|
|||
| Maximum Charge Power |
3150W
|
|||
| AC Charging Current Range |
0~60A
|
|||
| Rated input Voltage |
220/230Vac
|
|||
| Input Voltage Range |
90~280Vac
|
|||
|
AC Output
|
|
|||
| Rated Output Power |
5000W
|
|||
| Maximum Output Current |
30A
|
|||
| Frequency |
50Hz
|
|||
| Overload Current |
35A
|
|||
| Battery Inverter Output |
|
|||
|
Rated Output Power
|
5000W
|
|||
| Maximum Peak Power |
10KVA
|
|||
| Power Factor |
1 |
|||
| Rated Output Voltage (Vac) |
230Vac
|
|||
| Frequency |
50Hz
|
|||
| Auto Switch Period |
<15ms
|
|||
| THD |
<3%
|
|||

This 15kWh ESS (Energy Storage System) is an excellent solution for homeowners and small business owners looking to optimize their energy usage and save on electricity bills.
The inverter incorporates advanced MPPT technology for optimal energy conversion efficiency. Its compact design includes an intuitive LCD display for ease of operation, while the aluminum casing offers excellent heat dissipation. The system is easily expandable, offering flexibility for a wide range of applications.
This system ensures that essential appliances and devices stay powered when you need them most, providing peace of mind and energy security.
Additionally, this ESS is not just a storage unit—it seamlessly combines the functions of a solar inverter and battery in one. This innovative design reduces the need for multiple components, simplifying installation and enhancing reliability.
Whether for residential use or small commercial applications, this ESS offers a compact, space-saving, and cost-effective energy solution, allowing you to reduce your carbon footprint while enjoying significant energy savings.

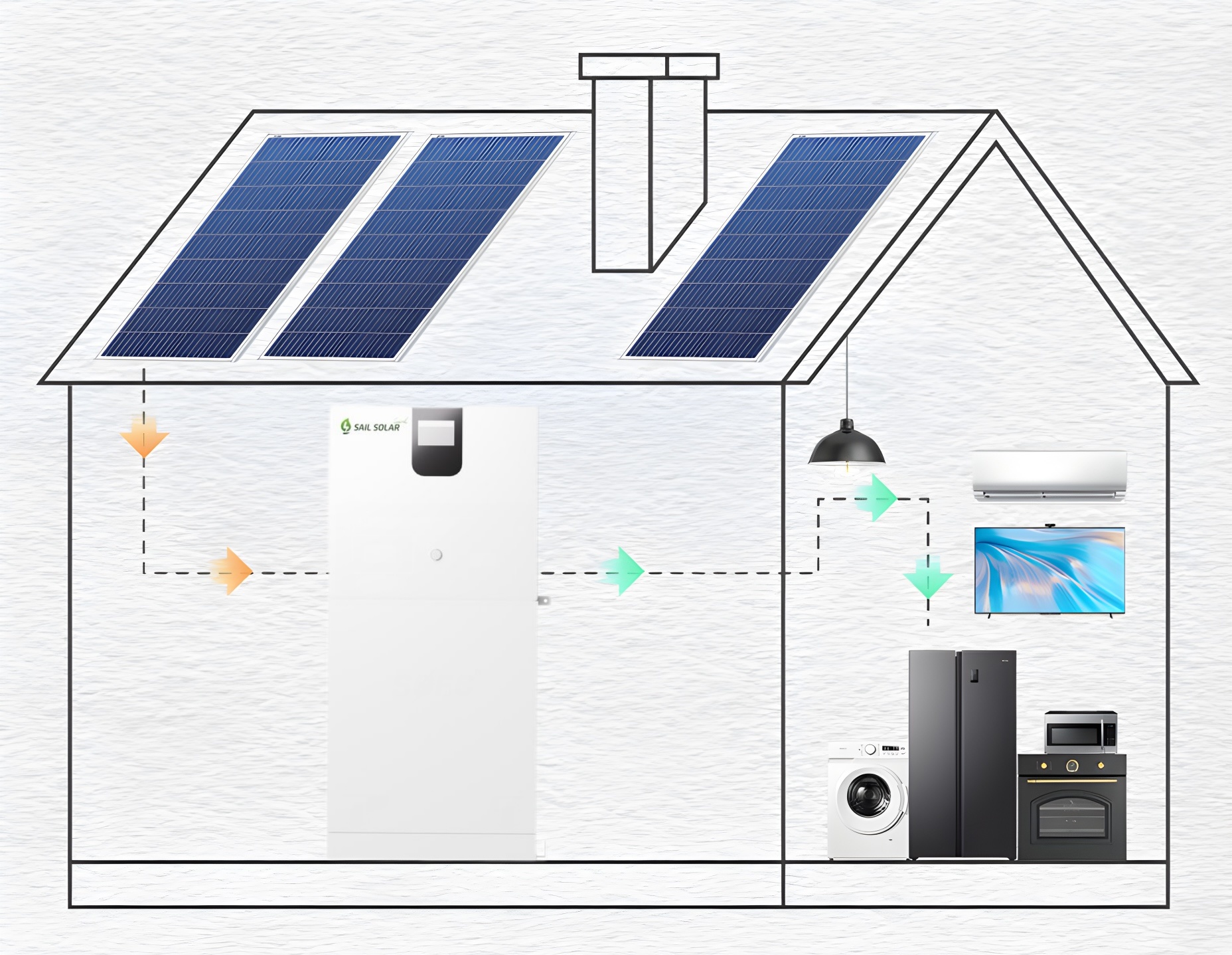

All-In-One Three-Phase Storage Solution - AIO Series: The Sail Solar energy storage solution is the ideal choice for residential PV+ESS (Photovoltaic + Energy Storage System) applications. This innovative system combines advanced technology and user-friendly design to meet the growing demand for efficient, sustainable energy management. It features a robust 3-phase AC output with a capacity of 10KW, ensuring reliable and balanced power delivery for residential needs. The energy storage capacity is highly flexible, offering configurations of 10.2kWh, 15.3kWh, or 20.4kWh, allowing homeowners to tailor the system to their specific energy requirements. With its seamless integration of solar power generation and storage, the AIO Series provides an intelligent, all-in-one solution for enhancing energy independence and reducing electricity costs.
