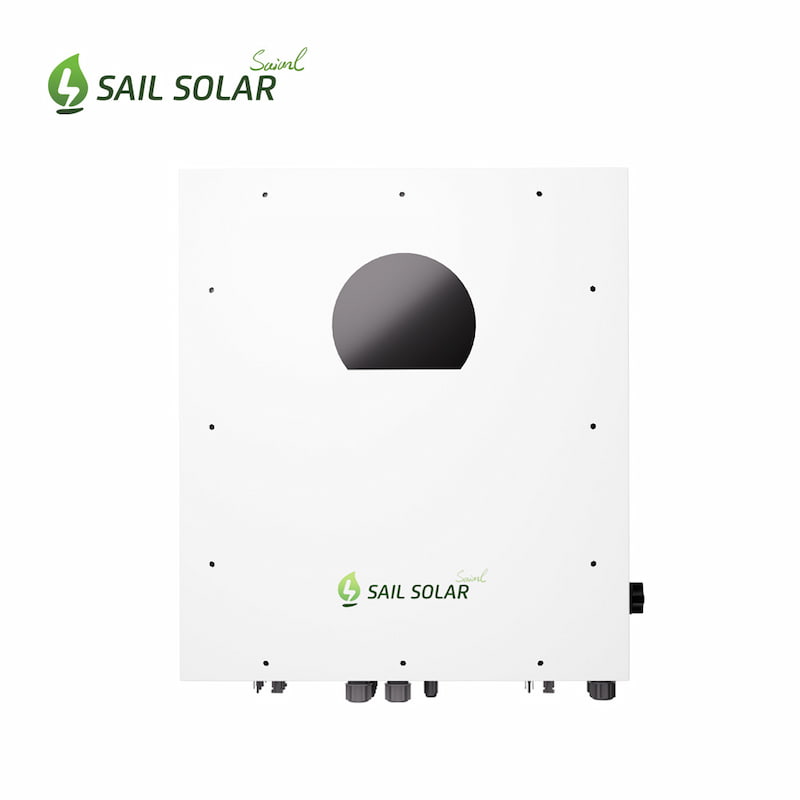

Sail Solar Factory Wholesale 30KW Solar Hybrid Inverter with MPPT for Solar Energy System

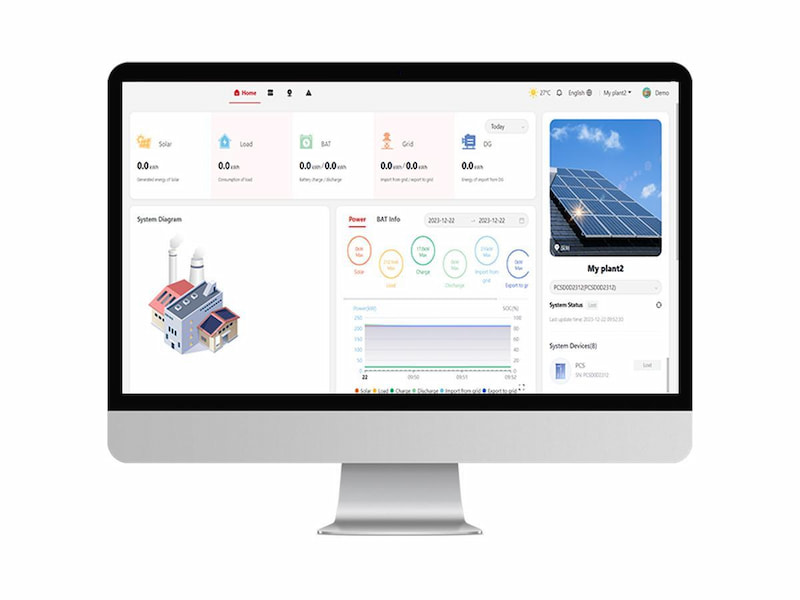

The SAIL SOLAR 30kW three-phase hybrid inverter integrates remote real-time monitoring capabilities, allowing users to monitor system status anytime, anywhere via a cloud platform. It fully complies with international safety and grid-connection certification standards, ensuring exceptional stability and absolute safety during 24/7 operation.
Item No :
Helios-30KLP3-EUWiFi :
SupportParallel :
4 UnitsMax Power :
30000WOutput Voltage :
230/400VWarranty :
5 YearsProtection :
IP65Order MOQ :
1Type :
Hybrid AC/DC InverterAs a core component of the energy system, this 30kW inverter supports both on-grid and off-grid use, multiple battery types, and has comprehensive hardware protection.
|
MODEL |
Helios-30KLP3-EU
|
|
Maximum Pv Input Power |
40000 W
|
|
Rated Output Power |
30000 W
|
|
Maximum Charging Power |
30000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
720 VDC/ 1000 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
320 VDC / 350 VDC
|
|
MPP Voltage Range
|
350 VDC ~ 900 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
3 / A:26A, B:26A, C:32A, D:26A
|
| Number of Strings Per MPP Tracker |
A:2, B:2, C:2 |
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230VAC(P-N)/400VAC(P-P)
|
|
Output Voltage Range
|
184 - 265 VAC per phase
|
|
Nominal Output Current
|
43.5 A per phase
|
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
120 - 140 VAC / 180 VAC per phase
|
|
Acceptable Input Voltage Range
|
170 - 280 VAC per phase
|
|
Maximum AC Input Current
|
50 A
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
230VAC(P-N)/400VAC(P-P)
|
|
Efficiency (DC to AC)
|
97%
|
|
BATTERY & CHARGER
|
|
| Battery Voltage Range |
500~900VDC
|
|
Maximum Solar Charging Current
|
50 A
|
| Norminal Output Voltage |
230VAC(P-N)/400VAC(P-P)
|
| Efficiency (DC to AC) |
97%
|
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
255 x 660 x 750
|
|
Net Weight (kgs)
|
73
|
|
INTERFACE
|
|
| Intelligent Slot |
Optional SNMP and MODBUS
|
|
Communication Port
|
RS-232, USB, RS-485, Dry Contact, CAN, Wi-Fi, Bluetooth
|
|
ENVIRONMENT
|
|
|
Humidity
|
0 ~ 100% RH
|
|
Operating Temperature
|
-25°C to 60°C(>45℃ De-rating)
|
|
PROTECTION & CERTIFICA TE
|
|
|
Safety
|
IEC/EN 61000, IEC/EN 62920, EN62477
|
|
Protection Grade
|
IP65
|
|
Grid Connection Standard
|
NRS097-2-1:2017, VDE-AR-N4105, G99, IEC 61683, IEC 61727, IEC 62116
|
Sail Solar Helios Hybrid 30KW is the single best 3-phase inverter we offer at the moment with 230VAC(P-N)/400VAC(P-P) output and it is designed mainly for industrial application with a DC nominal base voltage of 720V. Unlike traditional industrial size UPS which relies mainly on grid power during normal operation and battery for backup, the Hybrid 30KW comes integrated with solar input which allows smart energy management by utilizing solar, battery and utility powers. Similar to all of our hybrid-line inverters (grid feed capable), the Hybrid 30KW can also send any excess solar power to grid.

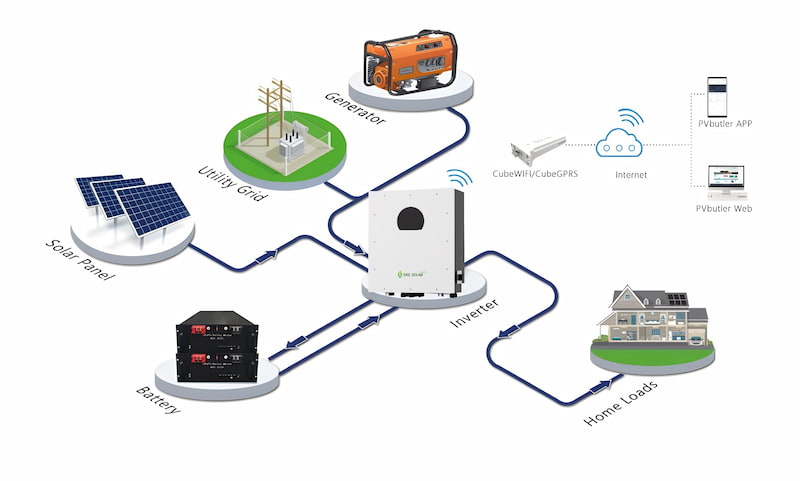

Helios 30kW Three Phase Hybrid solar Inverter is suitable for the household photovoltaic energy storage system. DC power generated by solar panels is stored in the battery through the inverter. When electricity is needed, it is first supplied by solar panels. If the light intensity cannot support the operation of solar panels, the inverter will convert the DC power of the battery into a single-phase power for home load. If the battery power is not enough, it can be quickly switched to power grid to supply power.
With a power output of 30KW, this inverter is suitable for powering large buildings, factories, or even small communities. It is designed to be highly efficient, with a conversion efficiency of up to 98%, which helps to maximize the use of solar energy and reduce energy costs.
