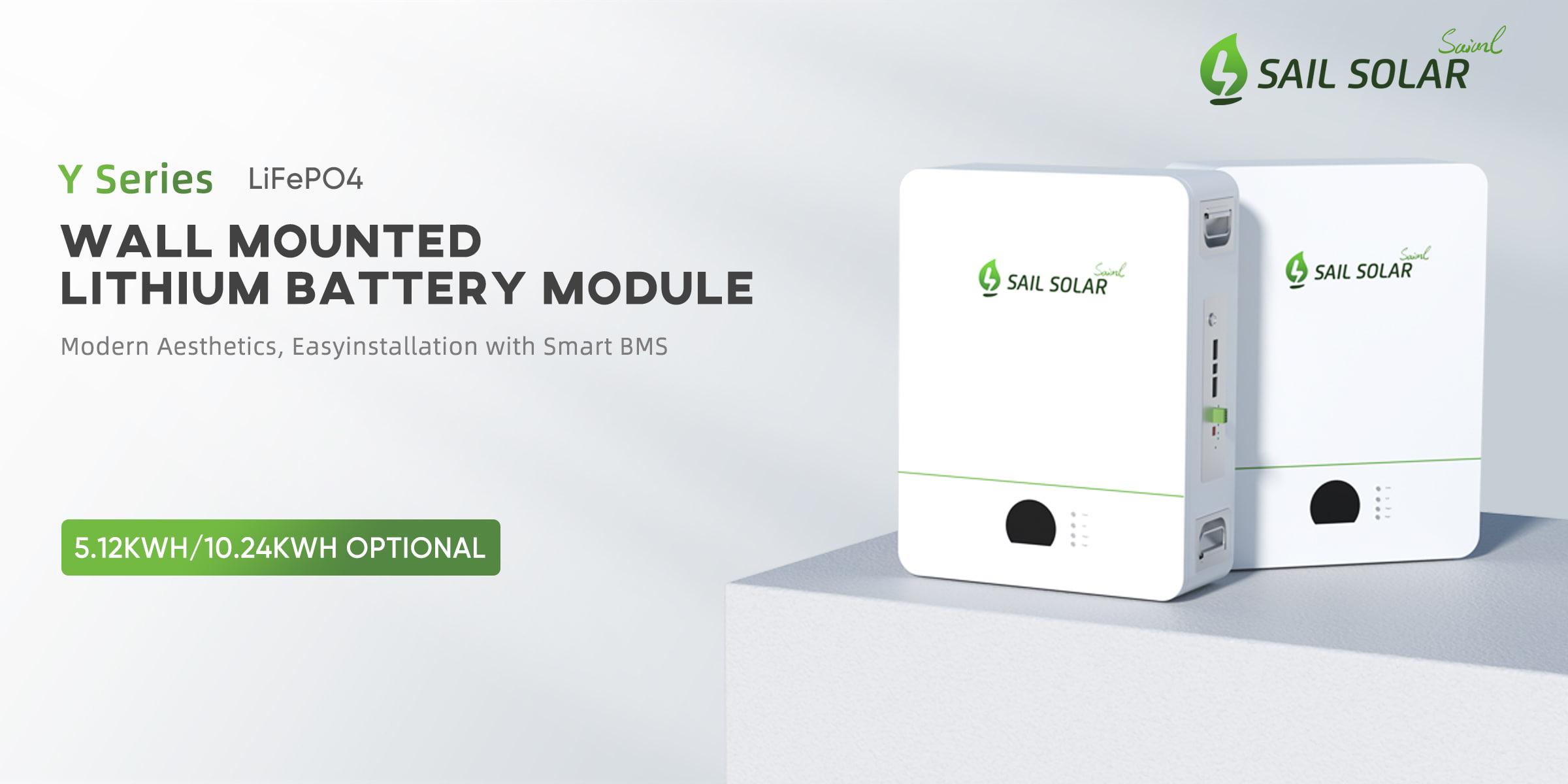

Sail Solar SAS51200-WM Wall Battery 51.2V 200Ah LiFePO4 for Solar Home Storage
6000 cycles @ DOD80%
Bluetooth/WIFI optional
LCD display screen (touch screen optional)
BMS 100A/150A/200A optional
Item No :
Y Series SAS51200-WMPayment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
5 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP64Order MOQ :
1Nominal Capacity :
10.24KWhNominal Voltage :
51.2VType :
Lithium-ion BatteryThe 51.2v 200Ah wall mount lithium battery from Sail Solar has 10kwh energy. By stacking different numbers of battery modules, you will get the capacities and powers you need. It can be used as an uninterruptible power supply day and night in base stations, UPS, communications, solar energy storage, and other places.
|
MODEL |
SAS51100-WM |
SAS51200-WM |
| Battery Type |
LiFePO4 |
|
| Nominal Voltage |
51.2V |
|
| Nominal Capacity |
100Ah |
200Ah |
| Energy |
5.12KWh |
10.24KWh |
| Internal Resistance |
≤50mΩ |
|
| Cycle Life |
6000 Cycles @ 0.5C 80%D.O.D |
|
| Months Self Discharge |
<3% |
|
| Efficiency of Charge |
99.5%@ 0.2C |
|
| Efficiency of Discharge |
96-99%@ 1C |
|
| Charge Voltage |
58.4±0.5V |
|
| Charge Mode |
CC/CV |
|
| Charge Current |
20A |
40A |
| Max Charge Current |
100Ah |
200Ah |
| Charge Cut-off Voltage |
58.4V |
|
| Continuous Discharge Current |
20A |
40A |
| Max Discharge Current |
100A |
200A |
| Discharge Cut-off Voltage |
43.2V |
|
| Charge Temperature |
0 to 45 ℃ |
|
| Discharge Temperature |
-20 to 55 ℃ |
|
| Storage Temperature |
-10 to 40 ℃ |
|
| Protection Grade |
IP20(IP54 OPTIONAL) |
|
| Cell & Method |
EVE 3.2V100Ah-16S1P |
EVE 3.2V100Ah-16S2P |
| Size (mm) |
600*440*168(D*W*H) |
780*505*168(D*W*H) |
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
|
| BMS |
100A |
200A |
| Safety & Certification |
CE/IEC/UL/UN38.3/MSDS |
|
| Terminal |
100A |
200A |
| Net Weight (kg) |
51KG |
90KG |
| Wooden Box Package Size (mm) |
940*555*405 |
|
| Quantity of Loading |
120pcs/20ft 240pcs/40ft |
|

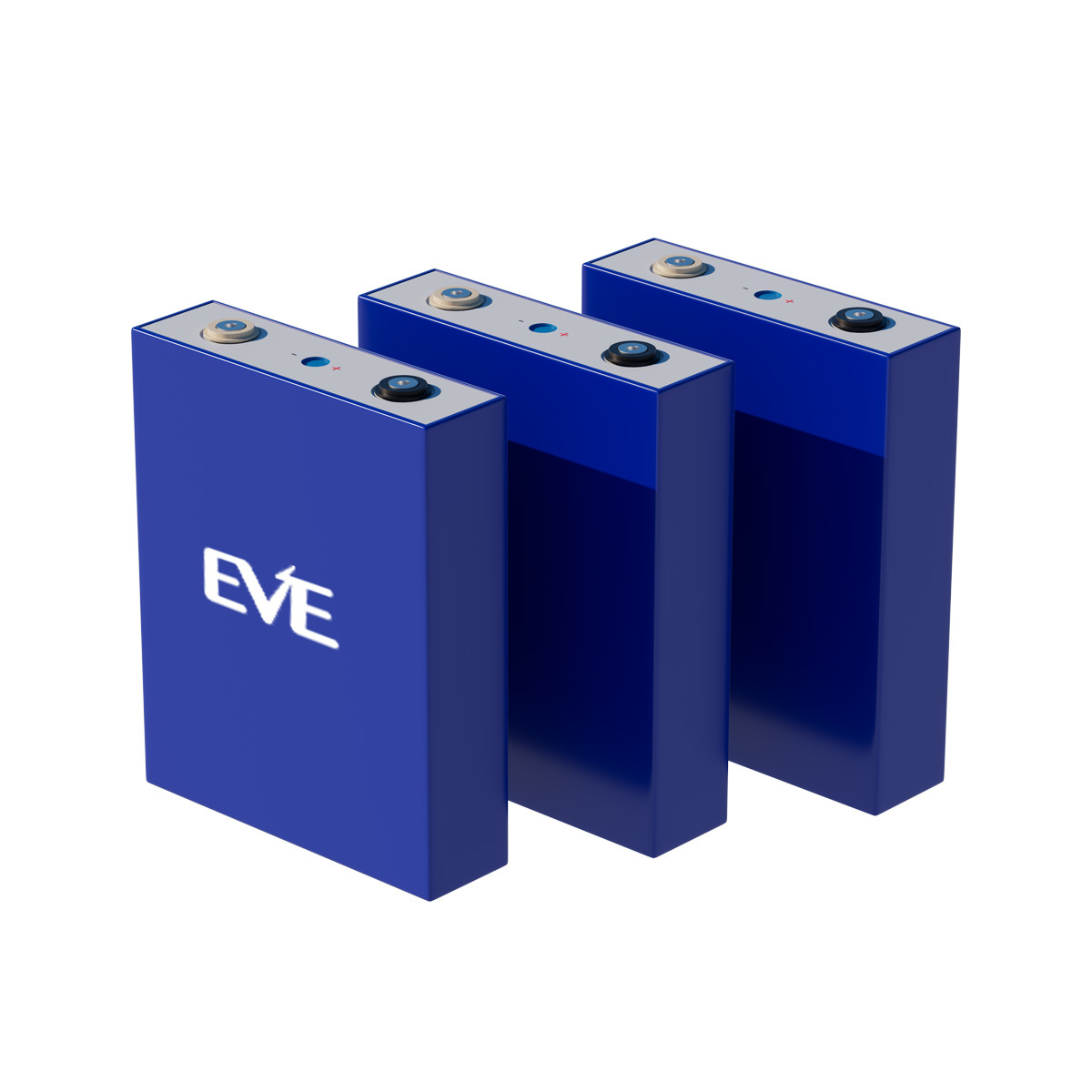

Sail Solar lithium batteries are powered by premium EVE cells, engineered to deliver superior performance and exceptional reliability across a wide spectrum of energy storage needs. A key advantage is their outstanding low-temperature operation, ensuring a stable and consistent power supply for 24/7 systems, even in harsh climatic conditions. By integrating these high-caliber cells, we provide the ultimate solution for maximizing the efficiency, durability, and ROI of your green energy investment.

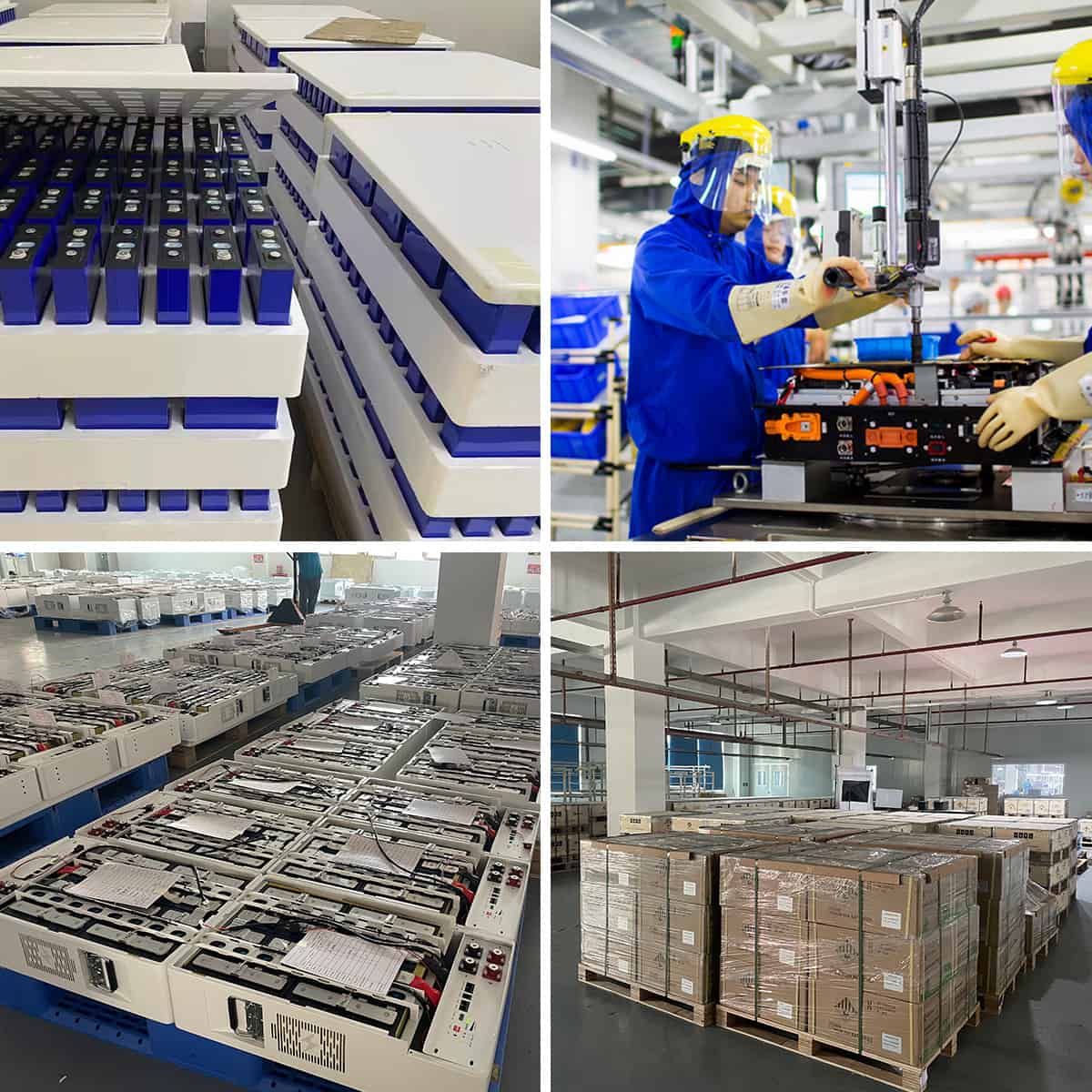

At Sail Solar, our industry-leading intelligent manufacturing system integrates cutting-edge technologies and advanced processes. Driven by a top-tier R&D team committed to continuous innovation, we achieve breakthroughs in equipment and manufacturing, ensuring unmatched quality and efficiency from cell production to final assembly.
Our 5G-enabled smart factory takes this further. It allows for real-time monitoring and seamless communication across all production units. This high-speed backbone enables rapid, data-driven decisions and adaptive manufacturing, ensuring we respond to market demands with unparalleled agility and precision.
Our lithium battery products have been exported to more than 100 countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, Philippines, Saudi Arabia, South Africa, Nigeria. Products comply with mainstream market certifications, including UL, CE, ISO, MSDS, UN38.3, etc.
After-Sales Service
● " 7/24 " After-Sales Support
● 7 days a week, 24 hours a day: Ready to respond and solve problems immediately—Sail Solar's commitment to worry-free after-sales service.
● Service Email: info@sailsolaress.com
Service Process
01
Submit Service Requests
Submit your service requests at any time via email, online customer service, or mobile app.
02
Rapid Response
Our service team will immediately respond to your requests and communicate the details of the issue with you.
03
On-Site Service or Remote Support
Depending on the nature of the problem, provide on-site service or remote technical support.
04
Problem Resolution
Our goal is to completely resolve your issue within 24 hours.
05
Follow-Up
After the problem is resolved, our team will continue to follow up to ensure your satisfaction with the service results.
Designed for multi-module installation, this battery features high compatibility BSM, ensuring seamless integration with leading inverter brands for reliable and efficient energy storage. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
Read More
Upgrade your energy storage with the Sail Solar vertical home battery system today! Enjoy easy installation, exceptional performance, and the flexibility to expand your capacity up to 240 kWh. Perfect for both residential and small workshop use, this eco-friendly system ensures reliable power backup with its cutting-edge technology. Join over 6000 satisfied families who have already made the switch. Contact us now to learn more.
Read More
Sail Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!
Read More
The Sail Solar Lithium Battery embodies a philosophy where sophisticated design meets intuitive control. Its compact chassis integrates a clear LCD display and tactile controls, while Bluetooth connectivity offers remote command. Every unit arrives with a full suite of accessories, ensuring a flawless installation. We extend an invitation for global OEM collaboration, offering a premium product worthy of carrying your signature.
Read More
The Sail Solar Lithium Battery offers a compact design, LCD screen, Bluetooth monitoring, and a complete installation kit—all the features the market demands. We welcome global OEM partners to customize this product with your logo. Let's join forces to power the world together
Read More
Sail Solar is dedicated to delivering streamlined energy storage. Our lithium battery's compact form, integrated display, and smart Bluetooth monitoring provide a seamless user experience. Designed for easy setup with included accessories, it's the smart choice for modern power needs. We invite OEM collaborations worldwide to bring this integrated solution to your market under your brand.
Read More
The Sail Solar Lithium battery integrates a compact design, an intuitive LCD screen, convenient setting buttons, and Bluetooth smartphone monitoring. It arrives as a complete kit with all necessary cables and accessories for immediate installation.
Read More
Sail Solar Lithium Battery: Your Plug & Play Power Hub! Imagine a powerful energy solution that's incredibly user-friendly. Our compact battery packs an intuitive LCD interface with easy-setting buttons. Plus, with built-in Bluetooth, you can monitor your power anytime, right from your smartphone! Everything you need for a quick setup is right in the box. Want to Sell This Under Your Own Brand? We offer OEM services and welcome worldwide partners to collaborate with custom logo designs!
Read More
