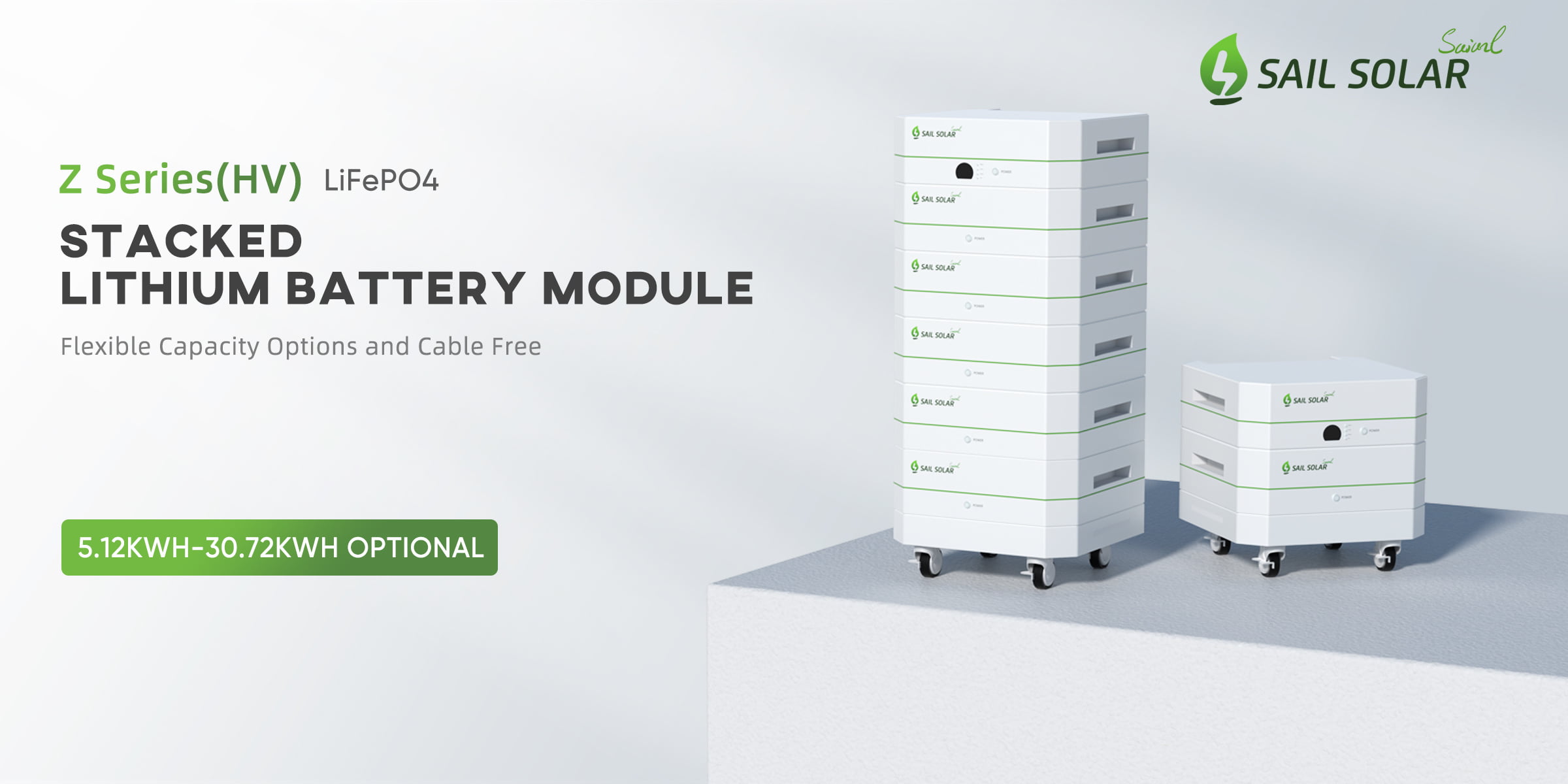

Sail Solar Stacked 51.2V High-voltage Mobile Storage Battery Pack
Sail Solar stackable lithium battery is suitable for both off-grid and Hybrid inverters with high compatible protocol matching. Satckable appearance design makes it more flexible and easy to install.
Payment :
T/T,L/C, Western UnionShipping Port :
Shanghai/ShenzhenWarranty :
10 YearsCertificate :
CE/IEC/UL/UN38.3/MSDSCommunication :
RS232/RS485/CAN/BLUEBOOTH/WIFIProtection :
IP50Order MOQ :
1Nominal Capacity :
5.12KWh/10.24KWh/15.36KWh/20.48KWh/25.60KWh/30.72KWhNominal Voltage :
51.2V/102.4V/153.6V/204.8V/256V/307.2VType :
Lithium-ion BatteryItem No. :
Z Series SASZ51(100-600)-HVSail Solar stackable lithium battery is suitable for both off-grid and Hybrid inverters with high compatible protocol matching. Satckable appearance design makes it more flexible and easy to install.
Specification
|
MODEL |
SASZ51100-HV |
SASZ51200-HV |
SASZ51300-HV |
SASZ51400-HV |
SASZ51500-HV |
SASZ51600-HV |
|
| Battery Type |
LiFePO4 |
||||||
|
Electrical Parameters (25°C) |
Rated Voltage |
51.2V |
102.4V |
153.6V |
204.8V |
256V |
307.2V |
|
Rated Capacity |
100Ah@25°C |
200Ah@25°C |
300Ah@25°C |
400Ah@25°C |
500Ah@25°C |
600Ah@25°C |
|
|
Energy |
5.12KWh |
10.24KWh |
15.36KWh |
20.48KWh |
25.6KWh |
30.72KWh |
|
|
Months Self Discharge |
<3% |
<3% |
<3% |
<3% |
<3% |
<3% |
|
|
Charge Efficiency |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
99.5%@0.2C |
|
|
Discharge Efficiency |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99%@1C |
96-99$%@1C |
|
|
Terminal Diameter |
M8 |
M8 |
M8 |
M8 |
M8 |
M8 |
|
| Internal Resistance(Fully Charged,25°C) |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
≤50mΩ |
|
| Cycle Life |
6000 Cycles@0.5C 80%D.O.D |
||||||
|
Capacity Affected by Temperature |
40°C |
101% |
|||||
|
25°C |
100% |
||||||
|
0°C |
90% |
||||||
|
-10°C |
75% |
||||||
| Nominal Operating Temperature |
25°C±3°C(77℉±5℉) |
||||||
|
Operating Temperature Range |
Discharge |
-20°C~60°C(-4℉~140℉) |
|||||
|
Charge |
0°C~45°C(32℉~113℉) |
||||||
|
Storage |
0°C~40°C(32℉~104℉) |
||||||
| Protection Grade |
IP50 |
||||||
| Charge Voltage |
56.8V |
||||||
| Standard Charge Mode(25°C±2°C,<75°CRH) |
0.2CA Constant Current to 57V,then Constant Voltage 57V ,until the Current Drops to 0.02cA,before Use, rest 30 Minutes |
||||||
| Charge Current |
20A |
20A |
20A |
20A |
20A |
20A |
|
| Continuous Discharge Current |
100A |
100A |
100A |
100A |
100A |
100A |
|
| Maximum Pulse Current |
200A(<1S) |
200A(<1S) |
200A(<1S) |
200A(<1S) |
200A(<1S) |
200A(<1S) |
|
| Discharge Cut Off Voltage |
44.8V |
||||||
| Protocol(Optional) |
RS232/RS485/CAN/BLUETOOTH/WIFI |
||||||
| SOC(Optional) |
Screen/LED/PC Software |
||||||
| Application Connection |
1 String 1 Parallel |
||||||
| Cells(Per Module) |
EVE 3.2V100Ah-16S1P |
||||||
| Safety&Certification |
CE/IEC/UL/UN38.3/MSDS |
||||||
| Size |
Length |
640±2mm(23.84 inch) |
|||||
|
Width |
400±2mm(14.9 inch) |
||||||
|
Height |
160±2mm(5.96 inch) |
||||||
|
Total Height |
314±2mm(11.69 inch) |
||||||
| Approx.Weight |
Battery |
52kg(114.64lbs)±2kg |
|||||
|
Controller |
20kg(44.09lbs)±2kg |
||||||
Application
Sail Solar High-Voltage Stackable Battery: Power That Grows With You
Engineered for superior performance, our high-voltage stackable lithium battery seamlessly integrates with most leading inverter brands. Each 5.12kWh modular unit features plug-and-play connectivity, allowing flexible expansion from single modules up to 30kWh systems to match your evolving energy needs.
Built with safety as a priority, every module incorporates both an independent BMS and physical breaker protection, delivering dual-layer security. Rated for 6,000 deep cycles, this system offers a long-term, cost-effective power solution for both home and business applications.
Sail Solar High Voltage Battery: Smarter Energy Storage
Engineered for modern homes and businesses, our high-voltage LiFePO4 battery delivers superior performance in a compact design. With modular capacity from 5kWh to 30kWh, you can easily customize your power supply to match your exact needs.
The high-voltage architecture provides enhanced safety and greater energy density compared to traditional low-voltage systems. Experience faster charging, more efficient operation, and reliable power during peak demand - all backed by LiFePO4's proven safety and longevity.
Certificate
Sail Solar battery delivers unmatched safety and durability. With multi-layer hardware and software protection, ISO 26262 functional safety design, and certifications including UL1973, IEC62619, and UN38.3, we bring automotive-level reliability to your home energy storage.
