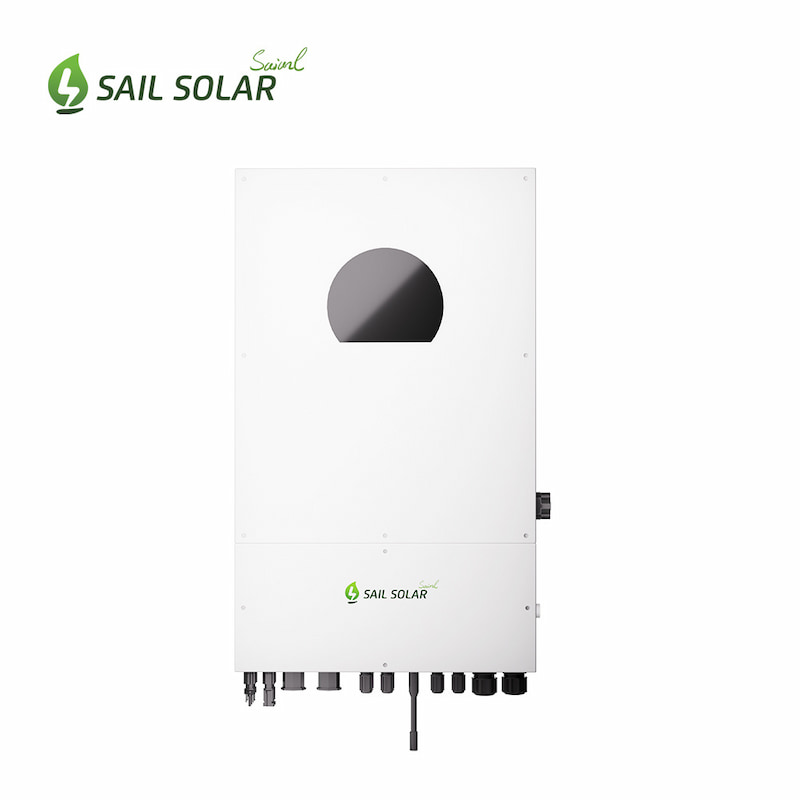

Split-phase Residential Hybrid 6Kw 120V/240V Solar Power Inverter With Wifi For Home
The SAIL SOLAR Helios-6KLV-US hybrid inverter extends battery life through communication with a battery management system (BMS), enhances reliability through grid integration, and maximizes solar energy utilization. Flexible to meet your energy needs, while optimizing cost savings and efficiency.
Item No :
Helios-6KLV-USParallel :
6 UnitsMonitoring :
WifiMax Power :
6000WOutput Voltage :
120V/240VWarranty :
5 YearsCommunication :
BMS (RS485)Protection :
IP65Order MOQ :
2Type :
Hybrid AC/DC InverterHelios-6KLV-US split phase hybrid inverter power management system features IP65 waterproof and dustproof design, supports multiple input & output options (Split Phase 208/240Vac or Single Phase 230Vac). It includes built-in AC coupling function and WiFi for mobile monitoring via an app, accepts a second input power source compatible with generators and offers optional external CT sensors for 100% self-consumption. In addition, it has a built-in communication port for BMS (RS485), allows user-adjustable charging current and voltage, and supports parallel operation up to 6 units.
Specification
|
MODEL |
Helios-6KLV-US
|
|
Maximum Pv Input Power |
7500 W
|
|
Rated Output Power |
6000VA/6000W
|
|
Maximum Charging Power |
6000 W
|
|
PV INPUT (DC)
|
|
|
Maximum DC Voltage
|
600 VDC
|
|
Start-up Voltage / Initial Feeding Voltage
|
120VDC / 160 VDC
|
|
MPP Voltage Range
|
120 VDC ~ 550 VDC
|
|
Number of MPP Trackers / Maximum Input Current
|
2 / 15A
|
|
GRID OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
110 VAC (P-N) / 220 VAC (P-P)
|
|
Output Voltage Range
|
97-132VAC(P-N) / 194VAC-264VAC(P-P)
|
|
Nominal Output Current
|
27.3 A per phase
|
| Power Factor |
0.9 lag to 0.9 lead |
|
AC INPUT
|
|
|
AC Start-up Voltage / Auto Restart Voltage
|
85VAC(P-N), 170VAC(P-P) / 90VAC(P-N), 180VAC(P-P)
|
|
Acceptable Input Voltage Range
|
85 - 140 VAC (P-N)/ 170 - 280 VAC (P-P)
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
Maximum AC Input Current
|
30 A per phase
|
|
BATTERY MODE OUTPUT (AC)
|
|
|
Nominal Output Voltage
|
110 VAC (P-N) / 220 VAC (P-P)
|
|
Efficiency (DC to AC)
|
91%
|
|
BATTERY & CHARGER
|
|
|
Nominal DC Voltage
|
42-62 VDC
|
|
Maximum Solar Charging Current
|
120 A
|
| Maximum AC Charging Current |
120 A |
| Maximum Charging Current |
120 A |
|
PHYSICAL
|
|
|
Size, D x W x H (mm)
|
215.5 x 515 x 700
|
|
Net Weight (kgs)
|
41
|
|
INTERFACE
|
|
|
Parallel Function
|
Parallel Function
|
| Communication Port |
RS232, RS485, WI-FI, USB
|
|
ENVIRONMENT
|
|
|
Protection Degree
|
IP 65
|
|
Operating Temperature
|
-25°C to 60°C (>45°C derating)
|

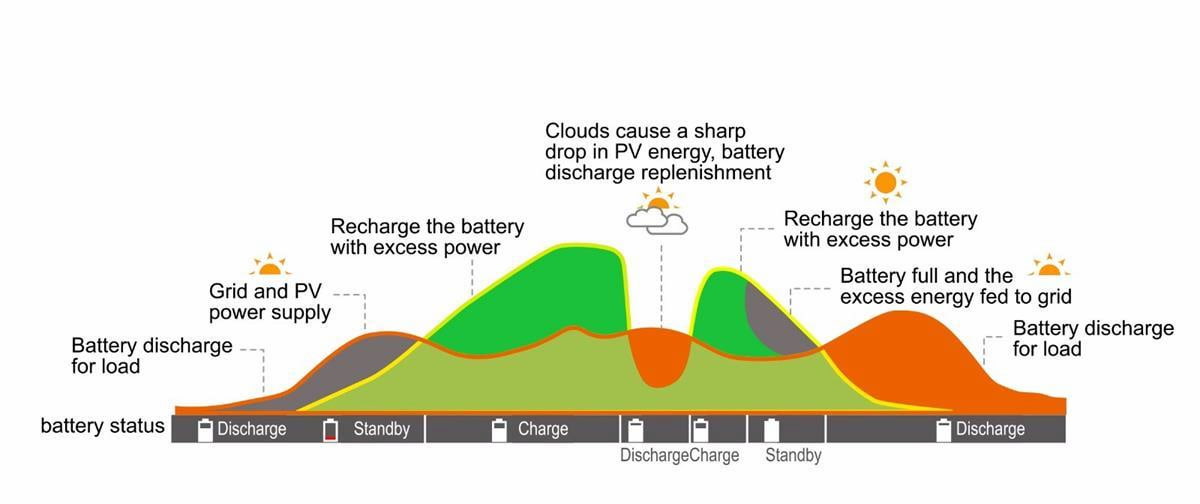

Helios-6KLV-US hybrid inverter offers a pure sine wave AC output of 120V. Tailor your energy usage with selectable priority modes, including solar priority for utilizing solar power first, solar and AC input for simultaneous charging, and solar only for exclusive solar charging. Load priority options allow you to optimize energy savings and ensure critical loads are powered in the most efficient way possible, adapting to solar priority, AC priority, or DC priority according to your specific needs.
Leverage intelligent power management features that allow you to prioritize how and when energy is stored or used. Whether maximizing solar energy use, ensuring battery longevity with BMS communication, or integrating with grid power for reliability, this inverter offers flexibility to meet your energy needs while optimizing cost savings and efficiency.

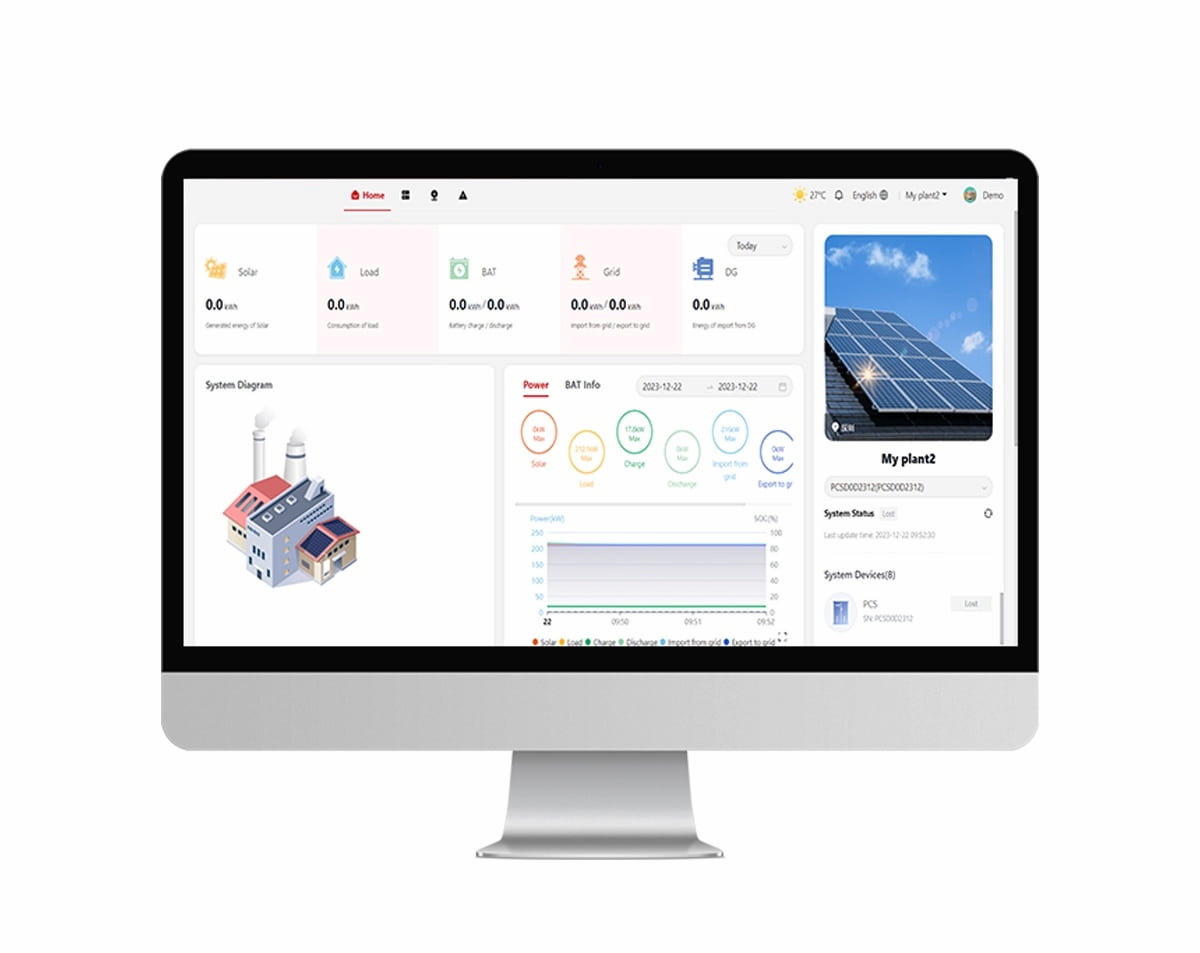

Equipped with a built-in WiFi module, this inverter enables remote monitoring and management through a mobile app. Access real-time information and control settings from anywhere with an internet connection, including device status, power usage, historical data, and receive alerts, ensuring your system operates at peak efficiency without the need to be on-site.
